We are sorry, but the QSC SC-444 4 × 15-inch 4-Way Cinema Screen Channel Loudspeaker System has been discontinued by the manufacturer and is no longer available. This page is retained for reference only.
Please call us at 833-965-3722 for assistance finding a replacement product.

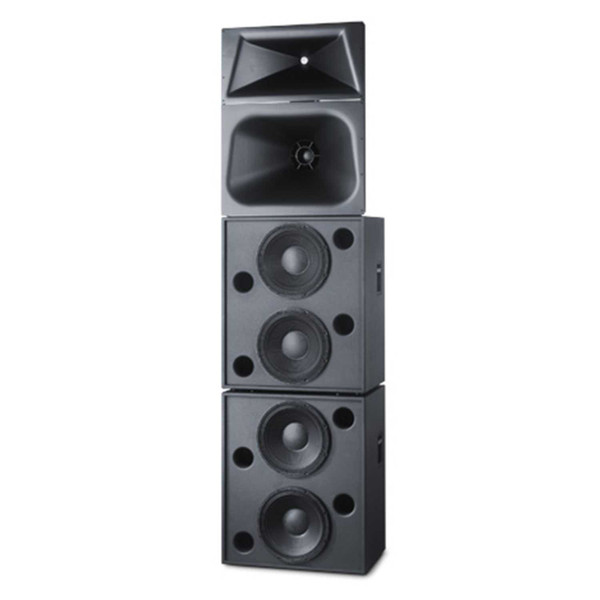

The QSC SC-444 4-Way Cinema Screen Channel Loudspeaker System is a four-way screen-channel system designed for professional cinema playback, with selectable tri-amp or quad-amp operation. The system comprises two LF-4215 dual 15-inch low-frequency enclosures and an MHV-1090 mid-high-very-high-frequency assembly.
The MHV-1090 features a horn-loaded 10-inch midrange cone driver and a coaxial neodymium compression driver for high- and very-high-frequency reproduction. Its driver-protection network and passive crossover support tri-amp operation, helping protect the high- and very-high-frequency drivers from damaging low-frequency signals.
The 10-inch midrange driver is designed to operate as low as 250 Hz, while its phase-plug design supports crossover to the high-frequency horn. The high-frequency diaphragm covers the range from approximately 1,800 to 7,000 Hz, while the very-high-frequency driver extends reproduction toward 22 kHz, according to the supplied product description.
The two LF-4215 enclosures are designed to provide the extended low-frequency response required for cinema applications. Their close-coupled woofer arrangement is intended to maintain broad coverage over a wider frequency range. The preassembled MHV-1090 assembly and mounting arrangement were designed to simplify installation.
QSC SC-444 Features
- Four-way cinema screen-channel loudspeaker system with selectable tri-amp or quad-amp operation.
- Two LF-4215 enclosures containing four 15-inch woofers in total.
- MHV-1090 assembly with a 10-inch horn-loaded midrange driver and coaxial neodymium HF/VHF compression driver.
- Low-distortion waveguides designed for clear, articulate dialogue reproduction.
- Heavily braced MDF construction for the LF-4215 enclosures.
- Approximately 20-inch enclosure depth to help facilitate installation.
- THX approval and RoHS compliance, as listed in the supplied product information.
QSC Certified Expertise
Knowledgeable Support for QSC Products
HDTV Supply has QSC Level 1 certified expertise. Our team has completed QSC Level 1 Training, demonstrating foundational knowledge of the QSC platform, including system design, hardware and software, programming, and troubleshooting.
This training helps us provide knowledgeable product guidance when customers are selecting and deploying Q-SYS solutions. When you purchase Q-SYS products from HDTV Supply, you are working with a team that understands the Q-SYS platform and can help you make informed product and system decisions.
Looking for a replacement? Call 833-965-3722 or visit HDTV Supply for help identifying an alternative for your cinema audio installation.
Ask a Question About the QSC SC-444
The QSC SC-444 has been discontinued. For questions about the archived specifications, existing installations, or replacement options, please contact our team.
Phone: 833-WOLFPACK (833-965-3722)
Website: HDTV Supply
QSC SC-444 Specifications
The following specifications are based on the supplied archived product information. Verify critical values against the original manufacturer documentation before system design or installation.
| Specification | Details |
|---|---|
| System Configuration | Four-way screen-channel system; selectable tri-amp or quad-amp operation |
| System Components | Two LF-4215 low-frequency enclosures and one MHV-1090 mid-high-very-high-frequency assembly |
| Horizontal Symmetry | Yes, as listed in the supplied data |
| Vertical Symmetry | Yes, as listed in the supplied data |
| Nominal Coverage | 90° horizontal × +20° to −30° vertical |
| Frequency Range (−6 dB) | 33 Hz–20 kHz, as listed in the supplied specifications |
| Active Crossover Frequencies | 250 Hz, 1,700 Hz, and 6,000 Hz; 24 dB per octave |
| Connectors | Barrier-strip screw terminals accepting up to #10 AWG stranded wire |
| LF-4215 Low-Frequency Enclosures (Pair) | |
| Impedance | 4 Ω per enclosure, as listed in the supplied data |
| Sensitivity | 102.5 dB (1 W/1 m, half-space), as listed for the pair |
| Maximum RMS Input Power | 800 W continuous for 8 hours using IEC 268 noise with a 6 dB crest factor, as listed in the supplied data |
| Recommended RMS Amplifier Power | 1,600 W maximum, as listed in the supplied data |
| Recommended Processing | Subsonic filter below 30 Hz, greater than 18 dB per octave |
| Transducers | Four 15-inch (381 mm) high-efficiency extended-bass woofers with 4-inch copper voice coils |
| Enclosure | Ported, heavily braced MDF construction; LF-4215 enclosure design |
| Dimensions (W × H × D) | 30 × 72 × 20.3 inches for the pair, as listed in the supplied data |
| Net Weight | 344 lb for the pair, as listed in the supplied data |
| MHV-1090 Mid-High-Very-High-Frequency Assembly | |
| MF/HF/VHF Impedance | 8 Ω, as listed in the supplied data |
| Tri-Amp MF Sensitivity | 105 dB (1 W/1 m, half-space) |
| Tri-Amp HF/VHF Sensitivity | 110 dB (1 W/1 m, half-space), as listed in the supplied data |
| MF Transducer | 10-inch high-efficiency, horn-loaded cone driver with phase plug |
| HF/VHF Transducer | Coaxial neodymium compression driver with 3.5-inch HF diaphragm and 1.75-inch VHF diaphragm |
| Tri-Amp MF Maximum RMS Input Power | 275 W continuous for 8 hours using IEC 268 noise with a 6 dB crest factor, as listed in the supplied data |
| Quad-Amp HF Maximum RMS Input Power | 150 W continuous for 8 hours using IEC 268 noise with a 6 dB crest factor, as listed in the supplied data |
| Tri-Amp MF Recommended RMS Amplifier Power | 800 W maximum, as listed in the supplied data |
| Recommended Processing | Fourth-order Linkwitz-Riley crossovers at 250 Hz, 1,700 Hz, and 6,000 Hz via QSC DCM/QSControl.net, as listed in the supplied data |
| Dimensions (H × W × D) | 39 × 30 × 20 inches, as listed in the supplied data |
| Net Weight | 84 lb, as listed in the supplied data |
| General | |
| System Weight | 428 lb, as listed in the supplied product data |
| Baffle Cut-Out | 111.6 × 32 inches, as listed in the supplied data; verify before installation |
| Regulatory Compliance | THX and RoHS, as listed in the supplied data |
Specification note: Some supplied values require verification. The listed 344 lb LF-4215 pair plus the 84 lb MHV-1090 assembly totals 428 lb, which matches the listed system weight. However, confirm whether the LF-4215 dimensions refer to the combined pair or an individual enclosure, and verify the baffle cut-out and amplifier power assignments against the original datasheet.
