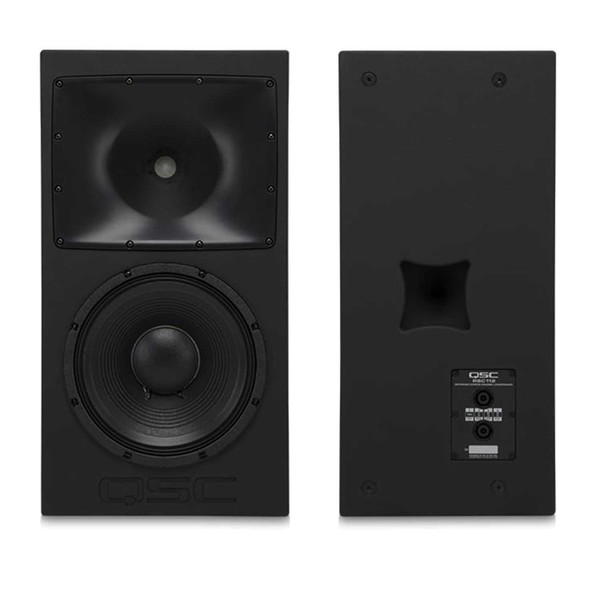

QSC RSC112 3-Way Screen Channel Loudspeaker, Tri-Amp
The QSC RSC112 3-Way Screen Channel Loudspeaker, Tri-Amp is part of the QSC Reference Monitor System, a high-performance, studio-quality loudspeaker system designed for critical mixing, monitoring, and presentation. Each RSC112 is designed to work with a matching RSB-212 dual-driver subwoofer and factory-specified signal processing and amplification to deliver high-quality cinema audio reproduction.
The RSC112 features a 12-inch (305 mm) woofer with a 4-inch (102 mm) voice coil for extended low-frequency reproduction. Its high-power neodymium coaxial compression driver incorporates a 3.5-inch (90 mm) mid-frequency voice coil and a 1.75-inch (44 mm) high-frequency voice coil to improve dynamic response, clarity, and transparency.
The annular mid-frequency diaphragm covers 1.2 kHz to 7 kHz, delivering a smooth, linear response. The high-frequency driver covers 7 kHz to 20 kHz and is designed to provide clear, detailed high-frequency reproduction.
Key Features
- Studio reference-quality, three-way screen channel loudspeaker.
- Part of the QSC Reference Monitor System, designed to work with the matching RSB-212 subwoofer, signal processing, and amplification.
- Optimized for installation behind a perforated cinema screen.
- Directivity Matched Transition (DMT) technology for consistent, coherent sound coverage.
- 90-degree axisymmetric horn coverage.
- 12-inch (305 mm) woofer with a 4-inch (102 mm) voice coil.
- Coaxial neodymium compression driver with 3.5-inch (90 mm) mid-frequency and 1.75-inch (44 mm) high-frequency voice coils.
- M10 threaded inserts for flexible installation options.
- NL8 Speakon connectors for audio connections.
- Compatible with the optional RBK-12 baffle wing kit.
QSC Certified Expertise
Knowledgeable Support for QSC Products
HDTV Supply has QSC Level 1 certified expertise. Our team has completed QSC Level 1 Training, demonstrating foundational knowledge of the QSC platform, including system design, hardware and software, programming, and troubleshooting.
This training helps us provide knowledgeable product guidance when customers are selecting and deploying Q-SYS solutions. When you purchase Q-SYS products from HDTV Supply, you are working with a team that understands the Q-SYS platform and can help you make informed product and system decisions.
Why Buy the QSC RSC112?
Build a high-performance cinema audio system with the QSC RSC112 three-way screen channel loudspeaker. Contact HDTV Supply for assistance with system compatibility, amplification, and installation requirements.
Ask a Question
Have questions about the QSC RSC112 3-Way Screen Channel Loudspeaker, Tri-Amp? Contact HDTV Supply for help with product specifications, system compatibility, amplifier requirements, and installation options.
Phone: 833-WOLFPACK (833-965-3722)
Email: customerservice@hdtvsupply.com
Website: HDTV Supply
QSC RSC112 Specifications
| Specification | Details |
|---|---|
| Acoustic Performance | |
| Rated Coverage Angle (-6 dB) | 90 degrees, axisymmetric |
| Frequency Range (-10 dB) | 55 Hz–20 kHz |
| Crossover Frequencies | 80–120 Hz, selectable; 1.2 kHz; 7 kHz, up to 48 dB/octave using dedicated Q-SYS DSP |
| Rated Noise Power / RMS Voltage | LF: 500 W / 63 V; MF: 80 W / 25 V; HF: 55 W / 20 V |
| Sensitivity | LF: 94 dB; MF: 107 dB; HF: 105 dB |
| Maximum Continuous SPL | LF: 121 dB; MF: 126 dB; HF: 122 dB |
| Maximum Peak SPL | LF: 127 dB; MF: 132 dB; HF: 128 dB |
| Rated Impedance | LF: 8 Ω; MF: 8 Ω; HF: 8 Ω |
| Recommended Amplifier Power | LF: 1,000 W; MF: 500 W; HF: 300 W |
| Transducers and Connections | |
| Low-Frequency Driver | 12-inch (305 mm) woofer with 4-inch (102 mm) voice coil |
| Mid/High-Frequency Driver | Coaxial neodymium compression driver with 3.5-inch (90 mm) MF voice coil and 1.75-inch (44 mm) HF voice coil |
| Input Connectors | Parallel NL8 Speakon connectors; listed pin assignments: 1/sub, 2/LF, 3/MF, 4/HF |
| Enclosure Material | 15-ply Baltic birch plywood |
| Physical Specifications | |
| Dimensions (H × W × D) | 28.5 × 15.1 × 13.5 in. (725 × 383 × 344 mm) |
| Net Weight | 66.4 lb (30.1 kg) |
| Included Accessories | None listed |
| Optional Accessories | RBK-12 baffle wing kit |
QSC RSC112 Frequently Asked Questions
The QSC RSC112 is a three-way screen channel loudspeaker designed for high-performance cinema audio and use as part of the QSC Reference Monitor System.
Yes. The RSC112 is optimized for screen channel applications, including installation behind a perforated cinema screen.
The RSC112 is a three-way design with low-, mid-, and high-frequency sections that require appropriate signal processing and amplification.
It features a 12-inch (305 mm) low-frequency woofer with a 4-inch (102 mm) voice coil.
The coaxial neodymium compression driver uses a 3.5-inch (90 mm) mid-frequency voice coil and a 1.75-inch (44 mm) high-frequency voice coil.
The listed frequency range is 55 Hz to 20 kHz at -10 dB.
The rated coverage angle is 90 degrees axisymmetric at -6 dB.
The supplied specifications list parallel NL8 Speakon connectors. Verify the pin assignments and cable configuration against the manufacturer's documentation before connecting the loudspeaker.
The supplied recommendations are 1,000 W for LF, 500 W for MF, and 300 W for HF. The loudspeaker requires suitable amplification and dedicated signal processing; confirm the complete system configuration with QSC documentation.
The supplied listing identifies no included accessories. M10 threaded inserts are provided for deployment options, and the RBK-12 baffle wing kit is listed as an optional accessory.
The RSC112 serves as a screen channel loudspeaker for reproducing cinema audio. It is designed to work within a compatible system with the appropriate subwoofer, amplification, and DSP configuration.
The supplied specifications reference dedicated Q-SYS DSP for crossover settings. Consult the manufacturer's system design guidance to determine the required processing and amplifier configuration.
Directivity Matched Transition (DMT) is a QSC design approach intended to provide a more consistent transition between frequency bands and improve the coherence of sound coverage across the listening area.
The listed dimensions are 28.5 × 15.1 × 13.5 inches (725 × 383 × 344 mm), and the net weight is 66.4 lb (30.1 kg).
Review the required LF, MF, and HF amplification, Q-SYS DSP configuration, NL8 wiring, and installation requirements. Contact HDTV Supply for assistance confirming compatibility with your cinema audio system.
