We are sorry, but the QSC SC-424 4-Way Screen Channel Loudspeaker, Tri- or Quad-Amp has been discontinued by the manufacturer and is no longer available. This page is retained for reference only.
Please call us at 833-965-3722 for assistance finding a replacement product.

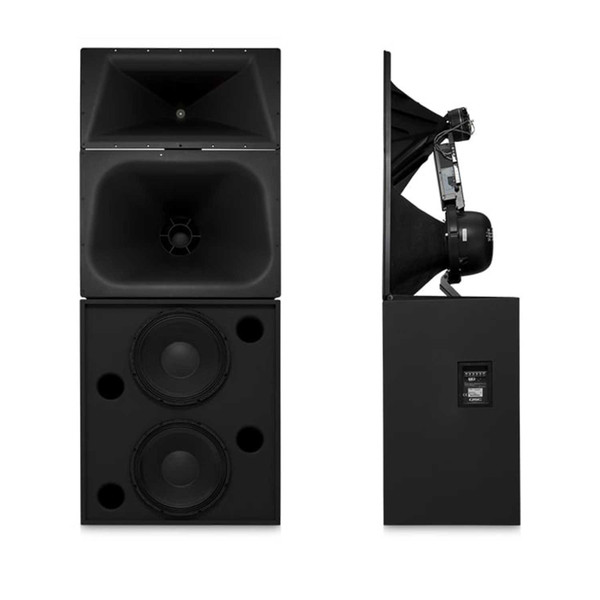

The QSC SC-424 4-Way Screen Channel Loudspeaker was developed for the demanding requirements of professional motion picture playback. Part of the QSC DCS Digital Cinema Speaker Series, this system supports selectable tri- or quad-amplified operation and consists of two main components: the MHV-1090 mid-high-very-high-frequency system and the LF-4215 low-frequency system.
The MHV-1090 features a horn-loaded 10-inch midrange driver and a coaxial neodymium high-frequency/very-high-frequency compression driver. It includes a driver protection network and a passive crossover for tri-amplified operation to help protect the high-frequency drivers from low-frequency signals.
The 10-inch midrange driver supports operation down to 250 Hz, while its phase-plug design allows crossover frequencies up to 1,700 Hz to the high-frequency horn. This design helps reproduce dialogue with clarity and intelligibility in cinema environments.
QSC SC-424 Features
- Four-Way Cinema Audio: Selectable tri- or quad-amplified screen-channel loudspeaker system.
- Advanced HF/VHF Driver: Coaxial compression-driver design intended to deliver extended high-frequency response, dynamic range, and reduced distortion.
- Reinforced Low-Frequency Enclosure: LF-4215 features heavily braced MDF construction.
- Clear Dialogue: Low-distortion waveguides support articulate dialogue reproduction.
- Installation-Friendly Design: The specified 20-inch enclosure depth helps accommodate cinema installation requirements.
QSC Certified Expertise
Knowledgeable Support for QSC Products
HDTV Supply has QSC Level 1 certified expertise. Our team has completed QSC Level 1 Training, demonstrating foundational knowledge of the QSC platform, including system design, hardware and software, programming, and troubleshooting.
This training helps us provide knowledgeable product guidance when customers are selecting and deploying Q-SYS solutions. When you purchase Q-SYS products from HDTV Supply, you are working with a team that understands the Q-SYS platform and can help you make informed product and system decisions.
Looking for an alternative? Contact HDTV Supply at 833-965-3722 for assistance finding a suitable cinema loudspeaker based on your system requirements.
Ask a Question About the QSC SC-424
The QSC SC-424 has been discontinued. Contact HDTV Supply for help identifying a replacement or for questions about the archived specifications on this page.
Phone: 833-WOLFPACK (833-965-3722)
Website: HDTV Supply
QSC SC-424 Specifications
Discontinued product — specifications are provided for reference only.
| Specification | SC-424 System | LF-4215 | MHV-1090 |
|---|---|---|---|
| Nominal Coverage | 90° horizontal × +20° to −30° vertical | ||
| Frequency Range (−6 dB) | 33 Hz–20 kHz | ||
| Active Crossover Frequencies | 250 Hz, 1,700 Hz, and 6,000 Hz; 24 dB/octave | ||
| Impedance | 4 Ω | MF: 8 Ω; HF: 8 Ω; VHF: 8 Ω | |
| Sensitivity (1 W/1 m, half space) | 99.5 dB | Tri-amp: MF 105 dB; HF/VHF 110 dB | Quad-amp: MF 105 dB; HF 110 dB; VHF 110 dB |
| Maximum Input Power | 800 W continuous, 8 hours, IEC 268 noise with 6 dB crest factor; 1,000 W continuous, 2 hours, AES pink noise with 6 dB crest factor | MF: 275 W continuous; HF/VHF: 200 W continuous | MF: 275 W continuous; HF: 100 W continuous; VHF: 100 W continuous |
| Recommended Amplifier Power | 1,600 W continuous maximum | MF: 800 W; HF: 500 W; VHF: 300 W continuous maximum | MF: 800 W; HF: 500 W; VHF: 300 W continuous maximum |
| Recommended Processing | Subsonic filter below 30 Hz, greater than 18 dB/octave | Fourth-order Linkwitz-Riley crossover at 250 Hz, 1,700 Hz, and 6,000 Hz using QSC processing | |
| Connectors | Barrier-strip screw terminals accepting up to #10 AWG stranded wire | ||
| Transducers | Two 15-inch (381 mm) high-efficiency extended-bass woofers with 4-inch copper voice coils | MF: 10-inch high-efficiency horn-loaded cone with phase plug; HF/VHF: coaxial neodymium compression driver with 3.5-inch HF diaphragm and 1.75-inch VHF diaphragm | |
| Enclosure | Quasi B4 alignment, ported; fully flared symmetrical ports; tuned to 36 Hz; heavily braced MDF; vandal-resistant woofer mounting bolts | Tilt/pan bracket; ±10° vertical tilt and ±10° horizontal pan | |
| Dimensions (H × W × D) | 36 × 30 × 20.3 in | 39 × 30 × 20 in | 39 × 30 × 20 in |
| Dimensions (H × W × D) | 762 × 910 × 516 mm, as supplied | 762 × 990 × 508 mm, as supplied | 762 × 990 × 508 mm, as supplied |
| Net Weight | 172 lb (78 kg) | 84 lb (38.5 kg) | 84 lb (38.5 kg) |
| System Weight | 256 lb (116 kg), as supplied | ||
| Baffle Cut-Out | 76 × 32 in, as supplied | ||
QSC SC-424 Manuals and Documentation
QSC SC-424 Specification Sheet (PDF)
This model is discontinued. Documentation links are provided for reference, subject to continued availability.
