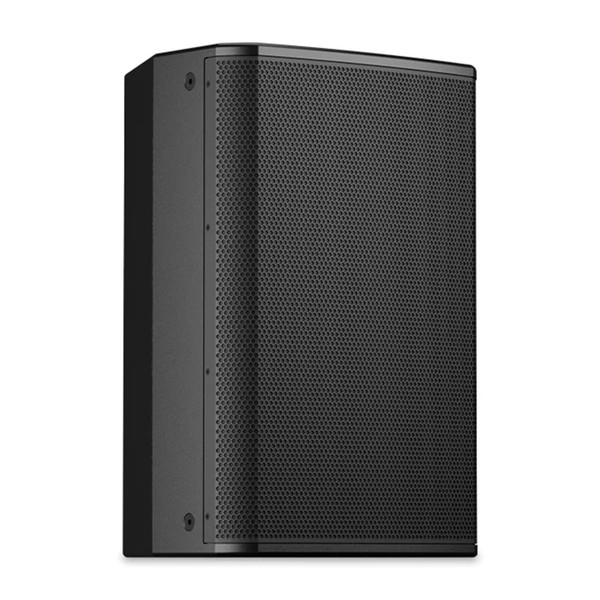

This QSC PL-CA12 Q-SYS 2-Way, Full-Range 12-Inch Coaxial Loudspeaker is a two-way, full-range 12-inch coaxial loudspeaker that offers wide, symmetrical coverage in a compact enclosure. It is ideal for applications when placed closer to the listener and/or where controlled coverage is not a requirement.
Deliver the right system for your customers: The PL-CA12 features a 12-inch transducer and a coaxial compression driver in a compact, bass-reflex enclosure, enabling high-performance audio across a broad range of applications that require wide symmetrical coverage. Pairing it with Q-SYS network amplifiers extends several benefits, from custom loudspeaker voicings and protection safeguards to advanced telemetry, helping to speed up deployment and deliver an optimal system operation experience.
Full control and monitoring for Entertainment: Deploy intuitive user control interface for any operator in the venue. Similarly, enlist Q-SYS Reflect to remotely monitor and enable system visibility, even allowing an offsite technician to identify and troubleshoot issues from any web browser.
Seamless Q-SYS experience: PL Series performance loudspeakers are part of a comprehensive Q-SYS system portfolio that delivers a holistic audio, video, and control experience for the entire venue.
QSC PL-CA12 Q-SYS 2-Way, Full-Range 12-Inch Coaxial Loudspeaker Features:
- 12-inch LF transducer + coaxial HF compression driver in a compact, bass-reflex enclosure
- Weatherized (IP54) wooden enclosure for indoor and protected outdoor environments
- Pairing with Q-SYS CX-Q 4ch network amplifiers enables custom voicings and filter sets for quicker deployment and better sonic performance
Why not buy this QSC PL-CA12 Q-SYS 2-Way, Full-Range 12-Inch Coaxial Loudspeaker today?
QSC PL-CA12 Q-SYS 2-Way, Full-Range 12-Inch Coaxial Loudspeaker Specifications:
| SPECIFICATIONS | PL-CA12 |
| Enclosure Configuration | Two-way, full-range coaxial loudspeaker in bass reflex enclosure |
| Tranducers | LF: 12 in (320 mm), 3 in (72.6 mm) voice coil, neodymium Coaxial HF: compression driver, 3 in (76.2 mm) voice coil |
| Coverage | 80° conical DMT |
| System Bandwidth (-10 dB with EQ) | 38 Hz -20 kHz (no subwoofer) |
| System Sensitivity | 102 dB 1W/1m |
| Max SPL* (continuous) | 119 dB (passive) 120.5 dB (bi-amp) |
| Connectors | 2x Speakon NL4 1x Euroblock: Solid wire 8 AWG, 4 poles |
| Recommended Amplifiers | CX-Q 8K4 (up to 2 per ch) CX-Q 4K4 (up to 1 per ch) |
| Enclosure Material: | Exterior plywood |
| Enclosure Color: | Black (RAL 9011) |
| Weatherization | IP54 External plywood Stainless screws Treated grille vs. UV and corrosion Hydrophobic stainless steel mesh behind grille Polyurea Paint Input cup (IP65) sealing with gland |
| Dimensions | 23.5 x 15.7 x 13.8 in (597 x 400 x 350.4 mm) |
| Weight | 44 lb (20 kg) |
| Optional Accessories (sold separately) | PL-CA12-YM horizontal yoke mount PL-CA12-LK link to suspend PL-CA12 with PL-SUB15 |
