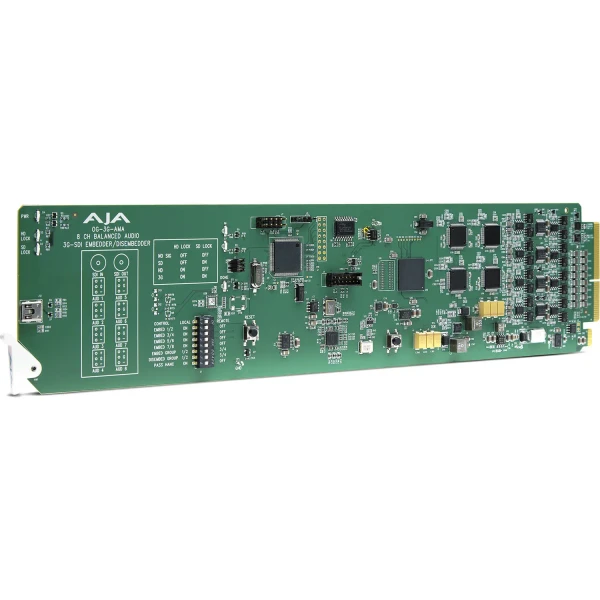

This AJA OG-3G-AMA openGear 3G-SDI Analog Audio Embedder/Disembedder supports 3G-SDI input and output up to 1080p60, and automatically detects and configures to the input video standard.
It uses 3-pin terminal block connectors that can be set to perform audio input or output functionality.
Analog audio levels and audio embedding/disembedding are selectable, with embedding/disembedding on a channel pair basis to pass 3G-SDI input audio or embed input analog audio from 3-pin terminal block connectors.
Designed for use in high density openGear 2RU frames including AJA’s OG-X-FR frame, new DashBoard software support on Windows, macOS and Linux offers remote control and monitoring of the openGear architecture and provides convenient and industry-standard configuration, monitoring and control options over a PC or local network.
READ MORE
AJA HDBNC-2RX-12G 12G/6G-SDI Dual Coax HD-BNC KUMO 6464-12G Receiver Module Features:
- openGear compatible card
- 3G-SDI Audio Embedder/Disembedder
- 8-Channel Balanced Analog Audio I/O
- 8x 3-Pin Terminal Block connectors (included)
- Supports HDR pass-through
- Controlled by DashBoard network control software and external DIP switch
- Compatible with OG-X-FR, OG-3-FR and DFR-8321 openGear frames
- Five year warranty
Why not buy this AJA OG-3G-AMA openGear 3G-SDI Analog Audio Embedder/Disembedder from HDTV Supply today?
AJA HDBNC-2RX-12G 12G/6G-SDI Dual Coax HD-BNC KUMO 6464-12G Receiver Module Specifications:
- Video Formats
- (2K) 2048x1080p
- (2K) 2048x1080PsF
- (HD) 1920x1080p
- (HD) 1920x1080PsF
- (HD) 1920x1080i
- (HD) 1280x720p
- (SD) 720x576i
- (SD) 720x480i
- RGB and YCbCr, 4:4:4/4:2:2, 10-bit
- Video Input Digital
- 1x 3G-SDI BNC, SMPTE-259/292/424
- Single Link SD/HD/2K
- Single Link 3G-SDI Level A, Level B (Dual Link or Dual Stream), SMPTE 425
- Video Input Formats
- 1x 3 Gb SDI (Level A or B)
- (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30
- (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30
- (HD) 1920x1080i 50, 59.94, 60
- (HD) 1280x720p 50, 59.94, 60
- 1x 1.5 Gb SDI
- (2K) 2048x1080p 23.98, 24, 25, 29.97, 30
- (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30
- (HD) 1920x1080p 23.98, 24, 25, 29.97, 30
- (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30
- (HD) 1920x1080i 50, 59.94, 60
- (HD) 1280x720p 50, 59.94, 60
- 1x 270 Mb SDI
- (SD) 625i 50
- (SD) 525i 59.94
- Video Output Digital
- 1x 3G-SDI BNC, SMPTE-259/292/424
- Single Link SD/HD/2K
- Single Link 3G-SDI Level A, Level B (Dual Link or Dual Stream), SMPTE 425
- Video Output Formats
- Video Out is a delayed, reclocked version of Video In at the same frame rate and format
- Video Out is undefined when no input is present
- Video Latency
- 3G Level A: 3.2 µsec
- 3G Level B: 6.1 µsec
- HD (1.5 Gb): 6.3 µsec
- SD (270 Mb): 17.2 µsec
- Audio Inputs and Outputs
- Audio Connectors
- 8x Analog Audio Connections (4 pairs total)
- Each pair configurable to Inputs or Outputs
- Digital Audio Converters
- 24-bit
- Embedded Audio
- SMPTE 272M (SD): 20-bit, 48 kHz synchronous
- SMPTE 299M (3G/HD): 24-bit, 48 kHz synchronous
- Incoming embedded audio can be passed, removed, or overridden
- Supports up to 16 audio channels (8 channels can be sourced from analog inputs)
- Audio Latency
- Embed Path Audio Latency: 1100 µsec
- Disembed Path Audio Latency: 1200 µsec
- Analog Audio Levels
- Configured via DashBoard software
- Pro 1: 0 dBfs = +24 dBu
- Pro 2: 0 dBfs = +18 dBu
- Pro 3: 0 dBfs = +15 dBu
- Consumer 1: 0 dBfs = +12 dBu
- User Interface
- External DIP switch
- openGear DashBoard network control software
- Compatible with Windows, macOS, and Linux
- Size
- openGear standard form factor, front slot and rear card
- Two slots required for each card
- Weight
- 0.5 lb (0.3 kg)
- Power
- openGear frame compatible
- 5.0 watts maximum per card
- Environment
- Safe Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Safe Storage Temperature (Power OFF): -40°C to 60°C (-40°F to 140°F)
- Operating Relative Humidity: 10% to 90% noncondensing
- Operating Altitude: < 3,000 meters (< 10,000 feet)
