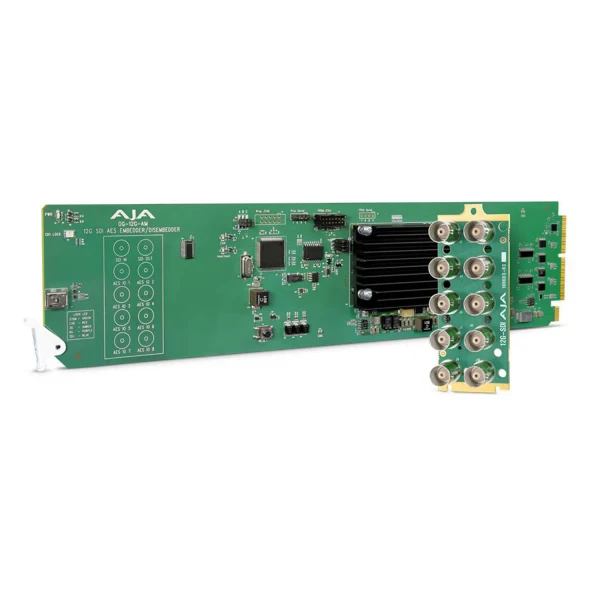

This AJA OG-12G-AM 16-Channel AES/EBU Audio Embedder/Disembedder is a 16-channel AES/EBU audio embedder/disembedder openGear card with support for 12G-SDI input and output up to 4K/UltraHD.
AES/EBU Audio embedding and disembedding is user selectable, on a channel pair basis, to either disembed 12G-SDI input audio or to embed input AES/EBU audio.
It uses BNC connectors that can be set to perform audio input or output functionality.
The OG-12G-AM automatically detects and configures the input video standard.
Designed for use in high density openGear 2RU frames, including AJA’s OG-X-FR frame. Ross DashBoard Software supports Windows, macOS, and Linux and provides convenient, configuration, monitoring, and control options for openGear cards and frames via a connected computer or over local network with DashBoard's web UI.
READ MORE
AJA HDBNC-2RX-12G 12G/6G-SDI Dual Coax HD-BNC KUMO 6464-12G Receiver Module Features:
- 12G-SDI 16-channel AES/EBU embedder/disembedder
- 12G-SDI Input and Output up to 4K/UltraHD
- 16-channel balanced AES/EBU audio embedder/disembedder
- AES/EBU audio embedding is user selectable on a channel pair basis, to either pass 12G-SDI input audio or embed input AES/EBU audio
- Selectable AES/EBU audio levels
- Supports HDR pass-through
- Automatically detects and configures the input video standard
- 1.5G-SDI Internal Signal Generator allows the embedder path to function without needing to connect a source to the SDI input
- Monitor and control with Ross DashBoard software
- 6 watts max per card
- Five year warranty
Why not buy this AJA OG-12G-AM 16-Channel AES/EBU Audio Embedder/Disembedder from HDTV Supply today?
AJA HDBNC-2RX-12G 12G/6G-SDI Dual Coax HD-BNC KUMO 6464-12G Receiver Module Specifications:
- Video Formats
- 4K (4096 x 2160p): 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
- UltraHD (3840 x 2160p): 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- 2K (2048 x 1080p): 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
- HD (1920 x 1080p): 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- HD (1920 x 1080i): 50, 59.94, 60
- HD (1280 x 720p): 50, 59.94, 60
- SD (625i): 50
- SD (525i): 59.94
- RGB and YCbCr, 4:4:4 / 4:2:2, 10-bit
- Note: Raster and frame rate dependent. Refer to OG-12G-AM Video Formats documentation.
- Video Input Digital
- 1x 12G-SDI BNC, SMPTE 259/292/424/2081/2082
- Single Link SD / HD / 2K / UltraHD / 4K
- Single Link 3G-SDI Level A, Level B (DL or DS), SMPTE 425
- Video Output Digital
- 1x 12G-SDI BNC, SMPTE 259/292/424/2081/2082
- Single Link SD / HD / 2K / UltraHD / 4K
- Single Link 3G-SDI Level A, Level B (DL or DS), SMPTE 425
- Video Path Delay
- Video Output is a delayed, reclocked version of Video Input at the same frame rate and format
- Video Output is undefined when no input signal is present
- Video Latency
- 12G-SDI: 4 μsec
- 6G-SDI: 4 μsec
- 3G-SDI Level A: 4 μsec
- 3G-SDI Level B: 8 μsec
- HD (1.5 Gb): 8 μsec
- SD (270 Mb): 22 μsec
- Audio Inputs and Outputs Digital
- AES PCM Audio via 8x BNC
- Up to 16 audio input channels
- Up to 16 audio output channels
- Selectable in channel pairs
- Audio Data Formats
- AES3-2003
- Embedded Audio
- SMPTE 272M (SD): 20-bit, 48 kHz synchronous
- SMPTE 299M (3G/HD): 24-bit, 48 kHz synchronous
- Incoming embedded audio can be passed, removed, or overridden
- Supports up to 16 embedded audio channels
- Note: 2048 x 1080p/PsF 29.97 and 30 formats support a maximum of 8 embedded audio channels.
- Embed Path Audio Latency
- 1500 μsec (Sample Rate Conversion ON)
- 400 μsec (Sample Rate Conversion OFF)
- Disembed Path Audio Latency
- 210 μsec
- User Interface
- openGear DashBoard network control software
- Compatible with Windows, macOS, and Linux
- Size (W x D x H)
- openGear standard form factor with front slot and rear card
- Requires two slots in the openGear frame
- Weight
- 0.5 lb (0.3 kg)
- Power
- openGear frame compatible
- 6W maximum per card
- Environment
- Safe Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Safe Storage Temperature (Power OFF): -40°C to 60°C (-40°F to 140°F)
- Operating Relative Humidity: 10% to 90% noncondensing
- Operating Altitude: < 3,000 meters (< 10,000 feet)
