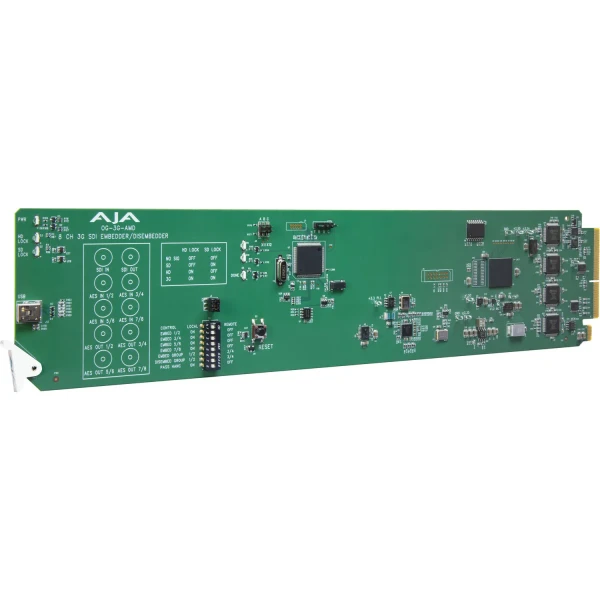

This AJA OG-3G-AMD openGear 3G-SDI 8-Channel 24-bit AES Embedder/Disembedder is a state of the art, openGear compatible, 8-channel AES audio embedder/disembedder with support for 3G-SDI input and output up to 1080p60.
Simple user controls allow channel enabling and mapping.
A 10x BNC rear openGear connector module is included.
Designed for use in high density openGear 2RU frames including AJA’s OG-X-FR frame, new DashBoard software support on Windows, macOS and Linux offers remote control and monitoring of the openGear architecture and provides convenient and industry standard configuration, monitoring and control options over a PC or local network.
READ MORE
AJA HDBNC-2RX-12G 12G/6G-SDI Dual Coax HD-BNC KUMO 6464-12G Receiver Module Features:
- Video Formats: 3G-SDI
- 3G-SDI Embedder / Disembedder in one board
- Input: 1x 3G-SDI BNC
- Outputs: 1x 3G-SDI BNC
- 4x AES BNC (2 channels per input)
- Supports HDR pass-through
- Local and Remote modes
- Incoming embedded audio passed, removed, or overridden
- Configure via openGear DashBoard, or DIP switch
- Power: 5.0 watts
- Hot swappable
- Compatible with OG-X-FR, OG-3-FR and DFR-8321 openGear frames
- Five year warranty
Why not buy this AJA OG-3G-AMD openGear 3G-SDI 8-Channel 24-bit AES Embedder/Disembedder from HDTV Supply today?
AJA HDBNC-2RX-12G 12G/6G-SDI Dual Coax HD-BNC KUMO 6464-12G Receiver Module Specifications:
- Video Formats
- 1x 3 Gb SDI (Level A or B)
- (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30
- (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30
- (HD) 1920x1080i 50, 59.94, 60
- (HD) 1280x720p 50, 59.94, 60
- 1x 1.5 Gb SDI
- (2K) 2048x1080p 23.98, 24, 25, 29.97, 30
- (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30
- (HD) 1920x1080p 23.98, 24, 25, 29.97, 30
- (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30
- (HD) 1920x1080i 50, 59.94, 60
- (HD) 1280x720p 50, 59.94, 60
- 1x 270 Mb SDI
- (SD) 625i
- (SD) 525i
- RGB and YCbCr, 4:4:4/4:2:2, 10-bit
- Video Input Digital
- 1x 3G-SDI BNC, SMPTE-259/292/424
- Single Link SD/HD/2K
- Single Link 3G-SDI Level A, Level B (Dual Link or Dual Stream), SMPTE 425
- Video Output Digital
- 1x 3G-SDI BNC, SMPTE-259/292/424
- Single Link SD/HD/2K
- Single Link 3G-SDI Level A, Level B (Dual Link or Dual Stream), SMPTE 425
- Audio Input Digital
- 4x BNC, AES3id
- Audio Output Digital
- 4x BNC, AES3id
- Audio Data Formats
- AES3-2003
- SMPTE ST 337
- Digital Audio Converters
- 24-bit
- Embedded Audio
- SDI embedded audio, 24-bit, 16-channel*
- SMPTE ST 272 (SD): 20-bit, 48 kHz synchronous
- SMPTE ST 299 (3G/HD): 24-bit, 48 kHz synchronous
- Incoming embedded audio can be passed, removed, or overridden
- *2048x1080p/PsF 29.97 and 30 formats support a maximum of 8 channels embedded audio.
- Embed Path Audio Latency
- (Time measured between audio input and video output connector)
- 1500 µsec (SRC ON)
- 400 µsec (SRC OFF)
- Disembed Path Audio Latency
- (Time measured between video input and audio output connector)
- 210 µsec
- User Interface
- openGear DashBoard network control software via Windows, macOS, or Linux
- External DIP switch
- Size (W x D x H)
- openGear standard form factor, front slot and rear card
- Two slots required for each card
- Weight
- 0.5 lb (0.3 kg)
- Power
- openGear frame compatible
- 5.0 watts max per card
- Environment
- Safe Operating Temperature: 0 to 40 C (32 to 104 F)
- Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
- Operating Relative Humidity: 10-90% noncondensing
- Operating Altitude: <3,000 meters (<10,000 feet)
