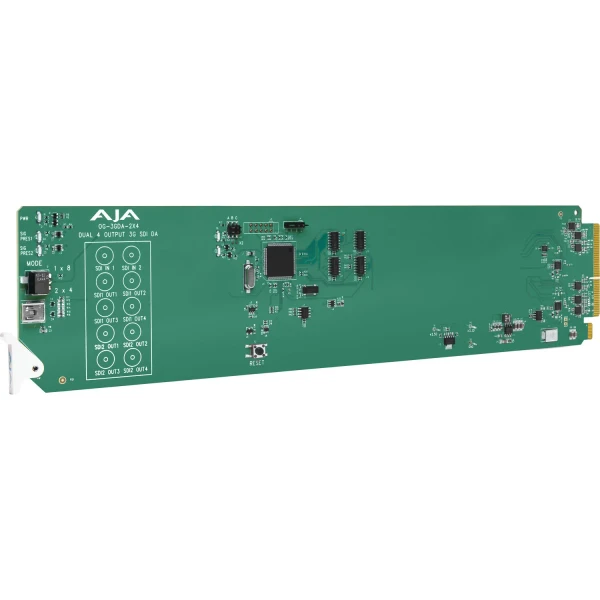

This AJA OG-3GDA-2X4 openGear 2x4 3G-SDI reclocking DA is an openGear compatible, state of the art 3G-SDI distribution amplifier.
The incoming 3G-SDI signals on the input channels are automatically equalized and the outputs are automatically reclocked to four 3G-SDI outputs each or alternatively can function as a 1x 8-channel DA, allowing the same signal to be sent to eight destinations simultaneously.
This dual input capability allows double the number of DAs in limited frame space. A 10x BNC rear connector module is included.
Designed for use in high density openGear 2RU frames including AJA’s OG-X-FR frame, DashBoard software support on Windows, macOS and Linux offers remote control and monitoring of the openGear architecture and provides convenient and industry standard configuration, monitoring and control options over a PC or local network.
AJA HDBNC-2RX-12G 12G/6G-SDI Dual Coax HD-BNC KUMO 6464-12G Receiver Module Features:
- Video Formats: 150 Mbps - 3 Gbps, format agnostic
- Input: 1x 3G-SDI BNC (1x8 mode); 2x 3G-SDI BNC (2x4 mode)
- Outputs: 8x 3G-SDI BNC
- 4 outputs noninverting (1x8 mode)
- 2 outputs noninverting (2x4 mode)
- Support for HDR – High Dynamic Range video
- Supports pass-through of SDI metadata, including HDR
- Monitor via openGear DashBoard
- Passes embedded audio, all ancillary data including closed caption and time code
- Input Present and Input SMPTE Lock LEDs
- Automatic input equalization and output reclocking
- 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
- Power: 2.6 watts max per card
- Hot swappable
- Compatible with OG-X-FR, OG-3-FR and DFR-8321 openGear frames
Why not buy this AJA OG-3GDA-2X4 openGear 2x4 3G-SDI reclocking DA from HDTV Supply today?
AJA HDBNC-2RX-12G 12G/6G-SDI Dual Coax HD-BNC KUMO 6464-12G Receiver Module Specifications:
- Video Formats
- 150 Mbps to 3 Gbps, format agnostic
- Video Input Digital
- 1x 3G-SDI BNC (1x8 mode), SMPTE-259/292/424
- 2x 3G-SDI BNC (2x4 mode), SMPTE-259/292/424
- Video Output Digital
- 8x 3G-SDI BNC, SMPTE-259/292/424
- 4x outputs noninverting (1x8 mode)
- 2x outputs noninverting for each DA (2x4 mode)
- Cable Equalization
- (Belden 1694A coax)
- 270 Mbps: up to 350m
- 1.5 Gbps: up to 200m
- 3 Gbps: up to 120m
- Reclocking
- 270 Mbps
- 1.483 Gbps
- 1.485 Gbps
- 2.966 Gbps
- 2.970 Gbps
- Auto Select
- All other rates are passed through and not reclocked
- User Controls
- openGear DashBoard network control software
- Compatible with Windows, macOS, and Linux
- Size (W x D x H)
- openGear standard form-factor with front slot and rear card
- Two slots required for each card
- Weight
- 0.5 lb (0.3 kg)
- Power
- openGear frame compatible
- 2.6 watts maximum per card
- Environment
- Safe Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Safe Storage Temperature (Power OFF): -40°C to 60°C (-40°F to 140°F)
- Operating Relative Humidity: 10% to 90% noncondensing
- Operating Altitude: < 3,000 meters (< 10,000 feet)
