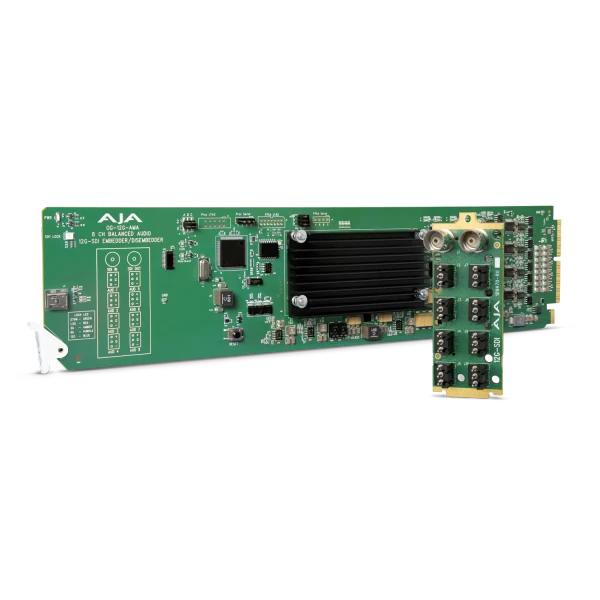

This AJA OG-12G-AMA 12G-SDI Analog Audio Embedder/Disembedder is an openGear 8-channel analog audio embedder/disembedder, that supports 12G-SDI input and output up to 4K/UltraHD, and automatically detects and configures to the input video standard.
It uses 3-pin terminal block connectors that can be set to perform audio input or output functionality.
Analog audio levels and audio embedding/disembedding are selectable, with embedding/disembedding on a channel pair basis to pass 12G-SDI input audio or embed input analog audio from 3-pin terminal block connectors.
Designed for use in high density openGear 2RU frames, including AJA’s OG-X-FR frame.
Ross DashBoard Software supports Windows, macOS, and Linux and provides convenient, configuration, monitoring, and control options for openGear cards and frames via a connected computer or over local network with DashBoard's web UI.
AJA HDBNC-2RX-12G 12G/6G-SDI Dual Coax HD-BNC KUMO 6464-12G Receiver Module Features:
- 12G-SDI analog audio embedder/disembedder
- 8-channel balanced analog audio I/O
- 8x 3-Pin Terminal Block connectors (included)
- Supports HDR pass-through
- Compatible with OG-X-FR, OG-3-FR and DFR-8321 openGear frames
- Monitor and control with Ross DashBoard software
- 8 watts max per card
- Five year warranty
Why not buy this AJA OG-12G-AMA 12G-SDI Analog Audio Embedder/Disembedder from HDTV Supply today?
AJA HDBNC-2RX-12G 12G/6G-SDI Dual Coax HD-BNC KUMO 6464-12G Receiver Module Specifications:
- Video Formats
- 4K (4096 x 2160p): 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
- UltraHD (3840 x 2160p): 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- 2K (2048 x 1080p): 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
- HD (1920 x 1080p): 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- HD (1920 x 1080i): 50, 59.94, 60
- HD (1280 x 720p): 50, 59.94, 60
- SD (625i): 50
- SD (525i): 59.94
- RGB and YCbCr, 4:4:4 / 4:2:2, 10-bit
- Note: Raster and frame rate dependent. Refer to OG-12G-AMA Video Formats documentation.
- Video Input Digital
- 1x 12G-SDI BNC, SMPTE 259/292/424/2081/2082
- Single Link SD / HD / 2K / UltraHD / 4K
- Single Link 3G-SDI Level A, Level B (DL or DS), SMPTE 425
- Video Output Digital
- 1x 12G-SDI BNC, SMPTE 259/292/424/2081/2082
- Single Link SD / HD / 2K / UltraHD / 4K
- Single Link 3G-SDI Level A, Level B (DL or DS), SMPTE 425
- Video Path Delay
- Video Output is a delayed, reclocked version of Video Input at the same frame rate and format
- Video Output is undefined when no input signal is present
- Video Latency
- 12G-SDI: 4 μsec
- 6G-SDI: 4 μsec
- 3G-SDI Level A: 4 μsec
- 3G-SDI Level B: 8 μsec
- HD (1.5 Gb): 8 μsec
- SD (270 Mb): 22 μsec
- Audio Inputs and Outputs
- 8 balanced analog audio connections (4 pairs total)
- Each audio pair configurable as Input or Output
- Audio Converters
- 24-bit Analog-to-Digital (A/D)
- 24-bit Digital-to-Analog (D/A)
- Embedded Audio
- SMPTE 272M (SD): 20-bit, 48 kHz synchronous
- SMPTE 299M (12G/6G/3G/1.5G): 24-bit, 48 kHz synchronous
- Incoming embedded audio can be passed, removed, or overridden
- Supports up to 16 embedded audio channels
- Note: 2048 x 1080p/PsF 29.97 and 30 formats support a maximum of 8 embedded audio channels.
- Path Audio Latency
- Embed Path: 1100 μsec
- Disembed Path: 1200 μsec
- Analog Audio Levels
- Configurable using Mini-Config software
- Pro 1: 0 dBFS = +24 dBu
- Pro 2: 0 dBFS = +18 dBu
- Pro 3: 0 dBFS = +15 dBu
- Consumer 1: 0 dBFS = +12 dBu
- User Interface
- openGear DashBoard network control software
- Compatible with Windows, macOS, and Linux
- Size (W x D x H)
- openGear standard form factor with front slot and rear card
- Requires two slots in the openGear frame
- Weight
- 0.5 lb (0.3 kg)
- Power
- openGear frame compatible
- 8W maximum per card
- Environment
- Safe Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Safe Storage Temperature (Power OFF): -40°C to 60°C (-40°F to 140°F)
- Operating Relative Humidity: 10% to 90% noncondensing
- Operating Altitude: < 3,000 meters (< 10,000 feet)
