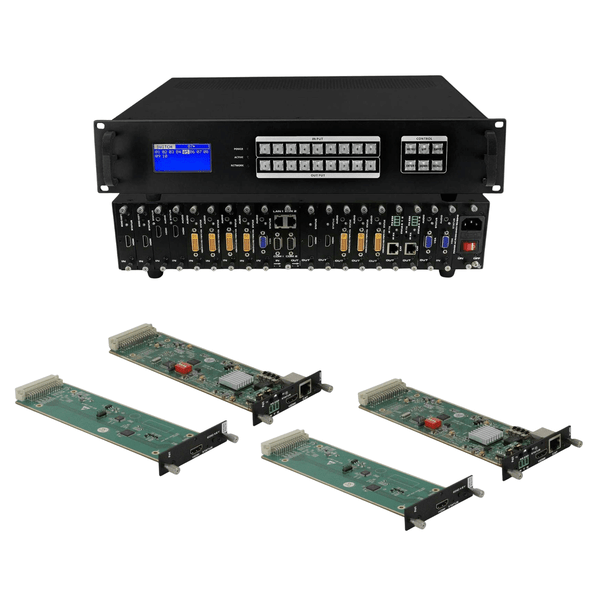

Small 4K 9x9 HDMI Matrix Switcher Chassis

Uses 1-Port 4K HDMI slide-in cards

iPad, Android, WEB GUI, RS232 & Front Control

4K HDBaseT to CAT6 In & Out Baluns w/POC

40-Preset Scene Settings

Crestron, URC, Elan, RTI & Control4 Drivers

Optional DirecTV Controller

10-Button Keypad for Remote Operation

Part # MM9x9CH
Usually ships in 3-4 business days
Today's Price: $850.00
4K HDMI Inputs:
4K HDMI Outputs:
4K HDMI Out Card with 2-4K HDMI Outputs:
4K HDMI Inputs w/Separate Audio Out:
4K HDMI Outputs w/Separate Audio Out:
1080p to 220' & 4K to 110' Transmitters & Cards:
1080p to 220' & 4K to 110' Receivers & Cards:
1080p to 330' & 4K to 175' Transmitters & Cards:
1080p to 330' & 4K to 175' Receivers & Cards:
1080p to 220' & 4K to 110' HDMI Balun Sets:
Universal Inputs w/separate analog audio:
Universal Outputs w/separate analog audio:
DirecTV Sports Bar iPad Control:
Replace DirecTV Receivers w/Cable Boxes:
Turn TVs ON & OFF @ Once With Your iPad:
10-Button KeyPad extension to 150' w/CAT5:
Ask Our WolfPack Experts

Features

WolfPack HDMI Switchers HDTV Supplys WolfPack™ Modular 4K/30 9x9 HDMI Matrix Switchers is integrated HDMI video and HDMI audio modular HDMI matrix switcher. The chassis back plane allows various technologies to be converted and switched eliminating external converters and it allows any input to be routed to any output, or the same input to be routed to all outputs, or any combination with multiple technologies.

The core of the 4K/30 9x9 HDMI Matrix Switcher consist of a 9x9 Modular Matrix chassis (2U) and its highly configurable backplane that supports up to 9 input cards and up to 9 output cards. It is also 4K at 30 Hz compliant. You can control the switch via its IOS or Android app, 2-button fast switch from the front buttons, a WEB GUI control or the RS-232 serial port. These matrix systems have 18+ ways to control them. They also have Optional RTI, URC, Elan & 2-Way Control4 Drivers.

The heart of the Modular HDMI Matrix Routers are the WolfPack chassis backplane which allows customization of the configuration for input and output cards to match every need of the system and application. The matrix support hot-plugs and you can change the cards while the equipment are still working. By having 1-port slide in cards the matrix is very reliable as in the unlikely even there is a loss of signal you just replace the card with a spare you have purchased or order another from us. The complete matrix doesn't have to be sent to us for a repair.

HDTV Supplys implementation of the HDBaseT technology and this product adds virtually zero latency to the HDMI audio and video signal, less than 7 microseconds (0.000007 sec) over 220 feet of CATx cable. At 100 feet you are talking about 3 microseconds (0.000003 sec). This means for example, in a church or auditorium, the speakers lips are always in synch with the video image on all the TVs and projectors 100's of feet away.

Reasons that sets our WolfPack™ 4K/30 HDMI Modular Matrix Switchers apart from others:

  1. 4K/30 HDMI 1.4 cards for the best picture
  2. Uses the best 4K/30 HDBaseT HDMI to CATx extenders with POC (Power Over Cable), not cheap H.264 with fuzzy compressed video
  3. 40 - Preset scenes that can be Saved and Recalled
  4. Closed Caption (CC) Pass-through
  5. Control via an iPad, Android, Web Browser, RS232 & Front Buttons
  6. Optional RTI, URC, Control4 & Elan Drivers
  7. Fast switching speed
  8. No latency
  9. 2-Year WolfPackCare Advance Replace Warranty
  10. Free Lifetime Telephone, CHAT, TEXT and Email Tech Support
  11. Other in & out cards available like VGA, DVI, Fiber, SDI, CVBS, YPbPr and Audio
  12. Optional low cost Video wall Processors

WolfPack™ 4K 4x8 HDMI Matrix Switch Configuration Example:

  • 1 - 4K/30 9-card in and 9-card out card cage
  • 4 - 1-port 4K/30 HDMI input cards = 4 HDMI inputs
  • 8 - 1-port 4K/30 HDMI output cards = 8 HDMI outputs
  • 5 - additional 4K input slots for future card expansion to 9-inputs
  • 1 - additional 4K output slot for future card expansion to 9-ouputs
The WolfPack Modular HDMI Matrix Routers manage many type of HDMI signals including HDBaseT CATx cabling. These Modular HDMI Matrix Routers support long haul transmission, maintains power reliability in the event of failure and offer the best flexible solutions for an AV system deployment. Our Modular HDMI Matrix Routers also can support high-resolution HDMI sources routed to HDMI displays, monitors, projectors, or audio receivers, etc. The EDID can be selected between seven different modes or copied from the attached displays.

These Modular HDMI Matrix Routers Feature:

  • 9 input and 9 outputs cards
  • Input Cards Supported:
    • 4K/30 HDMI
    • HDBaseT Transmitters to 220 and 330 feet with CAT5e/6/7 at 1080p with (POC) Power Over Ethernet
    • 4K HDBaseT Transmitters to 115 and 175 feet with CAT5e/6/7 at 4K/30 with (POC) Power Over Ethernet
  • Output Cards Supported:
    • 4K/30 HDMI
    • HDBaseT Receivers to support 220 feet and 330 feet feet with CAT5e/6/7 at 1080p with (POE) Power Over Ethernet
    • 4K HDBaseT receivers to 115 and 175 feet with CAT5e/6/7 at 4K/30 with (POE) Power Over Ethernet
  • HDCP 1.4 compliant
  • Input HDMI cable distance: ~25 feet AWG24 HDMI 2.0 high speed cables
  • Output HDMI cable distance: ~50 feet AWG24 HDMI 2.0 high speed cables
  • Advanced EDID management for rapid integration of sources and displays
  • Front-panel LCD display for status feedback
  • Front-panel push buttons for local switching
  • Changeable Backlit buttons provide custom labels
  • IP controlled via built-in web server and LAN
  • RS-232 Serial interface for remote control via an automation control system
  • Supports resolution exchanges with several resolutions can be chosen and used
  • Supports both HDBaseT signal inputs and outputs and the 1080p distance can up to 220 or 330 feet feet with only one Ethernet cable with (POE) Power Over Ethernet
  • Hot-pluggable
  • Uses a dual control system
  • Control via Web / RS232 and Front Buttons control (no remote control)
  • Rack-mountable
EDID Explained: The Modular HDMI Matrix Routers EDID provides for optimal source-to-screen performance. EDID will optimize the video card output for the capabilities of the end display. The EDID ghost unit enables the copying, emulating, cloning, and "learning" of EDID data from a display. Our EDID Emulator and repeater comes with predefined presets, user programmable banks, Sink EDID sniffing bank and more. Our EDID Emulator ensures proper operation, for the best performing HDMI audio and video signal between any source and display Resolves loss of video, intermittent (flashing) video, snow, or color-space (purple or red) issues.

HDTV Supply, Inc. is an HDBaseT.Org Approved Adopter of HDBaseT™ Products.

Why not design a 4K/30 9x9 HDMI Matrix Switcher?

Specs

Supports EDID Management: Ensure that even the most difficult display can receive audio and video with eight programmable memory presets loadable to any source connected to the matrix.

Modular HDMI Matrix Routers Specs:

  • Modular Configuration: 9 inputs and 9 outputs
  • Input cable distance: ~25 feet AWG24 HDMI 1.4 high speed cable
  • Output cable distance: ~50 feet AWG24 HDMI 1.4 high speed cable
  • Resolution support: 4K/30, 1080p/60, 1080p/30, 1080i, 720p, 480p, but cannot support 480i
  • Supported Input & Outputs Signals:
    • HDMI Port: Up to 4K at 30 Hz
    • CATx: HDBaseT technology to 1080p at 70/100m Extension (work with extenders) with (POC) Power Over Ethernet
  • Control: TCP/IP, RS232 and front buttons
  • Power Supply: 100 to 240VAC, 50-60Hz
  • Power Consumption: 50W to 70W
  • Operating Temperature: -10℃ to 50℃
  • Storage Temperature :-25℃ to 55℃

Why not design a 4K/30 9x9 HDMI Matrix Switcher?

Control

When one is designing an HDMI Matrix Switch the most important initial specification is the number of inputs and outputs you will need in your facility. The next, and often forgotten, is how the user wants to control those inputs and outputs. HDTV Supply has your back when you're buying one of our WolfPack Family of Modular Matrix Switchers as we have dozens of way to control the inputs and outputs and are shown at Controlling WolfPack Modular Matrix Systems, as well as below:
  1. Free iPad App (iOS)
  2. Free iPhone App (iOS)
  3. Free iPod App (iOS)
  4. Free Android Tablet App
  5. Free Android Phone App
  6. Free Samsung Galaxy Tablet App
  7. Free Samsung Galaxy Phone App
  8. Free Web GUI from any browser is standard
  9. Front panel push-buttons are standard
  10. Optional $100 7" Color Touch Screen on select models (Call)
  11. Dual RS232 ports are standard on select models
  12. Dual TCPIP ports are standard on select models
  13. DTVGame Sports Bar DirecTV™ Control System (Call)
  14. Allonis Sports Bar DirecTV™ Control System (Call)
  15. Free One-Way Control4 Drivers
  16. Optional $99 2-Way Control4 Drivers
  17. Optional $99 URC Drivers
  18. Optional $129 Crestron Drivers
  19. Optional $99 Elan Drivers
  20. Optional $99 RTI Drivers
  21. Optional Harmony Remote Control Codes for select models (Call)
For an up-to-date listing of all the methods to control our WolfPack Matrix Switchers go to Ways to Control Our WolfPack Family Of Modular Matrix Systems.
Software

DirecTV™ Controller

Sports Bar DirecTV™ Control System
Sports Bar DirecTV™ Control System
$1,850.00
Compatibility

HDTV Supply has successfully installed our WolfPack, WolfPackLite and our other HDMI Matrix Switchers in Sports Bars, Restaurants, Bowling Alleys, Fitness Centers, Malls, Places of Worship, Data Centers, Gaming Rooms, Nail Salons, County Clubs, Casinos, Factories, Conference Rooms, Schools, Home Theaters or many other installations requiring HDMI matrix switching. The reason, we are told by the users, is the number of features we offer compared to other companies they looked at.

These modular HDMI matrix switchers can usually be integrated with many third party control systems using the RS232 port on the back of the matrix.

For experienced AV hardware and software professionals who want to write their own drivers for 3rd party control systems from:

  • AMX™
  • Control4™
  • Creston™
  • RTI™
  • DTVGameControl™
  • Elan g!™
  • Media Switcher™
  • OnControls™
  • Savant™
  • SimpleControl™
  • SwitchItUp™
  • SAVI Control™
  • URC Control™
...we have created a simple and very easy to use RS232 script to write your own drivers.

EXAMPLE: If you want to switch input 8 to output 1, 8, the RS232 command would be 8x1&8&9. and notice the command has a period (.) at the end of the string. The matrix even replies "OK" when the right command is received and shows "ERR" when receiving a wrong command. Here is the RS232 User Manual if you want to write your own drivers.

How to use the info:

END USER: If you are an end user and want to have a whole-house control system from any of the above 3rd party control houses but your budget can't support the price you were quoted, do the following:
  1. Call us for a quote
  2. Once you get our quote call a 3rd party control reseller or installer in your area and tell them "Here is the hardware I want to use, please give me a quote on writing the software and installing all of the hardware at my location." You usually can save $1,000s on larger systems.
CAVEAT: We are not certified by any of the above 3rd party control systems companies nor have the necessary hardware to verify, troubleshoot and support the 3rd party writing of the code. We do warranty, though, that the RS232 script in the above RS232 Users Manual has and will work to control the matrix directly.

Also, CLICK HERE for our DirecTV™ & HDMI Matrix Control Software for Bars & Restaurants

Why not design a 4K/30 9x9 HDMI Matrix Switcher?

Reviews

Make Offer

Videos













Below is a video of the WolfPack 9x9 card cage model showing the fast switching speed and its features. The larger card cage models will operate exactly the same but will allow more input and output cards.








src="https://www.youtube.com/v/pJ8o3UotrIw?version=3&feature=player_detailpage" type="application/x-shockwave-flash" allowfullscreen="true" allowScriptAccess="always" width="640" height="360">








WEB GUI control multifunction buttons
Q/A

Q: What are the HDCP options?
A:
You can choose either to open or close the HDCP on the output card. A receiver that cannot support HDCP can also display the sources with HDCP.

Mix-n-Match combinations:

Non-HDCP source to a HDCP compliant TV

HDCP source to a non-HDCP compliant TV

Q: What is you test procedure?
A:
Our testing procedure is:
  1. Assembling: Production line self-testing (Basic Functions)
  2. Initial Testing: Includes every card, control software and front panel front buttons
  3. 24 Hours Aging: Gao Sheng Standard Aging Room
  4. Final testing: All Functions
  5. QC final Inspection: Sticker, serial number, etc
  6. Packing: Pack and ship


Q: What are the dimensions of the chassis?
A:
It is 9x9: 2U - 482 x 390 x 88mm - 18.97 x 15.35 x 3.46 inches (L/W/H)

Q: Do you have any tips in the unlikely event the unit fails?
A:
Turn it OFF and then disconnect the matrix from the AC power and all cables. Pull out each board from the rear and push back in. Plug all cables back in and turn it on.

Q: How is HDBaseT technology different than others?
A:
Unlike other HD distribution technologies, HDBaseT is the only technology which enables CAT5/6/7 connectivity from 70 meters to 100 meters, depending upon the specific product, for uncompressed full HD multimedia content and up to 100 watts of charging power via a single cable. HDBaseT is optimized for video applications and can connect all HDBaseT enabled home entertainment devices. Also, HDBaseT technology has the capacity to deliver double the resolution available today to future 2K and 4K formats. Other existing solutions also require a specific cable and/or a new proprietary connector while HDBaseT utilizes the existing Ethernet infrastructure. These WolfPack HDBaseT matrix systems have with (POC) Power Over Ethernet so you don't need AC adapters.

HDMI HDbaseT Extender Helpful Tips & Recommendations:

  • Keep cables away from any equipment with an electromagnetic wave, e.g., mobile phone, microwave, radio equipment, fluorescent lamp, high voltage power lines, etc.
  • CAT5/6 cables should not exceed 220 feet or (70m).
  • Please adhere to the TIA/EIA568B standards when terminating network cables in the field.
  • Shielded CAT5/6 with metal RJ-45 connectors are recommended to safeguard against random video flashes caused by electromagnetic interference (EMI).

Why not design a 4K/30 9x9 HDMI Matrix Switcher?

Warranty

HDTV Supply includes a 2 Year WolfPackCare™ Advance Replace Limited Warranty on this matrix system. The warranty states that the Modular HDMI Matrix Switcher will perform substantially in accordance with the accompanying written materials for a period of 2 years from the date of the receipt of the order & that the Modular Matrix Switcher will be free from defects in materials & workmanship under normal use.

Slide-in Boards & HDBaseT Extenders: If a board or extender goes bad in the first 2-years and HDTV Supplys Tech Support team verifys the problem after a telephone call, HDTV Supply will send a new or like-new unit usually within 24-hours by USPS Air Priority at HDTV Supplys expense. We will ask for a credit card for payment in case the bad devcie is not sent back to us within 5-business days. You will need to provide us the tracking number as we will to you and you will need to pay for the devices return.

Chassis or Power Supply: If the chassis or power supply goes bad and HDTV Supplys tech support team verifys it HDTV Supply will send a new or like-new chassis by UPS ground at HDTV Supplys expense. We will ask for a credit card for payment in case the bad chassis is not sent back to us within 5-business days. You will need to provide us the tracking number as we will to you and you will need to pay for the chassis return.

In order to get a warranty replacement for a defective item HDTV Supplys Support Team will verify the product is eligible for a warranty. An RMA number will then be issued. Shipped replacements will be in like new conditions, tested and all components included.

HDTV Supply also sells a 3 or 5 Year warranty for this product. Please call us for a quote.

Why not buy this Modular HDMI Matrix Switcher today?

Pictures

Build Your Own 4K HDMI Matrix Switcher, Splitter or Switcher using a 9x9 ChassisBuild Your Own 4K HDMI Matrix Switcher, Splitter or Switcher using a 9x9 ChassisBuild Your Own 4K HDMI Matrix Switcher, Splitter or Switcher using a 9x9 ChassisBuild Your Own 4K HDMI Matrix Switcher, Splitter or Switcher using a 9x9 ChassisBuild Your Own 4K HDMI Matrix Switcher, Splitter or Switcher using a 9x9 ChassisBuild Your Own 4K HDMI Matrix Switcher, Splitter or Switcher using a 9x9 ChassisBuild Your Own 4K HDMI Matrix Switcher, Splitter or Switcher using a 9x9 Chassis
Ask a Question

Questions & Answers


Ask a question about the Build Your Own 4K HDMI Matrix Switcher, Splitter or Switcher using a 9x9 Chassis or Call 833-WOLFPACK (833-965-3722)

Your email:
Your question:
FAQ

Frequently
Reasons To Buy an HDTV Supply WolfPack Product

OEM

This WolfPack product is part of HDTV Supplys WolfPack™ International OEM (Original Equipment Manufacturer) program that allows buyers who buy 5 or more products at once to get a discount larger then we already give.

What you get with our WolfPack International OEM Program:

  • 2-year extended warranty to your customer starting when you ship the device to them, not when we ship it to you, less options
  • Permission to modify a generic users manual to make your own
  • Permission to put your own logo on a generic matrix
  • Lifetime U.S. Telephone Tech Support to you
  • An additional discount when you pay for 5 plus shipping and take delivery immediately

How you can participate in the WolfPack International OEM Program:

  • You support the end user with our behind the scenes support to you
  • You will never sell on-line below the discounted price on this site
  • You have experience installing complex HDMI matrix systems
  • You have an AV website that we can review
  • You have a Tax Resale document you can send us
If you are interested, send us an email at support @ hdtvsupply . com on your company, the area you support and your experience. Based upon a successful review, we will send you the additional discounts you can get by taking 5 or more of this product at one time.

Why not design a 4K/30 9x9 HDMI Matrix Switcher?

Government

United States Governments SEWP program


This product may be eligible to be purchased through the United States Governments SEWP program, similar to their GSA program.

The NASA SEWP (Solutions for Enterprise-Wide Procurement) provides the latest in Information and Communications Technology (ICT) and Audio-Visual (AV) products and services for all Federal Agencies and their approved contractors.

If you are a government agency and want to see whether HDTV Supply has this product in the SEWP database go to our our SEWP Contract Holder RedHawk IT Solutions, LLC to allow you to maybe order this product from the United States Governments SEWP program. It is very easy to place your order, go to the link above and enter HDTV Supply and there you will see a list of part numbers of what we currently have. If you do not see it than give us a call at 833-WOLFPACK (833-965-3722) and we may be able to enter it.

RedHawk IT Solutions


Our SEWP Contract Holder RedHawk IT Solutions partner has the following credentials:
  • DUNS: 801957023
  • TIN: 260452583
  • CAGE: 4TBM6
Their SEWP Federal Contracts are:
  • SEWP Contract Number: NNG15SD38B
  • Group: Group B_SDVOSB
  • NAICS: 541519
and
  • SEWP Contract Number: NNG15SD88B
  • Group: Group C
  • NAICS: 541519
The SEWP Program Office manages a suite of government-wide IT products and services contracts that enable NASA and all Federal Agencies to achieve their missions and strategic initiatives by providing streamlined access to critical technologies and solutions. The Program provides best value for the Federal Government and American taxpayer through innovative procurement processes, premier customer service and outreach, acquisition insight, and partnership with Government entities and Industry.

For a complete listing of HDTV Supply products from us, or our other vendors, call 833-WOLFPACK (833-965-3722).

Build Your Own 4K HDMI Matrix Switcher, Splitter or Switcher using a 9x9 Chassis

Scroll Left & Right To See 20 Of Your Recently Viewed Items Below

Customer Reviews
100% Positive Feedback
HDTVSupply.com
