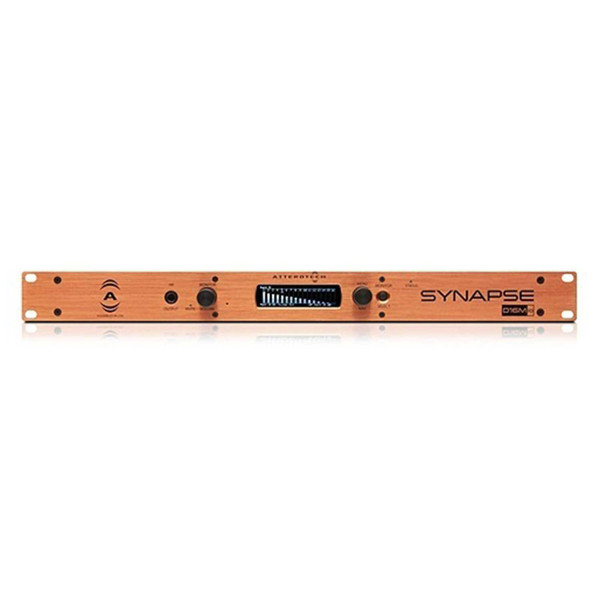

This QSC D16MIO Dante/AES67 Networked Audio Interface, Attero Tech is a high-performance networked audio interface supporting Dante with AES67 interoperability. The D16Mio features 16-Channels of studio grade microphone preamplifers, with up to 51 dB of digitally controlled gain in 3 dB steps. Each microphone input also supports +48 V switchable phantom power and a switchable pad for accommodation of professional line level inputs. The balanced line level outputs feature digitally controlled output attenuation from 0 to -100 dB.
QSC D16MIO Dante/AES67 Networked Audio Interface, Attero Tech Features:
- 16 Studio-grade mic preAs with line level capability
- Front panel or network control of mic preA gain, phantom power, mic/line input sensitivity
- 16 line level balanced outputs with front panel or network level control
- Q-SYS Extension allows for drag-and-drop integration into your Q-SYS design
Why not buy this QSC D16MIO Dante/AES67 Networked Audio Interface, Attero Tech today?
QSC D16MIO Dante/AES67 Networked Audio Interface, Attero Tech Specifications:
| Specification | Details |
|---|---|
| Mic/Line Inputs (16 Channels) | |
| Maximum input level | -43 dBu (max mic gain) +24 dBu (pad active – line mode) |
| Input impedance | 2k ? minimum (mic mode) 10k ? (line mode) |
| Input type | 3-pin depluggable terminal block |
| EIN | 125 dB @ max gain |
| Dynamic range | ≥105 dB (pad on) |
| THD+N | ≤0.005%, ≤0.015% (max gain) |
| Frequency response | 20 Hz to 20 kHz, +/- 0.5 dB |
| Analog Outputs (16 Channels) | |
| Maximum output level | +24 dBu |
| Output impedance | 200 Ω |
| Output type | 3.8 mm terminal blocks |
| Dynamic range | ≥110 dB |
| THD+N | ≤0.05% |
| Frequency response | 20 Hz to 20 kHz, +/- 0.5 dB |
| Headphone Output | |
| Connector | 1/4 in TRS jack |
| Controls | Mute / volume encoder |
| Load | 32 Ω minimum |
| Audio Networking | |
| Protocol support | Dante™ with AES67 support |
| Channel count | 16 Dante RX, 16 Dante TX |
| Modes | Switched or Redundant Mode |
| Latency | 0.250 ms minimum |
| Ports | 2 × Gb Copper (RJ-45), 2 × Gb SFP |
| Sample rates | 16/24-bit, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz |
| Environmental | |
| Power | 110 V–220 V AC input, optional external 24 VDC redundant supply |
| Power consumption | <20 W |
| General | |
| Dimensions (HWD) | 1 RU form factor 1.75 x 19 x 12.5 in (44.5 x 482.6 x 5080 mm) |
| Weight | 6 lb (2.72 kg) |
| Operating temperature | 0 to 40° C |
| Regulatory compliance | FCC 47CFR Parts 15B and 18 (Class A), EN 55011, ICES-003, CE (EN55032 Class A and EN55024 Class A) |
