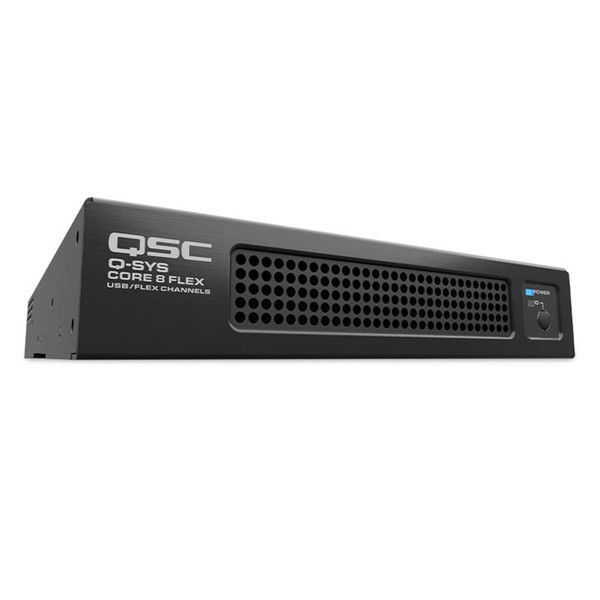

The QSC Q-SYS CORE 8 FLEX Q-SYS Network + Analog I/O Processor brings the Q-SYS Full Stack AV Platform to smaller installations in corporate, education, healthcare, and other professional environments. It combines networked audio processing, analog I/O, control capabilities, and conferencing connectivity in a compact form factor.
Built on the same Q-SYS operating system as the Core 110f, the CORE 8 FLEX is designed for applications requiring lower channel capacity and focused audio processing capabilities.
With onboard Flex channels, acoustic echo cancellation, network audio, USB audio bridging, and expandable Dante connectivity, the processor supports integrated AV system designs while minimizing hardware requirements.
QSC Q-SYS CORE 8 FLEX Q-SYS Network + Analog I/O Processor Features
- 64 × 64 networked audio channels supporting Q-LAN and AES67
- Eight onboard Flex audio I/O channels and GPIO connectivity
- Eight acoustic echo cancellation (AEC) processors
- Eight Dante channels in and out included, expandable to 32 × 32 with licensing
- USB AV bridging with 8 × 8 audio and Q-SYS camera support
- Q-SYS Control engine with optional feature license
- USB host support for compatible audio devices, including headsets and speakerphones
- Support for up to two VoIP instances
- Compact 1U, half-width design with mounting hardware included
QSC Certified Expertise
Knowledgeable Support for QSC Products
HDTV Supply has QSC Level 1 certified expertise. Our team has completed QSC Level 1 Training, demonstrating foundational knowledge of the QSC platform, including system design, hardware and software, programming, and troubleshooting.
This training helps us provide knowledgeable product guidance when customers are selecting and deploying Q-SYS solutions. When you purchase Q-SYS products from HDTV Supply, you are working with a team that understands the Q-SYS platform and can help you make informed product and system decisions.
Why Buy the QSC Q-SYS CORE 8 FLEX from HDTV Supply?
Choose HDTV Supply for professional AV equipment and knowledgeable product support. Contact our team for assistance with selecting a Q-SYS processor for your installation.
Ask a Question About the QSC Q-SYS CORE 8 FLEX
Have questions about compatibility, licensing, connectivity, or system design? Contact HDTV Supply for assistance with the QSC Q-SYS CORE 8 FLEX processor.
Phone: 833-WOLFPACK (833-965-3722)
Website: HDTV Supply
QSC Q-SYS CORE 8 FLEX Q-SYS Network + Analog I/O Processor Specifications
| Channel Capacity | |
| Total Network I/O Channels | 64 × 64 |
| Total Network I/O Streams | 32 × 32, as supplied |
| Dante Channels | 8 × 8 included; expandable to 32 × 32 with an optional license |
| Local Analog I/O Channels | Eight Flex channels |
| AEC Processors | 8 |
| VoIP Instances | Up to 2 |
| Audio Recording / Playback | 4-channel recording and 16-channel playback; expandable to 32 playback channels with an optional license, as supplied |
| Q-SYS NM-T1 Capacity | 3 base capacity; up to 6 with a Capacity Scaling License, as supplied |
| Network Peripherals | Up to 32 |
| Mic/Line Inputs | |
| Phantom Power | +48 VDC, 10 mA maximum per input |
| A/D-D/A Converters | 24-bit |
| Sample Rate | 48 kHz |
| Control | |
| RS-232 | 2 ports |
| GPIO | 8 × 8, as supplied |
| USB Inputs and Outputs | |
| USB Audio Channel Count | 8 × 8 |
| Bit Depth | 16-bit |
| Sample Rate | 48 kHz |
| USB Audio Device Hosting | Supports compatible standard USB headsets and speakerphones |
| Power and Environmental | |
| Power Consumption | 40 W typical |
| Physical | |
| Device Dimensions (H × W × D) | 1.72 × 8.66 × 11.28 inches (43.6 × 220 × 286.6 mm) |
| Weight | 4.0 lb (1.8 kg) |
