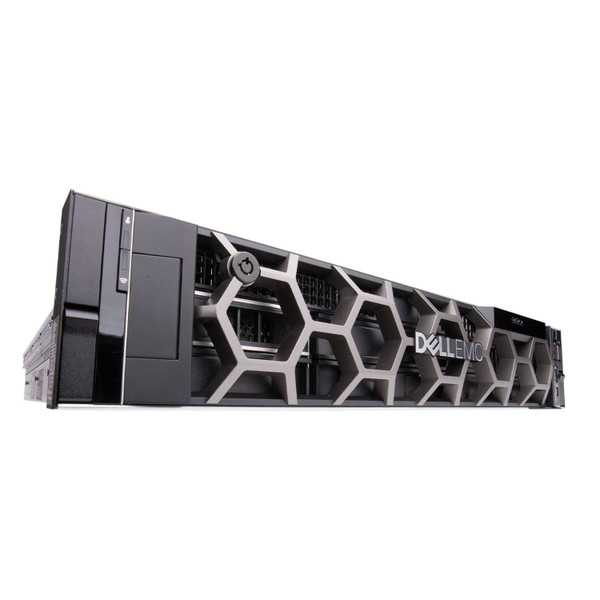

QSC CORE 5200 Q-SYS Network I/O COTS Processor Features

The QSC CORE 5200 Q-SYS Network I/O COTS Processor combines the Q-SYS OS with enterprise-grade Dell commercial off-the-shelf (COTS) server hardware to deliver a flexible, scalable audio, video, and control solution for large-scale AV installations. Its networked architecture lets you distribute audio I/O wherever it is most convenient for your system design.

High-capacity network audio: Supports up to 512 × 512 network audio channels using Q-LAN and AES67.
Acoustic echo cancellation: Provides 160 AEC processors for conferencing and communication applications.
Dante audio networking: Includes 8 × 8 Dante channels, with expansion available through optional licensing as supported.
Network microphone support: Supports up to 28 Q-SYS NM-T1 network microphones.
VoIP integration: Supports up to 64 VoIP softphone instances.
Media and WAN streaming: Supports up to 256 channels for media and WAN streaming.
Multitrack playback: Includes 16 playback channels, expandable with an optional feature license.
Dedicated network ports: Four Gigabit Ethernet ports provide two Q-SYS Multimedia and two Q-SYS Auxiliary connections.
Onboard media storage: Includes a 960 GB Q-SYS media drive.
IT monitoring: Features dedicated iDRAC management for integration with compatible IT monitoring systems.
Enterprise server hardware: Built on a Dell PowerEdge server platform with redundant, hot-plug power supplies.
Rack installation: Uses a 2RU chassis for professional equipment racks.

Q-SYS Level 1 Certified Expertise at HDTV Supply

QSC Certified Expertise

Knowledgeable Support for QSC Products

HDTV Supply has QSC Level 1 certified expertise. Our team has completed QSC Level 1 Training, demonstrating foundational knowledge of the QSC platform, including system design, hardware and software, programming, and troubleshooting.

This training helps us provide knowledgeable product guidance when customers are selecting and deploying Q-SYS solutions. When you purchase Q-SYS products from HDTV Supply, you are working with a team that understands the Q-SYS platform and can help you make informed product and system decisions.

Looking for a scalable processing solution for a large AV installation? Contact HDTV Supply for assistance selecting the right Q-SYS products for your application.

Ask a Question About the QSC CORE 5200

Need help with compatibility, system design, network audio, or licensing for the QSC CORE 5200 Q-SYS Network I/O COTS Processor? Contact our team for product assistance.

Phone: 833-WOLFPACK (833-965-3722)

Email: customerservice@hdtvsupply.com

Website: HDTV Supply

QSC CORE 5200 Q-SYS Network I/O COTS Processor Specifications

Hardware
Platform	Dell PowerEdge R740 (14th generation), as listed in the supplied specifications
Chassis / Drive Format	2.5-inch hard drive format
Power Supplies	Two hot-plug universal-input 750 W PSU modules
LCD	Single-line scrolling display
Ethernet	Four 1000 Mbps ports: two Q-SYS Multimedia ports and two Q-SYS Auxiliary ports
Management Interface	One dedicated 1000 Mbps iDRAC port; iDRAC v8 Enterprise license listed in supplied specifications
Video Ports	Two HD-15 VGA ports: one front-panel port and one rear-panel port
USB Ports	Two USB 2.0 host ports on the front panel and two USB 3.0 host ports on the rear panel
Serial Port	One rear-panel DB-9 RS-232 port, 16550-compliant
Media Drive	960 GB Q-SYS media drive (SATA SSD, as listed)
Controls and Indicators
Front Panel	Power button, ID button and indicator, and LCD navigation buttons
Identification Indicator	Front- and rear-panel ID indicators blink when enabled through Q-SYS Designer software
Q-SYS Processing Capacities
Network Audio Channels	512 × 512
AEC Processors	160
VoIP Softphone Instances	Up to 64
Dante Audio	8 × 8 included; expansion requires applicable optional licensing
NM-T1 Network Microphones	Up to 28, as listed in the supplied product information
Media / WAN Streaming	Up to 256 channels, as listed in the supplied product information
Multitrack Playback	16 channels included; supplied specifications list expansion to 32, 64, or 128 tracks
Packaging
Shipping Carton Dimensions	37 × 24 × 11 inches (940 × 610 × 280 mm), as listed in the supplied specifications

Note: Confirm the exact hardware revision, software capacity, and licensing requirements with QSC before final system design.

QSC CORE 5200 Manuals and Documentation

QSC CORE 5200 User Manual

QSC CORE 5200 Specification Sheet

Refer to the manufacturer's documentation for installation, configuration, network setup, operating requirements, and licensing information.

QSC CORE 5200 Frequently Asked Questions

1. What is the QSC CORE 5200?

The QSC CORE 5200 is a Q-SYS network I/O processor designed for large-scale audio, video, and control systems using networked AV infrastructure.

2. How many network audio channels does the CORE 5200 support?

The supplied product information lists 512 × 512 network audio channels using Q-LAN and AES67. Confirm the supported capacity for your software version and system configuration.

3. Does the CORE 5200 support acoustic echo cancellation?

Yes. The supplied specifications list 160 AEC processors for supported conferencing and audio-processing applications.

4. Does this processor support Dante?

The supplied information lists 8 × 8 Dante channels included, with additional capacity available through optional licensing. Verify the maximum supported Dante capacity and license compatibility with QSC.

5. How many VoIP softphone instances are supported?

The supplied product information lists support for up to 64 VoIP softphone instances. Confirm compatibility with your intended telephony deployment.

6. How much media storage is included?

The product information lists a 960 GB Q-SYS media drive. Available user storage may differ from the drive's nominal capacity.

7. How many NM-T1 network microphones can it support?

The supplied feature list states support for up to 28 Q-SYS NM-T1 network microphones. Confirm the applicable system design and capacity requirements before deployment.

8. How many multitrack playback channels are included?

The supplied information lists 16 playback channels included, with optional expansion. The exact expansion options should be verified against the applicable Q-SYS software and license.

9. What network connections are available?

The supplied hardware specifications list four 1000 Mbps Ethernet ports: two assigned to Q-SYS Multimedia and two to Q-SYS Auxiliary services. A separate dedicated iDRAC management port is also listed.

10. Is the CORE 5200 suitable for rack installation?

Yes. The supplied product description identifies a 2RU rack-mount form factor. Check the manufacturer's installation documentation for rack clearance, rail, cooling, and power requirements.

11. What is the QSC CORE 5200 used for in a professional AV system?

The QSC CORE 5200 is intended for centralized processing in large Q-SYS deployments that need networked audio, conferencing, media playback, VoIP, and system control capabilities.

12. Can the QSC CORE 5200 integrate with an existing Q-SYS system?

Integration depends on Q-SYS software compatibility, network configuration, connected devices, and available licenses. Review the applicable documentation and confirm compatibility before replacing or expanding an existing processor.

13. Does the CORE 5200 require additional licenses?

Some capabilities or expanded capacities may require optional licenses. Check the requirements for Dante expansion, multitrack playback, and any other licensed features in the intended configuration.

14. What should be checked before installing the QSC CORE 5200?

Confirm the server hardware revision, supported Q-SYS software, network topology, license requirements, rack space, cooling, power connections, and compatibility with all connected AV equipment.

15. Where can I get help choosing the QSC CORE 5200?

Contact HDTV Supply at 833-WOLFPACK (833-965-3722) or customerservice@hdtvsupply.com for product assistance and help identifying the information needed for your application.
