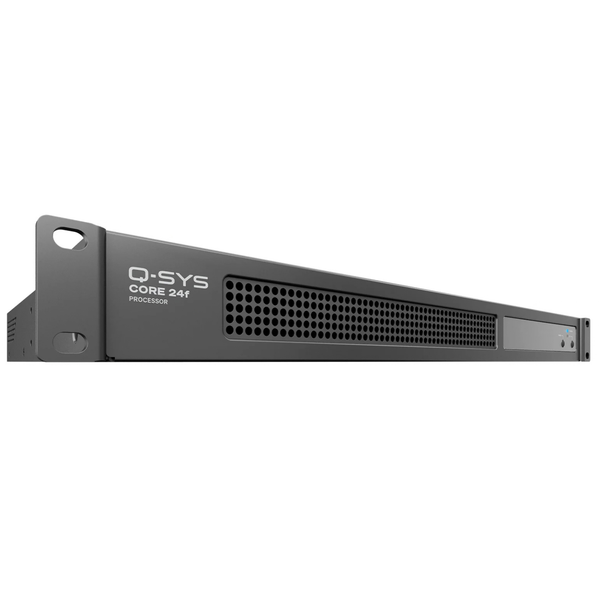

QSC Q-SYS Core 24f Network + Analog I/O Processor
- 160 x 160 Network I/O Processing
- 24-Channel Analog I/O with 8 Flex Channels
- Integrated USB-C AV Bridging
- 2.5 Gbps Network Connectivity
The QSC Q-SYS Core 24f is a powerful network and analog I/O processor designed to deliver integrated audio, video, and control for professional AV environments. With up to 160 x 160 network I/O channels and 24 onboard analog I/O channels, the Core 24f provides the processing and connectivity needed for demanding in-room applications.
The Core 24f combines Q-SYS processing with integrated control, GPIO, RS232, USB-C AV bridging, Dante connectivity, AEC processing, VoIP softphones, and multiple 2.5 Gbps Ethernet ports. It is well suited for corporate spaces, higher education, entertainment, hospitality, meeting rooms, conferencing systems, lecture halls, and divisible spaces.
QSC Certified Expertise
Knowledgeable Support for QSC Products
HDTV Supply has QSC Level 1 certified expertise. Our team has completed QSC Level 1 Training, demonstrating foundational knowledge of the QSC platform, including system design, hardware and software, programming, and troubleshooting.
This training helps us provide knowledgeable product guidance when customers are selecting and deploying Q-SYS solutions. When you purchase Q-SYS products from HDTV Supply, you are working with a team that understands the Q-SYS platform and can help you make informed product and system decisions.
Why not buy this QSC Q-SYS Core 24f Network + Analog I/O Processor today?
Build a scalable professional AV system with powerful Q-SYS processing, flexible analog I/O, network connectivity, control, and integrated USB-C AV bridging.
Ask a Question
Have questions about the QSC Q-SYS Core 24f, system compatibility, networking, I/O configuration, or installation? Our team is ready to help.
Contact HDTV Supply Customer Service
Why not buy this QSC Q-SYS Core 24f Network + Analog I/O Processor today?
Contact HDTV Supply for knowledgeable assistance with your Q-SYS processing and control solution.
Specifications
| Model | Core 24f |
| Product Type | Network + Analog I/O Processor |
| Processor | Intel 64-Bit Architecture |
| Audio Processing | 32-Bit Floating Point |
| Total Network I/O | 160 x 160 Channels |
| Total Network I/O Streams | 80 x 80 |
| Analog I/O | 24 Channels: 8 Mic/Line Inputs, 8 Line Outputs, 8 Flex Channels |
| Flex Channels | 8 Software-Definable Mic/Line Input or Line Output Channels |
| Dante | 8 x 8 Included; Up to 64 x 64 with Software Dante License |
| AEC | 24 Channels @ 200 ms |
| WAN / Media Streaming | 36 x 36 Channels |
| VoIP Softphones | Up to 8 |
| NM-T1 Capacity | Up to 10 Q-SYS NM-T1 Tabletop Microphones |
| Audio Recording | 4 Channels |
| Audio Playback | 16 Channels; Expandable up to 64 Channels with License |
| Media Drive | 128 GB |
| GPIO | 8 x 8 |
| RS232 | 2 Ports |
| Ethernet | 4 x 2.5 Gbps Ethernet Ports |
| Redundant Network Audio | 2 x 2.5 Gbps Ports for QLAN, AES67, VoIP, WAN, and Media Streaming |
| Auxiliary Ethernet | 2 x Independent 2.5 Gbps Ports |
| USB | 2 x USB-A, 1 x USB-C |
| AV Bridging | USB-C |
| USB-C Audio Bridging | 16 x 16, 16-Bit, 48 kHz |
| USB HID Routing | Via USB-C |
| Front Display | 2 x 20 Character OLED Display |
| Rack Form Factor | 1RU |
| Dimensions | 19.0 x 12.2 x 1.7 Inches (L x W x H) |
| Product Weight | 12.0 lbs |
| Shipping Weight | 12.3 lbs |
| Power Consumption | 60 W Typical / 150 W Maximum |
| Power Input | 100-240 VAC, 50/60 Hz |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +70°C |
| Humidity | 5% to 85% |
Why not buy this QSC Q-SYS Core 24f Network + Analog I/O Processor today?
Choose the Core 24f for powerful network processing, flexible analog I/O, integrated control, and scalable Q-SYS system capabilities.
Manuals
Q-SYS Core 24f Hardware User Manual
Official Q-SYS hardware user manual for the Core 24f processor. Document WA-001710-01.
Download the Q-SYS Core 24f User Manual
Q-SYS Core 24f Specification Sheet
Download the Core 24f Specification Sheet
Why not buy this QSC Q-SYS Core 24f Network + Analog I/O Processor today?
Review the official documentation and contact HDTV Supply if you need assistance configuring your Q-SYS system.
What is the QSC Q-SYS Core 24f?
A: The Core 24f is a Q-SYS network and analog I/O processor that combines audio processing, control, networking, and AV bridging in a 1RU chassis.
How many analog I/O channels does the Core 24f provide?
A: It provides 24 analog I/O channels consisting of 8 mic/line inputs, 8 line outputs, and 8 software-definable Flex channels.
How many network I/O channels does the Core 24f support?
A: The Core 24f supports up to 160 x 160 network I/O channels and 80 x 80 network I/O streams.
Does the Core 24f support Dante?
A: Yes. It includes 8 x 8 software-based Dante channels and can be licensed for up to 64 x 64 channels.
Does the Core 24f support acoustic echo cancellation?
A: Yes. The processor provides 24 AEC channels at 200 ms.
Does the Core 24f support USB-C AV bridging?
A: Yes. The Core 24f provides integrated AV bridging through its USB-C port, including USB audio and HID routing capabilities.
How many Ethernet ports does the Core 24f have?
A: It has four 2.5 Gbps Ethernet ports, including two ports for redundant networked audio and two independent auxiliary Ethernet ports.
Does the Core 24f have GPIO and RS232 control?
A: Yes. The Core 24f includes 8 x 8 GPIO and two RS232 control ports for integrating and controlling third-party devices.
How many Q-SYS NM-T1 microphones can the Core 24f support?
A: The Core 24f supports up to 10 Q-SYS NM-T1 tabletop microphones according to the current Q-SYS documentation.
How much rack space does the Core 24f require?
A: The Core 24f uses a compact 1RU rackmount form factor.
What is the Q-SYS Core 24f best used for?
A: The Core 24f is designed for in-room AV processing applications such as corporate spaces, higher education, hospitality, entertainment, meeting rooms, conferencing systems, lecture halls, and divisible spaces.
Can the Q-SYS Core 24f handle both analog and network audio?
A: Yes. The Core 24f combines 24 onboard analog I/O channels with up to 160 x 160 network I/O channels.
How does the Core 24f integrate with Q-SYS control?
A: Q-SYS Control is intrinsic to the Core 24f, allowing system designers to create control and automation experiences using the Q-SYS platform without requiring a separate dedicated control processor.
Can the Core 24f be used for conferencing applications?
A: Yes. Its AEC processing, VoIP softphones, USB-C AV bridging, network audio, GPIO, and control capabilities make it suitable for conferencing and meeting-room applications.
Why choose the Q-SYS Core 24f instead of a traditional DSP?
A: The Core 24f combines DSP processing with network audio, analog I/O, Dante, control, GPIO, RS232, VoIP, AEC, USB-C AV bridging, and Q-SYS system integration in a single scalable platform.
Why not buy this QSC Q-SYS Core 24f Network + Analog I/O Processor today?
Bring audio, video, control, and network processing together with the versatile Q-SYS Core 24f.
Warranty
The QSC Q-SYS Core 24f is covered by a 3-Year Limited Warranty, subject to the applicable Q-SYS/QSC warranty terms and conditions.
