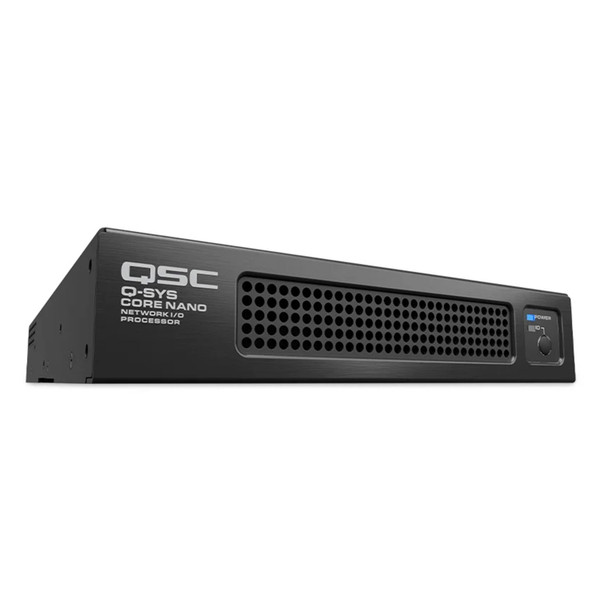

The QSC CORE NANO Q-SYS Network I/O Processor extends the Q-SYS Platform to smaller-scale installations across corporate, higher education, healthcare, and other professional environments. It delivers flexible audio processing, networked audio connectivity, and system control in a compact form factor.
Built on the same foundational technologies and Q-SYS OS as the broader Q-SYS processor portfolio, the CORE NANO is designed for applications requiring lower network channel capacity or targeted processing capabilities.
Right-size your processor and choose your I/O: The CORE NANO supports network-only installations and can be expanded with compatible Attero Tech Series I/O devices for additional analog audio connectivity.
Optional Q-SYS feature licenses and third-party plugins provide additional integration and audio processing capabilities, allowing system designers to tailor the processor to their specific application requirements.
Flexible audio connectivity: With Q-LAN, AES67, Dante capability, USB audio bridging, and support for USB audio devices, the CORE NANO can connect a range of audio sources and endpoints within a Q-SYS system.
Integrated control and communications: The processor supports Q-SYS control capabilities, RS-232 connections, and VoIP functionality for compatible system configurations.
QSC CORE NANO Features
- 64 × 64 networked audio channels supporting Q-LAN and AES67.
- Eight acoustic echo cancellation (AEC) processors.
- 8 × 8 Dante audio channels included, expandable to 32 × 32 with an optional license.
- USB AV bridging with 8 × 8 USB audio and support for Q-SYS cameras.
- Q-SYS control engine with optional feature licensing.
- USB audio device hosting for compatible headsets and speakerphones.
- Support for up to two VoIP instances.
- Compact 1U, half-width design with mounting hardware included.
QSC Certified Expertise
Knowledgeable Support for QSC Products
HDTV Supply has QSC Level 1 certified expertise. Our team has completed QSC Level 1 Training, demonstrating foundational knowledge of the QSC platform, including system design, hardware and software, programming, and troubleshooting.
This training helps us provide knowledgeable product guidance when customers are selecting and deploying Q-SYS solutions. When you purchase Q-SYS products from HDTV Supply, you are working with a team that understands the Q-SYS platform and can help you make informed product and system decisions.
Get the QSC CORE NANO for Your Q-SYS Installation
Build a flexible, compact audio processing and control system with the QSC CORE NANO. Contact HDTV Supply for help selecting compatible Q-SYS components and licensing options.
Call 833-WOLFPACK or visit HDTV Supply.
Ask a Question About the QSC CORE NANO
Have questions about audio channels, Dante licensing, USB audio, system control, or compatibility? Contact HDTV Supply for assistance.
Phone: 833-WOLFPACK
Website: HDTV Supply
QSC CORE NANO Specifications
| Channel Capacity | |
|---|---|
| Total Network I/O Channels | 64 × 64 |
| Total Network I/O Streams | 32 × 32 |
| Dante Channels | 8 × 8 included; expandable to 32 × 32 with an optional license |
| AEC Processors | 8 |
| VoIP Instances | Up to 2 |
| Audio Recording / Playback | 4-channel recording / 16-channel playback; expandable to 32 playback channels with an optional license |
| Q-SYS NM-T1 Capacity | 3 at base capacity; up to 6 with the Capacity Scaling License |
| Network Peripherals | Up to 32 |
| Control | |
| RS-232 | 2 ports |
| USB Inputs and Outputs | |
| USB Audio Channel Count | 8 × 8 |
| Bit Depth | 16-bit |
| Sample Rate | 48 kHz |
| USB Audio Device Hosting | Supports standard USB headsets and speakerphones |
| Environmental and Power | |
| Typical Power Consumption | 40 W |
| Physical | |
| Dimensions (H × W × D) | 1.72 × 8.66 × 11.28 in (43.6 × 220 × 286.6 mm) |
| Weight | 4.0 lb (1.8 kg) |
| Embedded Battery Chemistry | Lithium carbon monofluoride; non-accessible |
