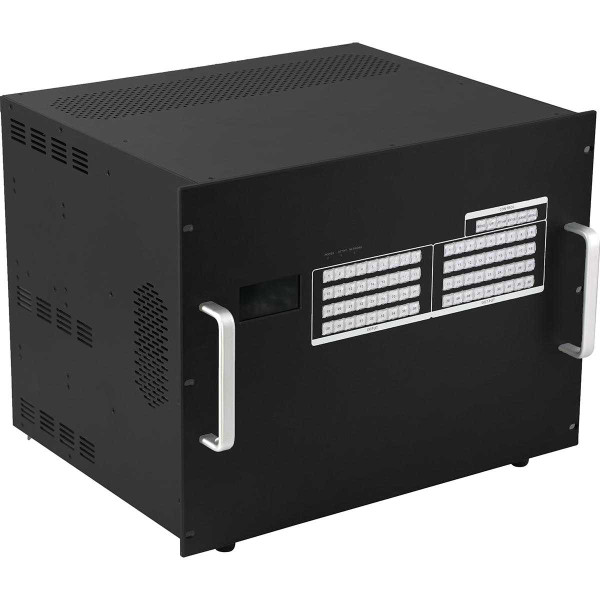

Create a custom HDMI matrix switcher tailored to your project requirements with our configurable 36x36 modular matrix switching system. This professional-grade platform allows you to build a matrix with up to 36 HDMI inputs and 36 HDBaseT outputs, providing flexible signal distribution for commercial AV installations, digital signage networks, control rooms, houses of worship, educational facilities, and corporate environments.

The system utilizes HDCP 2.3-compliant HDMI input cards and HDBaseT output cards with integrated video wall functionality. HDMI signals can be extended up to 220 feet over a single CAT6 cable while maintaining high-quality 1080p video performance.

IN & OUT CONTROL (ALL FREE): This HDMI Matrix Switch can control the Ins and Outs the following ways:

• Front Panel Control
• iPad or iPhone apps
• Android phone or Android tablet apps
• Samsung Galaxy phone or Galaxy tablet apps
• WEB GUI
• IR Remote Control aimed at the front panel
• Windows Software
• Dual RS-232 and
• Dual TCP/IP control

 You can control the matrix switch via its IOS or Android Apps, front panel control, a WEB GUI control, remote control or the RS-232 serial port.

NOTE: The above control sends any input, to any output, in any combination on a tablet. If you want to, say, change the channels on a cable box or DirecTV receiver, see our WolfPad TV Control Systems.

Reasons that set our WolfPack 36x36 HDMI Matrix Switcher apart from others:

1. Modular 36x36 matrix architecture
2. Supports up to 36 HDMI inputs and 36 HDBaseT outputs
3. Full 1080p HD video support
4. Built-in Video Wall Processor
5. Fast 80ms Switching & 80ms No Latency
6. Resolution Scaling on all Out Cards
7. Separate Audio on all Cards
8. HDMI Quad-View Card (4-Pics on 1-Display)
9. HDCP 2.3 compliant HDMI input cards
10. HDBaseT output cards with integrated video wall functionality
11. Signal extension up to 220 feet over CAT6 cable
12. Uses single-port HDBaseT cards
13. Control via an iPad, Android, Web Browser (WEB GUI), RS232 & Front Control
14. 40-Preset scenes that can be Saved and Recalled
15. Other cards available like SDI, Fiber, and more
16. Rack-mountable
17. Optional Control4 Drivers

Internal Video Wall Processing: Not only is this product an HDMI matrix switch, but it is also designed to support multiple video wall configurations. Your tablet is used to create video walls and the number of video walls is only limited by the number of outputs that you have. It supports Drag-N-Drop Video Wall Processing & setups and any TV can be rotated. To set up video walls all you need to use is a PC so you can then change the sources using a tablet. See the examples below:

Example 1: Create a 2x2 Video Wall using 4-TVs with either one large picture or 4-individual pictures at one, or multiple locations.

Example 2: Create a 3x3 Video Wall using 9-TVs with either one large picture or 9-individual pictures at one, or multiple places.

Separate Embedded Audio In and De-embedded Audio Out: The matrix allows you to display video with separate audio coming from another audio source as it supports embedding the audio on the input cards 3.5mm audio connector and then de-embedding the audio on the output cards 3.5mm audio.

Seamless Switching: Our WolfPackGold Modular HDMI Matrix Switcher can be configured with instantaneous video switching which delivers full 1080p video powered by our WolfPack engine implemented at each output port. It switches instantly taking only 100ms or 0.1 seconds.

Hardware Scaling via DIP Switches on both in and out cards: The 8-pin DIP switch on the cards are for the up/down manual scaling of resolutions. Each HDMI card has an 8-pin DIP switch to select multiple resolution settings to conform to your HDMI source devices and the HDMI destination devices.

1080p 36x36 HDMI Matrix Switcher with Video Wall Function Over CAT6 to 220 Feet Configuration Example:

• 1 - 36-card in and 36-out chassis with 2-power supplies
• 8 - Single-port 1080p HDMI input cards = 8-1080p HDMI inputs
• 36 -Single-port HDBaseT output cards = 36-HDBaseT outputs
• 36- HDBaseT Receivers to 220'

The modular card-based design provides exceptional reliability and serviceability. In the unlikely event of a card failure, the affected HDMI input or HDBaseT output card can simply be replaced without removing the entire matrix from service. This minimizes downtime and eliminates the need to return the complete chassis for repair.

At the heart of the system is the WolfPack chassis backplane, which allows flexible configuration of HDMI input and HDBaseT output cards to meet the specific requirements of each installation. The matrix supports hot-swappable cards, allowing cards to be added or replaced while the system remains operational.

Why not design a Modular HDMI Matrix Switcher today?
