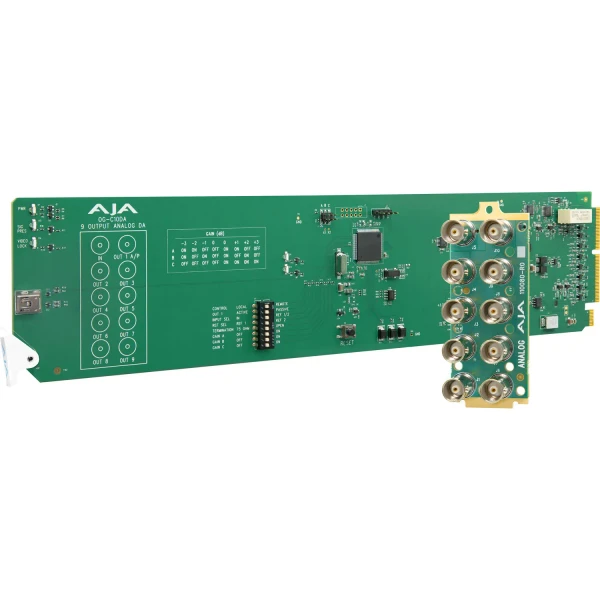

This AJA OG-C10DA Analog Video 1x9 openGear Distribution Amplifier is an openGear 1x9 analog distribution amplifier with support for NTSC and PAL, offering the ability to distribute multiple copies of the incoming signal or extend composite video content with gain adjustment to compensate for long cable runs.
The OG-C10DA can also be used to distribute tri-level sync in an HD facility when a sync signal is fed externally into the Video Input.
READ MORE
AJA HDBNC-2RX-12G 12G/6G-SDI Dual Coax HD-BNC KUMO 6464-12G Receiver Module Features:
- 1x9 analog distribution amplifier, (1x loop out option)
- Supports analog NTSC, PAL, blackburst, or tri-level sync
- Supports AES3-id (digital unbalanced audio) and LTC
- Selectable input - external BNC, frame input Ref 1 or frame input Ref 2
- Supports pass-through of SDI metadata, including HDR
- Monitor and control via Ross DashBoard software
- DIP switches for local control (Loop, Ref In, Termination, and Gain)
- Input Present LED
- Power: 6.75 watts max per card
- Hot-swappable
- Compatible with OG-X-FR, OG-3-FR and DFR-8321 openGear frames
- Five year warranty
Why not buy this AJA OG-C10DA Analog Video 1x9 openGear Distribution Amplifier from HDTV Supply today?
AJA HDBNC-2RX-12G 12G/6G-SDI Dual Coax HD-BNC KUMO 6464-12G Receiver Module Specifications:
- Formats
- NTSC
- PAL
- Bi-level Reference
- Tri-level Reference
- AES3-id
- LTC
- Inputs
- 1x BNC, Analog, Differential
- 2x openGear Frame Reference Inputs
- Video Output Digital
- 1x BNC, Analog, Loop-out Active/Passive
- 8x BNC, Analog
- Termination
- 75 Ohms or nonterminated
- Video Bandwidth
- 0 – 6 MHz ±0.1 dB
- Gain
- -3 dB, -2 dB, -1 dB, 0 dB, +1 dB, +2 dB, or +3 dB
- ±0.3 dB
- Differential Gain
- 0.15%, not load dependent
- Differential Phase
- 0.1 degree, not load dependent
- H/V Tilt
- < 0.1%
- Response Variation
- < 0.1 dB from 1 to 9 loads
- Coupling
- DC
- Maximum Common Mode Signal
- 8 Vp-p
- Return Loss
- > 15 dB to 6 MHz on all inputs and outputs
- Output Isolation
- > 40 dB
- User Interface
- openGear DashBoard network control software via Windows, macOS, or Linux
- Local/Remote Control
- Loop-out Control
- Input Selection
- Termination
- Gain
- Size
- openGear standard form factor, front slot and rear card
- Two slots required for each card
- Weight
- 0.5 lb (0.3 kg)
- Power
- openGear frame compatible
- 6.75 watts max per card
- Environment
- Safe Operating Temperature Range: 0°C to 40°C (32°F to 104°F)
- Safe Storage Temperature Range (Power OFF): -40°C to 60°C (-40°F to 140°F)
- Operating Relative Humidity: 10-90% noncondensing
- Operating Altitude: < 3,000 m (< 10,000 ft)
