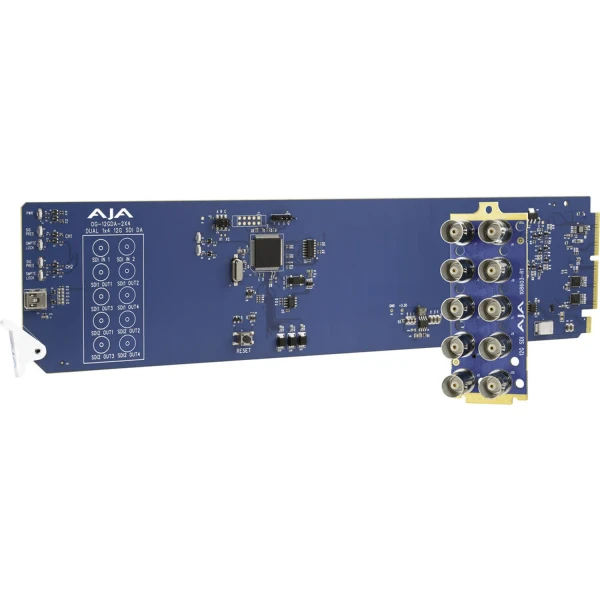

This AJA OG-12GDA-2x4 openGear Dual 1x4 12G-SDI Distribution Amplifier is an openGear compatible, state of the art 12G-SDI distribution amplifier.
The incoming 12G-SDI signals on the dual input channels are automatically equalized and the outputs are automatically reclocked to four 12G-SDI outputs each.
This dual input capability allows double the number of DAs in limited frame space. A 10x BNC rear connector module is included.
Designed for use in high density openGear 2RU frames including AJA’s OG-X-FR frame, DashBoard software support on Windows, macOS and Linux offers remote control and monitoring of the openGear architecture and provides convenient and industry standard configuration, monitoring and control options over a PC or local network.
AJA HDBNC-2RX-12G 12G/6G-SDI Dual Coax HD-BNC KUMO 6464-12G Receiver Module Features:
- Dual 1x4 12G-SDI openGear Distribution Amplifiers
- 2x 12G-SDI BNC inputs
- 8x noninverting 12G-SDI BNC outputs
- Format agnostic 270 Mbps – 12 Gbps video formats
- Automatic input equalization and output reclocking
- Supports pass-through of SDI metadata, including HDR
- Passes embedded audio, all ancillary data including closed caption and time code
- Input Present and Input SMPTE Lock LEDs
- 10x 12G-BNC rear connector module included
- Power: 4.5 watts
- Hot swappable
- DashBoard Support with OG-X-FR, OG-3-FR and DFR-8321 openGear frames
- Five year warranty
Why not buy this AJA OG-12GDA-2x4 openGear Dual 1x4 12G-SDI Distribution Amplifier from HDTV Supply today?
AJA HDBNC-2RX-12G 12G/6G-SDI Dual Coax HD-BNC KUMO 6464-12G Receiver Module Specifications:
- Video Formats
- 150 Mbps to 12 Gbps, format agnostic
- Video Input Digital
- 2x 12G-SDI BNC, SMPTE-259/292/424/2081/2082
- Video Output Digital
- 8x 12G-SDI BNC, SMPTE-259/292/424/2081/2082
- Noninverting outputs
- Cable Equalization
- (Belden 1694A coax)
- 12 Gbps: up to 45m
- 6 Gbps: up to 90m
- 3 Gbps: up to 140m
- 1.5 Gbps: up to 185m
- 270 Mbps: up to 365m
- Reclocking
- 270 Mbps
- 1.483 Gbps
- 1.485 Gbps
- 2.967 Gbps
- 2.970 Gbps
- 5.934 Gbps
- 5.940 Gbps
- 11.868 Gbps
- 11.880 Gbps
- Auto Select
- All other rates are passed through and not reclocked
- User Interface
- openGear DashBoard network control software
- Compatible with Windows, macOS, and Linux
- Size (W x D x H)
- openGear standard form factor with front slot and rear card
- Requires two slots in the openGear frame
- Weight
- 0.5 lb (0.3 kg)
- Power
- openGear frame compatible
- 4.5W maximum per card
- Environment
- Safe Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Safe Storage Temperature (Power OFF): -40°C to 60°C (-40°F to 140°F)
- Operating Relative Humidity: 10% to 90% noncondensing
- Operating Altitude: < 3,000 meters (< 10,000 feet)
