Build Your Own WolfPack 4K 30 Hz Matrix Switcher Using 9-Chassis Sizes

WolfPack

(No reviews yet) Write a Review

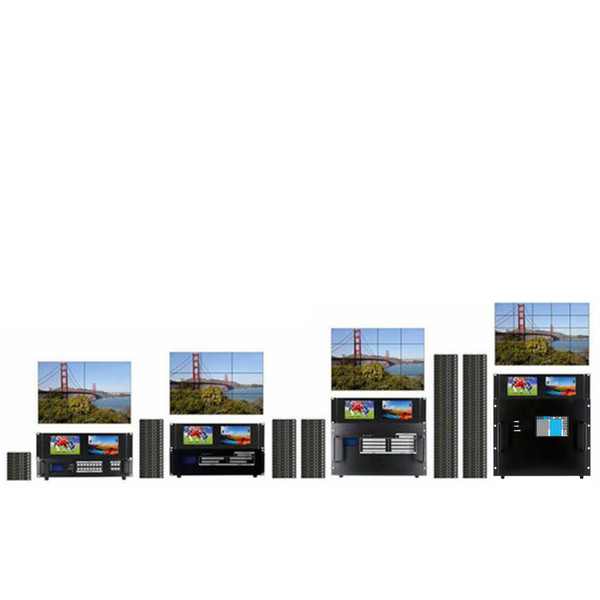

Build Your Own WolfPack 1080p Matrix Switcher w/Video Wall Function Using 9-Chassis Sizes
$600.00
Part Number:
4K-30-FIX-CHASSIS
Availability:
In Stock - Ships in 3 to 4 Days
1:
You Design Your System Up to an 80x80
2:
Free Apps, WEB GUI, RS232 & Front Control
3:
Configured with 4K 30 Hz 4-Port Cards
4:
4K 30 Hz 110' or 175' CAT6 HDBaseT Extenders
5:
No Latency
6:
Separate Audio on all Cards
7:
Quad-View Card (Up to 4-Pictures On 1-Display)
8:
Supports up to 4K 30 Hz Resolution
9:
4K 30 Hz HDBaseT Receivers (RX)
10:
Free Loop TV Media Server
11:
Free Atmosphere TV Media Server
12:
Sport Bar Control System - Call 833-965-3722
13:
HDCP 2.3 & HDMI 2.0 Compliant Input Cards
7:
Ships with the Latest Firmware
CLICK TO BUILD YOUR OWN:

Build your own WolfPack 4K 30 Hz Modular HDMI Matrix Switcher Chassis is an integrated HDMI video and HDMI audio modular HDMI matrix router.

These chassis back plane allows various technologies to be converted and switched eliminating external converters and it allows any input to be routed to any output, or the same input to be routed to all outputs, or any combination with multiple technologies.

The core of the Modular HDMI Matrix Switcher Chassis consists of multiple Modular Matrix chassis and its highly configurable backplane that supports 4 - slide-in input cards and 4 - slide-in output cards.

You can control the matrix switch via its IOS or Android Apps, front panel control, a WEB GUI control, remote control or the RS-232 serial port.

READ MORE

Reasons that set our WolfPack HDMI Modular Matrix Switchers apart from others:

  1. Chassis sizes from 8x8 to 80x80
  2. Built-in Video Wall Processing
  3. Fast 100ms Switching & 100ms No Latency
  4. Resolution Scaling on all Output Cards
  5. Separate Audio on all Cards
  6. HDMI Quad-View Card (4-Pics on 1-Display)
  7. Uses 4-port IN & OUT Cards
  8. Uses 4-Port HDBaseT HDMI to CATx extenders w/POC (Power Over Cable)
  9. Control via an iPad, Android, Web Browser (WEB GUI), RS232 & Front Control & IR Remote Control
  10. 40-Preset scenes that can be Saved and Recalled
  11. 2-Year WolfPackCare Advance Replace Warranty
  12. Free Lifetime Telephone, CHAT, TEXT, and Email Tech Support
  13. Other cards available like SDI
  14. Rack-mountable
  15. Optional Crestron, RTI, Elan & 2-Way Control4 Drivers

FREE MEDIA PLAYER: Get a Free LOOP TV player and/or an Atmosphere-TV Video Player for this HDMI Matrix Switcher to show your Ads and other videos. Commercial accounts only, like Sports Bars. Not avaible for home use.

WolfPack 40x80 HDMI Matrix Switch Configuration Example:

  • 1 - 80-card in and 80 out card cage
  • 10 - 4-port HDMI input cards = 40 - HDMI inputs
  • 20 - 4-port HDMI output cards = 80 - HDMI outputs

By having 4-port slide in cards the matrix is exceptionally reliable as in the unlikely even there is a loss of signal you just replace the card with a spare you have purchased or order another from us. The complete matrix doesn't have to be sent in for repair.

These WolfPack HDMI Matrix Switcher Chassis Features:

  • Supports up to 80 - inputs and 80 - output
  • 4-Port Input Cards Supported:
    • HDMI
    • HDBaseT Transmitters to support 220 feet and 330 feet with CAT6/7 at 4K 30 Hz with (POC) Power Over Ethernet
  • 4-Port Output Cards Supported:
    • HDMI
    • HDBaseT Receivers to support 220 feet and 330 feet with CAT6/7 at 4K 30 Hz with (POC) Power Over Ethernet
  • HDCP 2.3 & HDMI 2.0 Compliant Input Cards
  • Input HDMI cable distance: ~25 feet AWG24 HDMI 2.0 high speed cables
  • Output HDMI cable distance: ~50 feet AWG24 HDMI 2.0 high speed cables
  • Advanced EDID management for rapid integration of sources and displays
  • Front-panel LCD display for status feedback
  • Front-panel push buttons for local switching
  • IP controlled via built-in web server and LAN
  • RS-232 Serial interface for remote control via an automation control system
  • Support resolution exchanges with several resolutions can be chosen and used
  • Supports both HDBaseT signal inputs and outputs and the 4K 30 Hz distances can go up to 220 or 330 feet with only one Ethernet cable with (POC) Power Over Ethernet
  • Hot-pluggable
  • Uses a dual control system
  • Control via Web / RS232 and Front Buttons control
  • Rack-mountable

The heart of the Modular HDMI Matrix Routers is the WolfPack chassis backplane which allows customization of the configuration for input and output cards to match every need of the system and application. The matrix supports hot plugs, and you can change the cards while the equipment is still working.

Why not design a Modular HDMI Matrix Switcher today?

HDTV Supply's implementation of the HDBaseT technology and this product adds virtually zero latency to the HDMI audio and video signal, less than 7 microseconds (0.000007 sec) over 220 feet of CATx cable. At 100 feet you are talking about 3 microseconds (0.000003 sec). This means for example, in a church or auditorium, the speakers' lips are always in synch with the video image on all the TVs and projectors 100's of feet away.

EDID Explained: The Modular HDMI Matrix Routers EDID provides for optimal source-to-screen performance. EDID will optimize the video card output for the capabilities of the end display. The EDID ghost unit enables the copying, emulating, cloning, and "learning" of EDID data from a display. Our EDID Emulator and repeater comes with predefined presets, user programmable banks, Sink EDID sniffing bank and more. Our EDID Emulator ensures proper operation, for the best performing HDMI audio and video signal between any source and display Resolves loss of video, intermittent (flashing) video, snow, or color-space (purple or red) issues.

Control

When one is designing an HDMI Matrix Switch the most important initial specification is the number of inputs and outputs you will need in your facility. The next, and often forgotten, is how the user wants to control those inputs and outputs. HDTV Supply has your back when you're buying one of our WolfPack Family of Modular Matrix Switchers as we have dozens of way to control the inputs and outputs and are shown at Controlling WolfPack Modular Matrix Systems, as well as below:
  1. Remote Keypad for WolfPack Matrix Systems
  2. Free 15-Button Remote Control
  3. Free Windows PC Control Software
  4. Free iPad App (iOS)
  5. Free iPhone App (iOS)
  6. Free iPod App (iOS)
  7. Free Android Tablet App
  8. Free Android Phone App
  9. Free Samsung Galaxy Tablet App
  10. Free Samsung Galaxy Phone App
  11. Free Amazon Fire Tablet App
  12. Free Web GUI from any browser is standard
  13. Front panel push-buttons are standard
  14. Optional 7-inch Color Touch Screen for Setup & Control
  15. RS232 ports are standard on select models
  16. TCPIP ports are standard on select models
  17. Sports Bar DirecTV Control System (Call)
  18. Free One-Way Control4 Drivers
  19. Optional $99 2-Way Control4 Drivers
  20. Optional $99 URC Drivers
  21. Optional $99 Elan Drivers
  22. Optional $129 Crestron Modules
  23. Optional $125 RTI Drivers
  24. Optional Harmony Remote Control Codes
For an up-to-date listing of all the methods to control our WolfPack Matrix Switchers go to Ways to Control Our WolfPack Family Of Modular Matrix Systems.

Why not design a Modular HDMI Matrix Switcher today?

Control Drivers

DirecTV Controller

HDTV Supply has successfully installed our WolfPack and our other HDMI Matrix Switchers in Sports Bars, Restaurants, Bowling Alleys, Fitness Centers, Malls, Places of Worship, Data Centers, Gaming Rooms, Nail Salons, County Clubs, Casinos, Factories, Conference Rooms, Schools, Home Theaters, or many other installations requiring HDMI matrix switching. The reason the users tell us is the number of features we offer compared to other companies they looked at.

These modular HDMI matrix switchers can usually be integrated with many third-party control systems using the RS232 port on the back of the matrix.

For experienced AV hardware and software professionals who want to write their own drivers for 3rd party control systems from:

  • AMX
  • Control4
  • Creston
  • RTI
  • DTVGameControl
  • Elan g!
  • Media Switcher
  • OnControls
  • Savant
  • SimpleControl
  • SwitchItUp
  • SAVI Control
  • URC Control

...and we have created a simple and extremely easy to use RS232 script to write your own drivers.

EXAMPLE: If you want to switch input 8 to output 1, 8, 16, the RS232 command would be 8x1&8&16. and notice the command has a period (.) at the end of the string. The matrix even replies "OK" when the right command is received and shows "ERR" when receiving a wrong command. Here is the RS232 User Manual if you want to write your own drivers.

How to use the info:

END USER: If you are an end user and want to have a whole-house control system from any of the above 3rd party control houses but your budget can't support the price you were quoted, do the following:

  1. Call us for a quote
  2. Once you get our quote call a 3rd party control reseller or installer in your area and tell them "Here is the hardware I want to use, please give me a quote on writing the software and installing all of the hardware at my location." You usually can save $1,000s on larger systems.

CAVEAT: We are not certified by any of the above 3rd party control systems companies nor have the necessary hardware to verify, troubleshoot and support the 3rd party writing of the code. We do warranty, though, that the RS232 script in the above RS232 User's Manual has and will work to control the matrix directly.

Also, CLICK HERE for our DirecTV & HDMI Matrix Control Software for Bars & Restaurants

Why not design a Modular HDMI Matrix Switcher today?

What is the WolfPack 4K 30 Hz Modular HDMI Matrix Switcher and how is it customized?

A: The WolfPack 4K 30 Hz Modular HDMI Matrix Switcher Chassis is an integrated HDMI video and HDMI audio modular router with a highly configurable backplane. It allows various technologies to be converted and switched without needing external converters, routing any input to any output, all outputs, or any combination.

Users can customize the setup using slide-in 4-port input and output cards, with chassis sizes scaling from 8x8 up to 80x80 (supporting up to 80 inputs and 80 outputs).

What types of input and output cards are supported, and how does card-based modularity benefit maintenance?

A: The chassis supports 4-port input and output cards for standard HDMI, SDI, and HDBaseT extenders (supporting 4K 30 Hz distances up to 220 or 330 feet over CAT6/7 with Power Over Cable). It also features specialized cards like the HDMI Quad-View card, which displays four pictures on a single screen.

Because it uses 4-port slide-in cards, the switcher is exceptionally reliable; if a signal loss occurs, you only need to replace the specific card with a spare rather than sending the entire matrix in for repair.

How far can video signals travel over HDMI and Ethernet cables?

A: When using standard HDMI 2.0 high-speed cables (AWG24), the matrix supports input cable distances up to approximately 25 feet and output cable distances up to approximately 50 feet.

For longer installations, using the supported HDBaseT transmitter and receiver cards allows signal distribution up to 220 feet or 330 feet over a single CAT6/7 Ethernet cable at 4K 30 Hz with Power Over Cable (POC).

What control options and automation integrations are available for the WolfPack Matrix Switcher?

A: The matrix offers a dual control system that can be managed locally or remotely. Controls include iOS and Android apps, an iPad, a built-in WEB GUI (via LAN/web server), an RS-232 serial interface for automation systems, front-panel push buttons with an LCD status display, and an IR remote control.

Optional 2-way drivers are available for integration with Crestron, RTI, Elan, and Control4 automation systems.

What key features set these WolfPack switchers apart from other matrix switchers?

A: Key features that differentiate these switchers include fast 100ms switching with zero latency, built-in Video Wall processing, resolution scaling on all output cards, and separate audio management on all cards.

Additionally, the system supports advanced EDID management, hot-pluggable card swapping while operating, and the ability to save and recall up to 40 preset scenes.

What warranty, support, and promotional offers come with the purchase of this switcher?

A: Every unit comes with a 2-Year WolfPackCare Advance Replace Warranty along with free lifetime technical support provided via telephone, chat, text, and email.

Commercial accounts (such as sports bars) can also receive a free media player—either a LOOP TV player and/or an Atmosphere-TV Video Player—to display ads and videos, though this promotion is not available for home use.

Why not design a Modular HDMI Matrix Switcher today?

HDTV Supply's WolfPack Family of Matrix Switchers can be created however you wish. Just SCROLL DOWN and fill out the below and we will send you a quotation based upon your needs within an hour.

If it doesn't meet your needs just call us right now at 833-WOLFPACK or 833-965-3722 or email us at customerservice@hdtvsupply.com















Below is a video of the WolfPack 9x9 card cage model showing the fast switching speed and its features. The larger 18x18 card cage model will operate exactly the same but will allow more input and output cards.









Why not design a Modular HDMI Matrix Switcher today?

`
