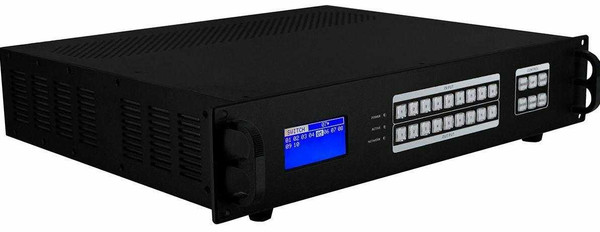

HDTV Supply's WolfPack 4K 5x5 HDMI Matrix Switcher
is a preconfigured integrated HDMI video and HDMI audio modular HDMI matrix Switcher. The 9x9 chassis back plane allows HDMI technologies to be converted and switched eliminating external converters and it allows any input to be routed to any output, or the same input to be routed to all outputs. The core of the 5x5 HDMI Matrix HDBaseT Switcher consists of an 9x9 Modular Matrix chassis and its highly configurable backplane that supports 9 input cards and 9 output cards. The 5x5 HDMI Matrix Switcher is also 4K at 30 Hz compliant. You can control the WolfPack™ 5x5 HDMI Matrix Switcher via front buttons, WEB GUI control, or the RS-232 serial port. The matrix does not have IR nor a remote control but can be controlled with its iOS and Android app.
The WolfPack 4K 5x5 HDMI Matrix Switch manages HDMI input signals for the inputs and outputs. This 4K 5x5 HDMI Matrix Switcher supports long haul transmissions, maintains power reliability in the event of failure and offer the best flexible solutions for an AV system deployment. Our 5x5 HDMI Matrix Switcher also can support high-resolution HDMI sources routed to HDMI displays, monitors, projectors, or audio receivers, etc. The EDID can be selected between seven different modes or copied from the attached displays.
Reasons that sets our WolfPack™ 4K/30 HDMI Modular Matrix Switchers apart from others:
- 4K/30 HDMI 1.4 cards for the best picture
- Optionally uses the best 4K/30 HDBaseT HDMI to CATx extenders with POC (Power Over Cable), not cheap H.264 with fuzzy compressed video
- 40 - Preset scenes that can be Saved and Recalled
- Closed Caption (CC) Pass-through
- Control via an iPad, Android, Web Browser (WEB GUI), RS232 & Front Buttons
- No latency
- 2-Year WolfPackCare Advance Replace Warranty
- Free Lifetime Telephone, CHAT, TEXT and Email Tech Support
- Other in & out cards available like VGA, DVI, Fiber, SDI, CVBS, YPbPr and Audio
- Optional low cost Video wall Processors
WolfPack™ 4K 5x5 HDMI Matrix Switcher Configuration:
- 1 - 9-card in and 9 card out 4K card cage
- 5 - 1-port 4K HDMI input cards = 5-HDMI inputs
- 5 - 1-port 4K HDMI output cards = -HDMI outputs
- 4 - Input slots for future expansion to 9-total inputs
- 4 - Output slot for future expansion to 9-total outputs
4K 5x5 HDMI Matrix Switcher Feature:
- Chassis size: 9 input and 9 outputs cards
- Input Cards Supported:
- 5 - 4K female HDMI single port cards = 5 - HDMI inputs
- Output Cards:
- 5 - 4K female HDMI single port cards = 5 - HDMI outputs
- Input HDMI cable distance: Up to ~12 feet with an AWG24 HDMI 1.4 high speed cable
- Input HDMI cable distance: Up to ~50 feet with an AWG24 HDMI 1.4 high speed cable
- Flexible card type design supporting 9 input cards and 9 output cards
- Advanced EDID management for rapid integration of sources and displays
- Front-panel LCD display for status feedback
- Front-panel push buttons for local switching
- IP controlled (WEB GUI) via built-in web server and LAN
- RS-232 Serial interface for remote control
- Supports fast switching, no black/ blue/ split screen while switching
- Supports resolution exchanges with several resolutions can be chosen and used
- Uses a dual control system
- Control via Web / RS232 and Front Buttons control (no remote control)
- 2U Rack-mountable
Free Android and iOS App: The IOS App
for this WolfPack card cage matrix is in the Apple Application Store and when you SEARCH the key words "MCS" or "Matrix Control System" you can download and install it to your iPad or iPhone. Also from your iPad or iPhone click the following link...MCS-matrix control system
to install it directly. For the Android App
click the following link and download it. Go to Android App for control of this HDMI matrix switch
The 4K 5x5 HDMI Matrix Switchers EDID provides for optimal source-to-screen performance. EDID will optimize the video card output for the capabilities of the end display. The EDID ghost unit enables the copying, emulating, cloning, and "learning" of EDID data from a display. Our EDID Emulator and repeater comes with pre-defined presets, user programmable banks, Sink EDID sniffing bank and more. Our EDID Emulator ensures proper operation, for the best performing HDMI audio and video signal between any source and display Resolves loss of video, intermittent (flashing) video, snow, or color-space (purple or red) issues.
Why not buy buy this 4K 5x5 HDMI Matrix Switcher today?
HDTV Supply has successfully installed our WolfPack, WolfPackLite and our other HDMI Matrix Switchers in Sports Bars, Restaurants, Bowling Alleys, Fitness Centers, Malls, Places of Worship, Data Centers, Gaming Rooms, Nail Salons, County Clubs, Casinos, Factories, Conference Rooms, Schools, Home Theaters or many other installations requiring HDMI matrix switching. The reason, we are told by the users, is the number of features we offer compared to other companies they looked at.
These modular HDMI matrix switchers can usually be integrated with many third party control systems using the RS232 port on the back of the matrix.
For experienced AV hardware and software professionals who want to write their own drivers for 3rd party control systems from:
- Elan g!™
- Media Switcher™
- SAVI Control™
- URC Control™
...and we have created a simple and very easy to use RS232 script to write your own drivers.EXAMPLE:
If you want to switch input 8 to output 1, 8, 16, the RS232 command would be x1&8&16.
and notice the command has a period (.) at the end of the string. The matrix even replies "OK" when the right command is received and shows "ERR" when receiving a wrong command. Here is the RS232 User Manual
if you want to write your own drivers.
How to use the info:END USER:
If you are an end user and want to have a whole-house control system from any of the above 3rd party control houses but your budget can't support the price you were quoted, do the following:
- Call us for a quote
- Once you get our quote call a 3rd party control reseller or installer in your area and tell them "Here is the hardware I want to use, please give me a quote on writing the software and installing all of the hardware at my location." You usually can save $1,000s on larger systems.
We are not certified by any of the above 3rd party control systems companies nor have the necessary hardware to verify, troubleshoot and support the 3rd party writing of the code. We do warranty, though, that the RS232 script in the above RS232 Users Manual has and will work to control the matrix directly.
Also, CLICK HERE for our DirecTV™ & HDMI Matrix Control Software for Bars & Restaurants
Q/AQ: What are the HDCP options?
You can choose either to open or close the HDCP on the output card. A receiver that cannot support HDCP can also display the sources with HDCP.
Non-HDCP source to a HDCP compliant TV
HDCP source to a non-HDCP compliant TVQ: What is you test procedure?
Our testing procedure is:
Q: What are the dimensions of the chassis?
- Assembling: Production line self-testing (Basic Functions)
- Initial Testing: Includes every card, control software and front panel front buttons
- 24 Hours Aging: Gao Sheng Standard Aging Room
- Final testing: All Functions
- QC final Inspection: Sticker, serial number, etc
- Packing: Pack and ship
9x9: 2U - 482x390x88mm - 18.97x15.35x3.46 inches (L/W/H)Q: Do you have any tips in the unlikely event the unit fails?
Turn it OFF and then disconnect the matrix from the AC power and all cables. Pull out each board from the rear and push back in. Plug all cables back in and turn it on.Q: How is HDBaseT technology different than others?
Unlike other HD distribution technologies, HDBaseT is the only technology which enables CAT5/6/7 connectivity from 70 meters to 100 meters, depending upon the specific product, for uncompressed full HD multimedia content and up to 100 watts of charging power via a single cable. HDBaseT is optimized for video applications and can connect all HDBaseT enabled home entertainment devices. Also, HDBaseT technology has the capacity to deliver double the resolution available today to future 2K and 4K formats. Other existing solutions also require a specific cable and/or a new proprietary connector while HDBaseT utilizes the existing Ethernet infrastructure. These WolfPack HDBaseT matrix systems have with (POC) Power Over Ethernet so you don't need AC adapters.HDMI HDbaseT Extender Helpful Tips & Recommendations:
- Keep cables away from any equipment with an electromagnetic wave, e.g., mobile phone, microwave, radio equipment, fluorescent lamp, high voltage power lines, etc.
- CAT5/6 cables should not exceed 220 feet or (70m).
- Please adhere to the TIA/EIA568B standards when terminating network cables in the field.
- Shielded CAT5/6 with metal RJ-45 connectors are recommended to safeguard against random video flashes caused by electromagnetic interference (EMI).
Why not design a 4K/30 5x5 HDMI Matrix Switcher today?
