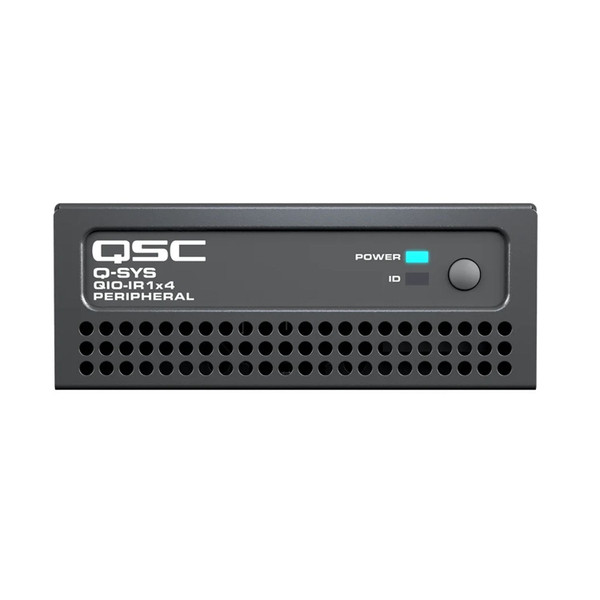

This QSC Q-SYS QIO-IR1x4 Network IR I/O Expander adds networked infrared and serial control connectivity to Q-SYS systems. It provides one IR receiver input and four configurable IR or RS-232 transmit outputs. Q-LAN networking, Power over Ethernet (PoE), and flexible mounting options make it suitable for distributed AV control installations.
The QIO-IR1x4 allows Q-SYS systems to control compatible non-networked devices, such as displays and media players, through infrared or serial connectivity. Each of its four output ports can be configured for IR or transmit-only RS-232 operation.
IR carrier frequency and drive strength are configurable, while the RS-232 baud rate can be configured through Q-SYS Designer Software. LED indicators provide local IR transmit activity feedback.
The QIO-IR1x4 can be powered by PoE or an external 24 VDC power source. Up to four QIO Series expanders can also be daisy-chained on one network run when local daisy-chained DC power is used.
QSC Q-SYS QIO-IR1x4 Network IR I/O Expander Features
- Native Q-SYS network control I/O expander
- One IR receiver input
- Four configurable IR or RS-232 transmit outputs
- Configurable IR carrier frequency and drive strength
- Configurable transmit-only RS-232 baud rate
- IR transmit activity LED indicators
- Q-LAN network connectivity
- IEEE 802.3af Type 1 Class 1 Power over Ethernet
- 24 VDC external power input
- Ethernet LAN THRU port for daisy-chaining
- Supports up to four QIO expanders on one network run with local daisy-chained DC power
- Integration with Q-SYS Designer Software
- Q-SYS Reflect Enterprise Manager support
- Surface- and wall-mountable design
- 1RU quarter-rack mounting with optional QIO-RMK rack mounting kit
- Surface mounting hardware included
- Designed to integrate non-networked AV devices into Q-SYS control systems
QSC Certified Expertise
Knowledgeable Support for QSC Products
HDTV Supply has QSC Level 1 certified expertise. Our team has completed QSC Level 1 Training, demonstrating foundational knowledge of the QSC platform, including system design, hardware and software, programming, and troubleshooting.
This training helps us provide knowledgeable product guidance when customers are selecting and deploying Q-SYS solutions. When you purchase Q-SYS products from HDTV Supply, you are working with a team that understands the Q-SYS platform and can help you make informed product and system decisions.
Why Buy the QSC Q-SYS QIO-IR1x4 from HDTV Supply?
Integrate compatible infrared and serial-controlled equipment into your Q-SYS system with the QIO-IR1x4 Network IR I/O Expander. Contact HDTV Supply for product information and assistance with your AV control requirements.
Ask a Question (0)
Have a question about the QSC Q-SYS QIO-IR1x4 Network IR I/O Expander? Contact our team for assistance.
QSC Q-SYS QIO-IR1x4 Network IR I/O Expander Specifications
| Specification | Details |
|---|---|
| Model | QSC-QIO-IR1x4 |
| Product Type | Network IR I/O Expander for Q-SYS |
| IR Input | 1 IR receiver input |
| IR/Serial Outputs | 4 configurable transmit-only ports |
| IR Configuration | Configurable carrier frequency and drive strength |
| RS-232 Configuration | Configurable baud rate; transmit only |
| LED Indicators | IR transmit activity |
| Network | Gigabit Ethernet connection for Q-LAN |
| LAN THRU | Ethernet daisy-chaining |
| PoE | IEEE 802.3af Type 1 Class 1 |
| External Power | 24 VDC nominal, 2.5 A, Euro connector |
| Power Supply | QIO-PSU sold separately |
| Daisy-Chain Capacity | Up to four QIO expanders on one network run with local daisy-chained DC power |
| Mounting Options | Surface, wall, or rack mount |
| Rack Mounting | 1RU, quarter-rack width with optional QIO-RMK |
| Dimensions | 5.5 x 4.25 x 1.59 in (139.7 x 108 x 40.4 mm) |
| Weight | 1.18 lbs (0.54 kg) |
| Thermal Dissipation | 7.2 BTU/hour |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 70°C |
| Humidity | 0% to 85% through 30°C, non-condensing |
| Network Security | 802.1X authentication |
| Included Mounting Hardware | Surface mounting brackets, foam spacers, and M4 x 6 mm pan head screws |
| IR Receiver / Emitters | External IR receiver and emitter accessories are not listed as included |
| Compliance | FCC 47 CFR Part 15, IC ICES-003, CE, EU RoHS, WEEE, China RoHS, EAC, UL, C-UL, NOM-019 |
QSC Q-SYS QIO-IR1x4 Network IR I/O Expander Manuals
Q-SYS QIO Series Hardware User Manual (PDF)
Q-SYS QIO-IR1x4 Specifications Sheet (PDF)
Q-SYS QIO-IR1x4 Architectural and Engineering Specifications
Documentation: Refer to the official Q-SYS documentation for installation, configuration, and technical details.
Frequently Asked Questions
Q1: What is the QSC Q-SYS QIO-IR1x4?
A: The QIO-IR1x4 is a network control I/O expander that adds infrared and serial control connectivity to a Q-SYS system.
Q2: How many IR inputs does the QIO-IR1x4 have?
A: It has one IR receiver input.
Q3: How many output ports does the QIO-IR1x4 provide?
A: It provides four configurable transmit output ports that can operate as IR outputs or transmit-only RS-232 ports.
Q4: Can the QIO-IR1x4 control displays and media players?
A: Yes. It can provide control connectivity for compatible non-networked devices, including displays and media players.
Q5: Can the QIO-IR1x4 outputs be configured for RS-232?
A: Yes. Each of the four output ports can be configured for IR or transmit-only RS-232 operation.
Q6: Can the IR settings be customized?
A: Yes. The IR carrier frequency and drive strength are configurable through the Q-SYS system.
Q7: Does the QIO-IR1x4 support Power over Ethernet?
A: Yes. It supports IEEE 802.3af Type 1 Class 1 PoE.
Q8: Can the QIO-IR1x4 use an external power supply?
A: Yes. It accepts nominal 24 VDC external power through a Euro connector. The QIO-PSU is sold separately.
Q9: Can multiple QIO Series expanders be daisy-chained?
A: Yes. Up to four QIO Series expanders can share one network run when local daisy-chained DC power is used.
Q10: What mounting options are available?
A: The QIO-IR1x4 supports surface and wall mounting. It can also be installed in a 1RU quarter-rack configuration using the optional QIO-RMK rack mounting kit.
Q11: What is the Q-SYS QIO-IR1x4 used for in an AV control system?
A: It adds networked IR and transmit-only RS-232 interfaces to Q-SYS, allowing a compatible system to control supported devices that do not have native network control.
Q12: How many control paths does the QIO-IR1x4 support?
A: It has four configurable transmit output ports, providing up to four connected IR or RS-232 control paths.
Q13: What network connection does the QIO-IR1x4 use?
A: It uses a Gigabit Ethernet connection for Q-LAN and includes a LAN THRU port for Ethernet daisy-chaining.
Q14: Does the QIO-IR1x4 work with Q-SYS Designer Software?
A: Yes. The QIO-IR1x4 integrates with Q-SYS Designer Software for system configuration and control.
Q15: What are the dimensions and weight of the QIO-IR1x4?
A: The listed dimensions are 5.5 x 4.25 x 1.59 inches (139.7 x 108 x 40.4 mm), and the listed weight is 1.18 lbs (0.54 kg).
