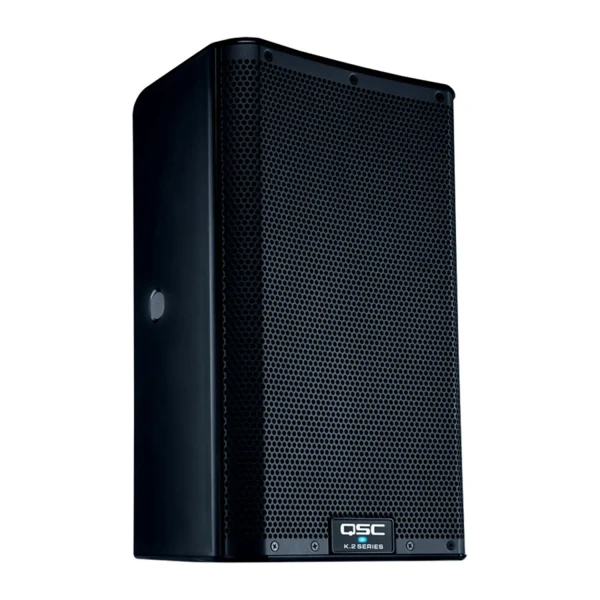

QSC K8.2 Two-Way 8-Inch 2000W Powered Portable PA Speaker with DSP Processor
The QSC K8.2 is a two-way, 8-inch powered PA loudspeaker designed for portable sound reinforcement, presentations, live performances, and professional AV applications. Its 2000W amplifier, onboard DSP, and built-in mixer provide flexible sound control in a compact enclosure.
The onboard DSP processing, three-input mixer, and LCD interface with presets help presenters, musicians, instructors, performers, and AV professionals configure sound for a variety of applications.
The K8.2 provides 105-degree conical coverage and a stated continuous maximum SPL of 122 dB, making it suitable for smaller venues such as houses of worship, conference rooms, performance spaces, and meeting rooms.
The Class-D amplifier powers an 8-inch woofer and a 1.4-inch titanium compression driver. The supplied specifications list a frequency range of 55 Hz to 20 kHz at -10 dB and 59 Hz to 20 kHz at -6 dB.
Weighing approximately 27 lb, the K8.2 is a portable option in the QSC K.2 Series. Its integrated handles and pole-mounting options support convenient transport and setup.
Inputs A and B use combo XLR-1/4-inch connectors. Input A supports microphone or line-level signals, while Input B supports microphone or Hi-Z signals for compatible instruments. Input C provides a 3.5 mm stereo auxiliary input for portable audio devices.
Individual input gain controls allow the speaker to combine multiple sources, such as microphones, instruments, and backing tracks. The internal mix is mono and can be sent to another device through the Mix Out connector.
Inputs A and B also provide XLR Thru outputs for connecting additional equipment. For stereo left/right playback, use two speakers and send the appropriate independent channel to each speaker.
QSC Directivity Matched Transition (DMT) technology is designed to provide consistent coverage across the listening area. Intrinsic Correction processing and onboard DSP functions support tailored performance in different applications.
QSC K8.2 Features
- Two-way, 8-inch powered portable PA loudspeaker
- 2000W total amplifier power, as specified in the supplied product data
- Onboard DSP and LCD control interface
- Intrinsic Correction tuning and loudspeaker management
- Directivity Matched Transition (DMT) design for consistent coverage
- Built-in three-input mixer with individual gain controls
- Microphone, line-level, Hi-Z, and 3.5 mm auxiliary input options
- XLR Thru outputs and an XLR Mix Out connector
- Four-band parametric EQ and selectable preset EQ curves, as specified
- Adjustable alignment delay up to 100 ms, as specified
- Dual-angle pole socket, including a 7.5-degree down-tilt position
- M10 suspension points for compatible flown installations
- Rugged ABS enclosure with metal grille
- Optional security panel to help prevent unauthorized control adjustments
- Suitable for portable PA, stage monitoring, presentations, and AV applications
QSC Certified Expertise
Knowledgeable Support for QSC Products
HDTV Supply has QSC Level 1 certified expertise. Our team has completed QSC Level 1 Training, demonstrating foundational knowledge of the QSC platform, including system design, hardware and software, programming, and troubleshooting.
This training helps us provide knowledgeable product guidance when customers are selecting and deploying Q-SYS solutions. When you purchase Q-SYS products from HDTV Supply, you are working with a team that understands the Q-SYS platform and can help you make informed product and system decisions.
Why Buy the QSC K8.2 from HDTV Supply?
HDTV Supply offers professional AV equipment for live sound, commercial audio, and installation applications. Contact our team if you need assistance confirming product compatibility or choosing equipment for your setup.
Ask a Question About the QSC K8.2
Have questions about the QSC K8.2 powered loudspeaker, its inputs, DSP features, mounting options, or compatibility with your audio equipment? Contact HDTV Supply for assistance.
For faster assistance, include your application and any connected equipment in your message.
QSC K8.2 Specifications
Speaker and Amplifier
- Speaker Type: Active loudspeaker / stage monitor
- Configuration: Two-way
- Enclosure Type: Bass-reflex
- Total Output Power: 2000 W, as supplied
- LF Amplifier Power Rating: 1800 W peak, as supplied
- MF Amplifier Power Rating: 225 W peak, as supplied
- Amplifier Class: Class-D
Drivers
- LF Driver: 1 × 8-inch (203.2 mm) woofer
- HF Driver: 1 × 1.4-inch (35.6 mm) titanium compression driver
Audio Performance
- Frequency Range (-10 dB): 55 Hz–20 kHz
- Frequency Range (-6 dB): 59 Hz–20 kHz
- Maximum SPL, Peak: 128 dB
- Maximum SPL, Continuous: 122 dB
- Coverage Angle: 105° conical
Signal Processing
- Crossover Frequencies: 80 / 100 / 125 Hz, as supplied
- EQ and Filters: Four-band parametric EQ and preset EQ curves, as supplied
- Alignment Delay: Up to 100 ms (approximately 113 ft / 34.44 m), as supplied
- DSP Functions: Crossover, delay, EQ, filtering, user settings, venue settings, and voicing modes, as supplied
Connectivity
- Input A: 1 × combo XLR-1/4-inch TRS microphone/line input
- Input B: 1 × combo XLR-1/4-inch TRS line/Hi-Z input
- Auxiliary Input: 1 × 3.5 mm TRS
- Thru Outputs: 2 × three-pin XLR, as supplied
- Mix Output: 1 × three-pin XLR
- Network I/O: None listed
- USB I/O: None listed
- Wireless Connectivity: None listed
- Mobile App Compatibility: None listed
Power
- AC Input: 100–240 VAC, 50/60 Hz
- AC Power Connector: 1 × locking IEC input
- Current Consumption at 1/8 Power:
- 100 VAC: 2.1 A
- 120 VAC: 1.9 A
- 240 VAC: 1.1 A
Physical Specifications
- Color: Black
- Mounting: Stand mount and suspension points
- Pole Socket: 35 mm dual-angle socket, as supplied
- Fly Points: 2 × M10, as supplied
- Handles: 1 top handle and 1 side handle, as supplied
- Construction: ABS enclosure with metal grille
- Environmental Resistance: No environmental resistance rating supplied
- Dimensions: 17.7 × 11 × 10.6 inches (449.6 × 279.4 × 269.2 mm)
- Product Weight: 27 lb (12.2 kg)
Packaging Information
- Package Weight: 31.8 lb
- Box Dimensions (L × W × H): 20 × 15 × 14 inches
Frequently Asked Questions About the QSC K8.2
Q1: What is the QSC K8.2 powered speaker?
A: The QSC K8.2 is an 8-inch, two-way powered loudspeaker designed for portable PA, stage monitoring, presentations, and professional audio applications.
Q2: How much amplifier power does the QSC K8.2 provide?
A: The supplied product information lists a total amplifier power rating of 2000 W. Confirm the manufacturer's specifications for the exact amplifier power ratings and their measurement basis.
Q3: What size woofer does the K8.2 use?
A: The K8.2 uses an 8-inch woofer paired with a 1.4-inch titanium compression driver, according to the supplied specifications.
Q4: Does the QSC K8.2 have built-in DSP?
A: Yes. The supplied description identifies onboard DSP processing and an LCD interface for adjusting sound settings and selecting presets.
Q5: Can the QSC K8.2 be used as a stage monitor?
A: Yes. The supplied product description identifies the K8.2 as suitable for floor-monitor use as well as main PA applications.
Q6: What audio inputs does the K8.2 have?
A: The supplied information lists two combo XLR-1/4-inch inputs and a 3.5 mm TRS auxiliary input. Input A supports mic/line signals, while Input B supports mic/Hi-Z signals.
Q7: Can the K8.2 connect to a guitar?
A: The supplied description identifies Input B's Hi-Z setting as suitable for compatible high-impedance instruments, including guitars.
Q8: Can the QSC K8.2 be connected to another speaker?
A: The supplied specifications list XLR Thru outputs and a Mix Out connector for sending audio to additional equipment. Follow the manufacturer's instructions for signal routing and gain settings.
Q9: Can one QSC K8.2 provide stereo output?
A: The supplied description states that the speaker mixes its inputs internally to mono. For a stereo left/right setup, use two speakers and send the appropriate independent channel to each one.
Q10: How much does the QSC K8.2 weigh?
A: The supplied product specifications list a weight of 27 lb (12.2 kg), making it a compact option for portable sound applications.
Q11: What is the frequency response of the QSC K8.2?
A: The supplied specifications list 55 Hz–20 kHz at -10 dB and 59 Hz–20 kHz at -6 dB. Refer to the verified manufacturer's datasheet for the official response specifications.
Q12: What is the maximum SPL of the QSC K8.2?
A: The supplied data lists 128 dB peak and 122 dB continuous. Confirm these values and their test conditions in the official product documentation.
Q13: Can the K8.2 be mounted on a speaker stand?
A: Yes. The supplied specifications list a 35 mm dual-angle pole socket, including a down-tilt position, for compatible speaker stands or poles.
Q14: Does the QSC K8.2 support flown installation?
A: The supplied specifications list two M10 fly points. Any suspended installation must use compatible hardware and follow the manufacturer's safety and installation instructions.
Q15: Where can I find the QSC K8.2 manual and datasheet?
A: The supplied listing includes links to a user manual and datasheet in the Manuals section. Verify that the linked PDF files correspond to the K8.2 before relying on them for technical or installation guidance.
