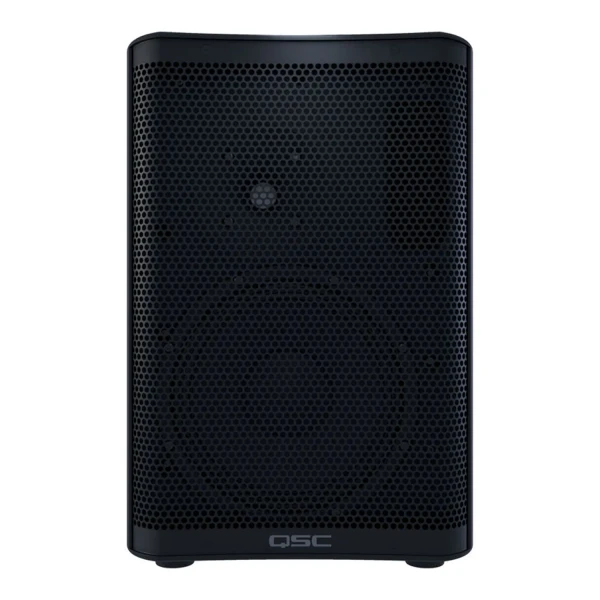

QSC CP8 Two-Way 8 Inch 1000W Compact Powered Loudspeaker with DSP

QSC

$684.99
Part Number:
QSC-CP8
Condition:
New
Availability:
3-5 Days
1:
For Small Spaces Upto 250 People
2:
Loud & Portable at 21 lb
3:
56 Hz to 20 kHz
4:
Contour Presets + 3-Input Mixer
5:
Free USA Insured Shipping
6:
QSC Factory Warranty
8:
Ships with the Latest Firmware
9:
Save 5% w/Check or Wire Transfer
10:
International Shipping - Call
11:
QSC Certified

The QSC CP8 Two-Way 8-Inch 1000W Compact Powered Loudspeaker with DSP is a portable, versatile powered PA speaker designed for presentations, music performances, and professional AV applications. Its compact enclosure makes it suitable for use as a main PA speaker, stage monitor, or instrument amplifier.

Onboard DSP, a three-input mixer, and selectable contour settings help presenters, musicians, instructors, performers, and AV professionals achieve clear sound for a variety of applications.

The CP8 offers 90-degree conical coverage and a listed maximum SPL of 124 dB. Its 1000W peak Class-D amplifier powers an 8-inch woofer and a 1.4-inch compression driver to deliver detailed audio across a broad frequency range.

Inputs A and B use combo XLR-1/4-inch connectors. Input A accepts a line-level signal, while Input B offers Mic/Line selection and a Mic Boost function. Input C provides a 3.5mm TRS auxiliary input for compatible portable audio sources.

Separate gain controls for Inputs A and B allow the speaker to mix multiple sources. Input C is controlled through Input A's gain control. An XLR Mix Out connector sends the combined mono signal to another compatible speaker or audio device.

For stereo playback, use two CP8 speakers and feed them independent left and right signals. QSC Directivity Matched Transition (DMT) technology and Intrinsic Correction processing are designed to support consistent coverage and accurate sound reproduction.

The CP8 includes a 35mm pole socket, handles for portability, and mounting options for supported installation configurations. A power cord is included.

READ MORE

QSC CP8 Powered Loudspeaker Features

  • Compact two-way powered loudspeaker with 1000W peak Class-D amplification
  • 8-inch woofer and 1.4-inch compression driver
  • Onboard DSP with selectable voicing and contour modes
  • Directivity Matched Transition (DMT) technology for consistent coverage
  • Three-input mixer with combo XLR-1/4-inch and 3.5mm TRS connections
  • XLR Mix Out for connecting additional audio equipment
  • Suitable for main PA, stage-monitor, and instrument-amplifier applications
  • Portable enclosure with 35mm pole socket

Why Buy QSC Products from HDTV Supply?

HDTV Supply offers professional AV equipment for commercial installations, presentations, and live sound applications. The QSC CP8 combines portable construction, flexible input options, and onboard processing in a compact loudspeaker.

Q-SYS Level 1 Certified Expertise at HDTV Supply

QSC Certified Expertise with Knowledgeable Support for QSC Products

HDTV Supply has QSC Level 1 certified expertise. Our team has completed QSC Level 1 Training, demonstrating foundational knowledge of the QSC platform, including system design, hardware and software, programming, and troubleshooting.

This training helps us provide knowledgeable product guidance when customers are selecting and deploying Q-SYS solutions. Contact HDTV Supply for assistance with your professional AV product selection.

Ask a Question About the QSC CP8

Have questions about the QSC CP8's inputs, coverage, power requirements, or compatibility with your sound system? Contact HDTV Supply for assistance.

Email Customer Service

QSC CP8 Powered Loudspeaker Specifications

Speaker and Amplifier
Speaker Type Active powered loudspeaker
Configuration Two-way
Enclosure Type Bass-reflex
Amplifier Power 1000W peak, as supplied
Low-Frequency Amplifier Rating 800W peak, as supplied
High-Frequency Amplifier Rating 200W peak, as supplied
Amplifier Class Class-D
Drivers
Low-Frequency Driver 1 × 8-inch (20.3 cm) woofer
High-Frequency Driver 1 × 1.4-inch (35.6 mm) compression driver
Audio Performance
Frequency Range (-10 dB) 53 Hz–20 kHz, as supplied
Frequency Range (-6 dB) 56 Hz–20 kHz, as supplied
Maximum SPL 124 dB, as supplied
Coverage Angle 90° conical
DSP Selectable voicing modes
EQ and Filters Verify detailed processing capabilities in the manufacturer documentation
Alignment Delay Listed as unavailable in the supplied specifications
Connectivity
Inputs A and B 2 × combo XLR-1/4-inch TRS inputs
Auxiliary Input 1 × 3.5mm TRS
Mix Output 1 × 3-pin XLR output
Network I/O None listed
USB I/O None listed
Wireless None listed
Mobile App Compatibility No, according to the supplied specifications
Power
AC Input 100–240 VAC, 50/60 Hz
Power Connector 1 × IEC input
Current Consumption at 1/8 Power 0.75A at 100 VAC; 1A at 120 VAC; 0.31A at 240 VAC, as supplied
Physical
Color Black
Mounting Stand mount, 35mm pole socket, suspension points, and two M8 bracket points, as supplied
Handles One top handle and one side handle
Construction Polypropylene enclosure with metal grille
Environmental Resistance Not specified as weather-resistant
Dimensions (H × W × D) 16.2 × 10.7 × 10.1 in (411.5 × 271.8 × 256.5 mm), as supplied
Product Weight 21 lb (9.5 kg), as supplied
Packaging Information
Package Weight 25.5 lb, as supplied
Box Dimensions (L × W × H) 19 × 14 × 14 in, as supplied

QSC CP8 Manuals and Downloads

QSC CP8 User Manual (PDF)

QSC CP8 Datasheet (PDF)

Q/A

Q1: What is the QSC CP8?

A: The QSC CP8 is a compact, two-way powered loudspeaker designed for portable PA, monitoring, and other professional audio applications.

Q2: How much power does the QSC CP8 provide?

A: The supplied specifications list a 1000W peak Class-D amplifier. Confirm the manufacturer's documentation for the exact rating conditions.

Q3: What speaker drivers does the CP8 use?

A: It uses an 8-inch woofer and a 1.4-inch compression driver in a two-way configuration.

Q4: What is the coverage angle of the CP8?

A: The supplied specifications list 90-degree conical coverage.

Q5: Can the CP8 be used as a stage monitor?

A: Yes. The CP8 is described as suitable for main PA, stage-monitor, and instrument-amplifier applications. Position it according to the venue and performance requirements.

Q6: What audio inputs are available on the QSC CP8?

A: It has two combo XLR-1/4-inch inputs and one 3.5mm TRS auxiliary input.

Q7: Does the CP8 include a built-in mixer?

A: Yes. Its three-input design allows multiple audio sources to be connected. Inputs A and B have individual gain controls, while Input C is controlled through Input A's gain control, according to the supplied description.

Q8: Can I connect a microphone directly to the CP8?

A: Input B is described as supporting Mic/Line selection and a Mic Boost function. Check the manual for setup instructions and input-level requirements.

Q9: Can the CP8 connect to another loudspeaker?

A: Yes. Its XLR Mix Out provides the combined mono signal for connection to another compatible speaker or audio device.

Q10: Can two CP8 speakers provide stereo sound?

A: Yes. Use two speakers and feed one the left-channel signal and the other the right-channel signal. The CP8's internal mix output is mono.

Q11: What frequency range does the QSC CP8 cover?

A: The supplied specifications list 53 Hz–20 kHz at -10 dB and 56 Hz–20 kHz at -6 dB. Verify these figures against the official datasheet before using them for system design.

Q12: Does the CP8 have onboard DSP?

A: The product description identifies onboard DSP and selectable contour settings. The supplied specification lists voicing modes; consult the manual for the available processing options.

Q13: How can the QSC CP8 be mounted?

A: The supplied specifications list stand mounting, a 35mm pole socket, suspension points, and two M8 bracket points. Verify the approved mounting hardware and installation instructions before suspending the speaker.

Q14: What power supply does the CP8 require?

A: The supplied specifications list an AC input range of 100–240 VAC at 50/60 Hz and an IEC power input. Confirm local power requirements before use.

Q15: Where can I get help choosing the QSC CP8?

A: Contact HDTV Supply at customerservice@hdtvsupply.com for assistance evaluating your PA, monitoring, or portable audio requirements.

QSC CP8 Warranty Information

QSC CP Series products are listed under a one-year manufacturer's warranty, with the possibility of five additional years of coverage through registration, for up to six years total, subject to QSC's applicable terms, eligibility, and registration requirements.

Confirm current warranty coverage and registration requirements with QSC or HDTV Supply. For assistance, contact HDTV Supply Customer Service.
