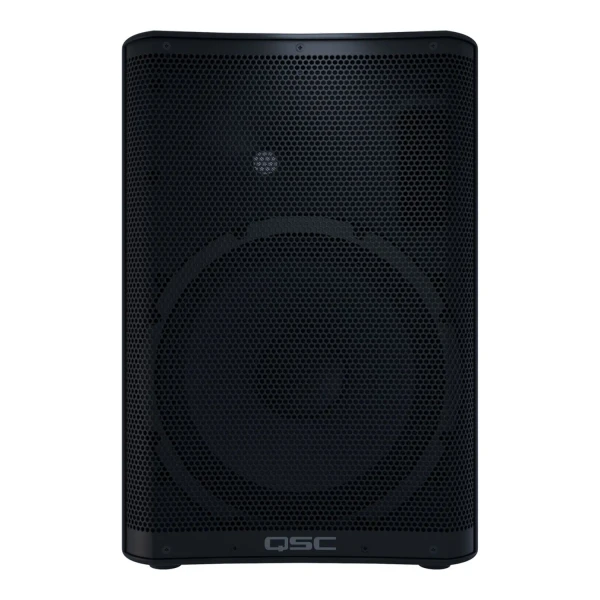

QSC CP12 Two-Way 12-Inch 1000W Compact Powered Loudspeaker with DSP Features
The QSC CP12 is a compact, powered two-way PA loudspeaker designed for portable sound reinforcement, presentations, live performances, and professional AV applications. Its onboard DSP, selectable voicing modes, and built-in mixer provide flexible sound control in a portable enclosure.
The CP12 features onboard DSP processing, a three-input mixing configuration, and selectable contour settings to help presenters, musicians, instructors, performers, and AV professionals tailor sound for different applications.
Its 12-inch woofer and 1.4-inch compression driver are powered by a Class-D amplifier module rated at 1000 W peak in the supplied specifications. The listed coverage angle is 75 degrees conical, with a maximum SPL rating of 126 dB.
The rear panel provides two combo XLR-1/4-inch inputs and a 3.5 mm TRS auxiliary input. Input A accepts line-level signals, while Input B supports microphone or line-level operation and includes a Mic Boost function specified as providing an additional 25 dB of gain.
Individual gain controls for Inputs A and B allow the CP12 to combine audio sources. The auxiliary input is controlled through the Input A gain control, according to the supplied description.
An XLR Mix Out connector sends the internally mixed mono signal to additional audio equipment. For stereo left/right playback, use two speakers and feed each one its corresponding independent channel.
QSC Directivity Matched Transition (DMT) technology is designed to help maintain consistent coverage across the listening area. Intrinsic Correction processing and selectable voicing modes support sound optimization for different applications.
The CP12 can be used as a main PA speaker, floor monitor, or instrument amplifier. Its 35 mm pole socket, integrated handles, and compact enclosure make it suitable for portable setups.
QSC CP12 Key Features
- Compact, two-way powered loudspeaker with a 12-inch woofer
- 1000 W peak Class-D amplifier module, as specified in the supplied data
- Onboard DSP with selectable voicing modes and contour settings
- Intrinsic Correction processing for sound optimization and speaker protection, as supplied
- Directivity Matched Transition (DMT) design for consistent coverage
- Two combo XLR-1/4-inch inputs and one 3.5 mm auxiliary input
- Mic/line input selection and Mic Boost function on Input B, as supplied
- Individual gain controls for the main inputs
- XLR Mix Out for connecting additional audio equipment
- Suitable for main PA, floor-monitor, and instrument-amplifier applications
- 35 mm pole socket for compatible speaker stands
- Two M8 bracket points, as specified
- Lightweight polypropylene enclosure with a metal grille
- Top and side handles for portability

QSC Certified Expertise with Knowledgeable Support for QSC Products
HDTV Supply has QSC Level 1 certified expertise. Our team has completed QSC Level 1 Training, demonstrating foundational knowledge of the QSC platform, including system design, hardware and software, programming, and troubleshooting.
This training helps us provide knowledgeable product guidance when customers are selecting and deploying Q-SYS solutions. When you purchase Q-SYS products from HDTV Supply, you are working with a team that understands the Q-SYS platform and can help you make informed product and system decisions.
Why Buy the QSC CP12 from HDTV Supply?
HDTV Supply offers professional AV equipment for live sound, commercial audio, presentations, and installation projects. Contact our team for help confirming compatibility and selecting the right equipment for your application.
Ask a Question (0)
Have questions about the QSC CP12's inputs, DSP functions, mounting options, or compatibility with your audio equipment? Contact HDTV Supply for assistance.
Include details about your audio sources, connected equipment, and intended application so our team can better assist you.
QSC CP12 Specifications
| Specification | Details |
|---|---|
| Speaker Type | Active loudspeaker |
| Configuration | Two-way |
| Enclosure Type | Bass-reflex |
| Total Output Power | 1000 W, as supplied |
| LF Amplifier Power Rating | 800 W peak, as supplied |
| HF Amplifier Power Rating | 200 W peak, as supplied |
| Amplifier Class | Class-D |
| LF Driver | 1 × 12-inch (30.5 cm) woofer |
| HF Driver | 1 × 1.4-inch (35.6 mm) compression driver |
| Frequency Range (-10 dB) | 47 Hz–20 kHz |
| Frequency Range (-6 dB) | 49 Hz–20 kHz |
| Maximum SPL | 126 dB, as supplied |
| Coverage Angle | 75° conical |
| Voicing Modes | Available, as supplied |
| DSP Functions | Voicing modes and contour settings, as supplied |
| Inputs A and B | 2 × combo XLR-1/4-inch TRS inputs |
| Auxiliary Input | 1 × 3.5 mm TRS |
| Mix Output | 1 × three-pin XLR |
| Network I/O | None listed |
| USB I/O | None listed |
| Wireless Connectivity | None listed |
| AC Input | 100–240 VAC, 50/60 Hz |
| AC Power Connector | 1 × IEC input |
| Current Consumption at 1/8 Power | 100 VAC: 0.75 A; 120 VAC: 1 A; 240 VAC: 0.31 A |
| Color | Black |
| Mounting | Stand mount and suspension points, as supplied |
| Pole Socket | 35 mm bottom socket |
| Bracket Points | 2 × M8, as supplied |
| Handles | 1 top handle and 1 side handle, as supplied |
| Construction | Polypropylene enclosure with metal grille |
| Environmental Resistance | No environmental resistance rating supplied |
| Dimensions | 20.3 × 13.8 × 12.7 inches (516 × 350 × 323 mm) |
| Product Weight | 30.3 lb (13.7 kg) |
QSC CP12 Manuals and Documentation
Note: The supplied filenames contain "CPX." Please verify that these documents correspond specifically to the CP12 before publishing or relying on them as CP12 documentation.
For additional assistance, contact HDTV Supply Customer Service.
Frequently Asked Questions
Q1: What is the QSC CP12?
A: The QSC CP12 is a compact, two-way powered PA loudspeaker with a 12-inch woofer, onboard DSP features, and multiple audio inputs for sound reinforcement applications.
Q2: How much power does the QSC CP12 provide?
A: The supplied product information lists a 1000 W peak Class-D amplifier module. Verify the manufacturer's specifications for the precise power ratings and measurement basis.
Q3: What size woofer does the CP12 use?
A: The supplied specifications list a 12-inch woofer paired with a 1.4-inch compression driver.
Q4: Does the QSC CP12 have built-in DSP?
A: Yes. The supplied product description identifies onboard DSP processing, selectable voicing modes, and contour settings. Refer to the manufacturer's documentation for the complete processing functions.
Q5: Can the QSC CP12 be used as a floor monitor?
A: Yes. The supplied description identifies the CP12 as suitable for main PA use, floor monitoring, and instrument-amplifier applications.
Q6: What audio inputs does the CP12 have?
A: The supplied specifications list two combo XLR-1/4-inch inputs and one 3.5 mm TRS auxiliary input.
Q7: Does the CP12 have a microphone input?
A: The supplied description states that Input B supports microphone/line selection and includes a Mic Boost function.
Q8: Can the QSC CP12 mix multiple audio sources?
A: Yes. The supplied description states that Inputs A and B have individual gain controls, while the auxiliary input is controlled through the Input A gain control.
Q9: Can I connect the CP12 to another speaker?
A: Yes. The CP12 includes an XLR Mix Out connector for sending the internally mixed mono signal to additional audio equipment.
Q10: Can one CP12 provide stereo output?
A: The supplied description states that the inputs are mixed internally to mono. For stereo left/right playback, use two speakers and send each speaker its corresponding channel.
Q11: What is the frequency range of the QSC CP12?
A: The supplied specifications list 47 Hz–20 kHz at -10 dB and 49 Hz–20 kHz at -6 dB.
Q12: What is the maximum SPL of the CP12?
A: The supplied specifications list a maximum SPL of 126 dB. Refer to the manufacturer's documentation for the applicable measurement conditions.
Q13: Can the CP12 be mounted on a speaker stand?
A: Yes. The supplied specifications list a 35 mm pole socket for compatible speaker stands.
Q14: What are the dimensions and weight of the CP12?
A: The supplied data lists dimensions of 20.3 × 13.8 × 12.7 inches and a product weight of 30.3 lb (13.7 kg).
Q15: Where can I find the QSC CP12 manual and datasheet?
A: The Manuals section contains the supplied user manual and datasheet links. Because the filenames contain "CPX," verify that both documents correspond to the CP12 before relying on them.
QSC CP12 Warranty Information
The QSC CP Series is listed in the supplied warranty guidance as having a one-year standard warranty, with the possibility of five additional years through registration, for up to six years total when eligible.
Extended coverage depends on the applicable QSC warranty terms, product eligibility, registration requirements, and purchase conditions. Confirm the current warranty details for the CP12 before advertising a specific coverage period.
For assistance, contact HDTV Supply Customer Service.
