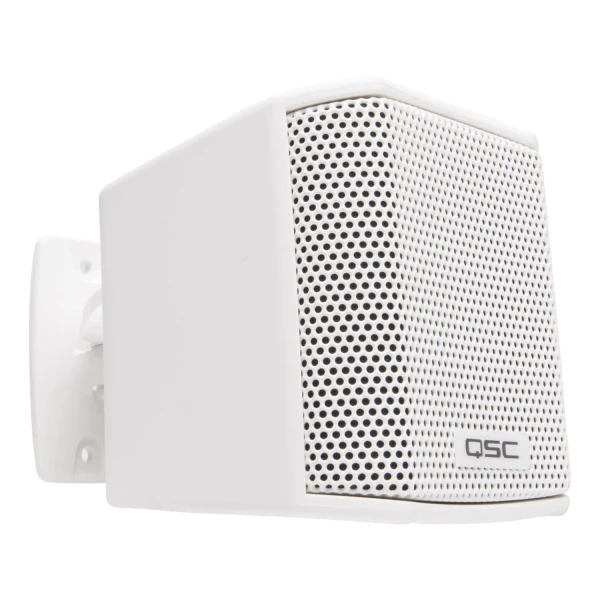

QSC AD-S.SAT-WH 2.75-Inch AcousticDesign Satellite Surface Loudspeaker (White)
The QSC AD-S.SAT-WH AcousticDesign 2.75-Inch Satellite Surface Loudspeaker is designed to deliver clear, detailed audio for commercial background music and installed sound applications. It maintains depth and clarity at lower listening levels and can be paired with compatible AcousticDesign Series SUB/SAT subwoofers.
This compact satellite loudspeaker can also operate as a standalone speaker when used with an appropriate external high-pass filter. Its sealed enclosure, 2.75-inch paper-cone driver with an inverted aluminum dust cap, and flexible mounting options make it suitable for a variety of indoor audio installations.
Features
- Compact 2.75-inch AcousticDesign satellite loudspeaker for commercial background music.
- Designed to pair with compatible AcousticDesign Series SUB/SAT subwoofers.
- Can be used as a standalone loudspeaker with an appropriate external high-pass filter.
- 16-ohm operation when the transformer is bypassed.
- Effective frequency range of 150 Hz to 20 kHz.
- Intrinsic Correction voicings available through compatible MP-M Series mixers and Q-SYS platforms, including CXD-Q Series amplifiers.
- X-Mount Mini bracket supports flexible wall and ceiling mounting orientations.
- Includes an X-Mount Mini bracket and two Euroblock plugs.
QSC Certified Expertise
Knowledgeable Support for QSC Products
HDTV Supply has QSC Level 1 certified expertise. Our team has completed QSC Level 1 Training, demonstrating foundational knowledge of the QSC platform, including system design, hardware and software, programming, and troubleshooting.
This training helps us provide knowledgeable product guidance when customers are selecting and deploying Q-SYS solutions. When you purchase Q-SYS products from HDTV Supply, you are working with a team that understands the Q-SYS platform and can help you make informed product and system decisions.
Shop the QSC AD-S.SAT-WH at HDTV Supply for a compact satellite loudspeaker solution for commercial audio installations. Contact our team for assistance with compatibility and system selection.
Ask a Question
Need help with the QSC AD-S.SAT-WH? Contact HDTV Supply for assistance with specifications, compatible subwoofers, mounting options, and system integration.
QSC AD-S.SAT-WH Specifications
| Speaker | |
|---|---|
| Model | AD-S.SAT-WH |
| Speaker Type | Passive, full-range satellite loudspeaker |
| Number of Included Speakers | 1 |
| Power Handling | 25 W |
| Recommended Amplifier Power | 25 W per channel |
| Impedance | 16 ohms with transformer bypassed |
| Enclosure Type | Sealed |
| Drivers and Performance | |
| Driver | 2.75-inch driver; supplied source describes a paper-cone woofer with an inverted aluminum dust cap. Verify driver construction against the manufacturer's datasheet. |
| Frequency Range | 150 Hz–20 kHz |
| Maximum SPL (Continuous) | 97 dB |
| Maximum SPL (Peak) | 100 dB |
| Sensitivity | 82 dB |
| Coverage Angle | 155° conical |
| Directivity Index | 6 dB |
| Directivity Factor (Q) | 4 |
| Connectivity | |
| Inputs / Outputs | 2 locking 2-pole Euroblock speaker connections |
| Maximum Wire Gauge | 12 AWG / 2 mm (as supplied; verify against manufacturer documentation) |
| Physical and Environmental | |
| Color | White (WH model; supplied specification incorrectly states Black) |
| Construction | ABS enclosure, aluminum grille (as supplied) |
| Ingress Protection | IP34 (as supplied; verify intended installation environment) |
| Operating Temperature | -4°F to 122°F (-20°C to 50°C) |
| Certifications | CE, RoHS |
| Mounting | Rear bracket mounting point; X-Mount Mini bracket included |
| Dimensions (H × W × D) | 5.4 × 3.6 × 3.5 in (13.72 × 9.14 × 8.89 cm), as supplied; confirm orientation in the datasheet |
| Product Weight | 0.9 lb (408 g) |
| Packaging Information | |
| Package Weight | 2.33 lb |
| Box Dimensions (L × W × H) | 12.6 × 6.5 × 5.2 in |
QSC AD-S.SAT-WH Manuals and Resources
Q/A
Q1: What is the QSC AD-S.SAT-WH?
The QSC AD-S.SAT-WH is a compact 2.75-inch AcousticDesign Series satellite surface loudspeaker designed for commercial background music and installed audio applications.
Q2: Can the AD-S.SAT-WH be paired with a subwoofer?
Yes. It is designed to work with compatible AcousticDesign Series SUB/SAT subwoofers.
Q3: Can this satellite loudspeaker be used on its own?
Yes. The supplied product description states that it can be used as a standalone loudspeaker with an appropriate external high-pass filter.
Q4: What is the impedance of the AD-S.SAT-WH?
The supplied specifications list 16 ohms when the transformer is bypassed.
Q5: What is its frequency range?
The supplied specifications list an effective frequency range of 150 Hz to 20 kHz.
Q6: What is the maximum SPL?
The supplied specifications list 97 dB continuous SPL and 100 dB peak SPL.
Q7: What type of mounting bracket is included?
The supplied product description states that an X-Mount Mini bracket is included. It can be rotated on four 90-degree axes for different wall or ceiling mounting orientations.
Q8: What connections does the loudspeaker use?
The supplied specifications identify locking 2-pole Euroblock speaker connections and state that two Euroblock plugs are included.
Q9: What color is the AD-S.SAT-WH?
The WH suffix identifies the white model. The supplied specification lists black, so the finish should be verified against the manufacturer datasheet before ordering.
Q10: What is included with the speaker?
The supplied description lists an X-Mount Mini bracket and two Euroblock plugs.
Q11: What is the QSC AD-S.SAT-WH best used for?
It is intended for commercial background music and installed audio systems where a compact satellite loudspeaker is suitable.
Q12: Does the AD-S.SAT-WH need a subwoofer?
It can be paired with a compatible AcousticDesign Series subwoofer for added low-frequency support. The supplied description also permits standalone use with an appropriate external high-pass filter.
Q13: Can this loudspeaker be mounted on a wall or ceiling?
The included X-Mount Mini bracket supports flexible wall or ceiling mounting orientations. Always follow the manufacturer's mounting instructions and verify that the mounting surface is suitable.
Q14: Does the AD-S.SAT-WH support QSC Intrinsic Correction voicings?
The supplied product information identifies Intrinsic Correction voicings through compatible MP-M Series mixers and the Q-SYS platform, including CXD-Q Series amplifiers. Confirm compatibility with the specific equipment and configuration.
Q15: Where can I get assistance with the QSC AD-S.SAT-WH?
Contact HDTV Supply at customerservice@hdtvsupply.com for product information, compatibility questions, and purchasing assistance.
