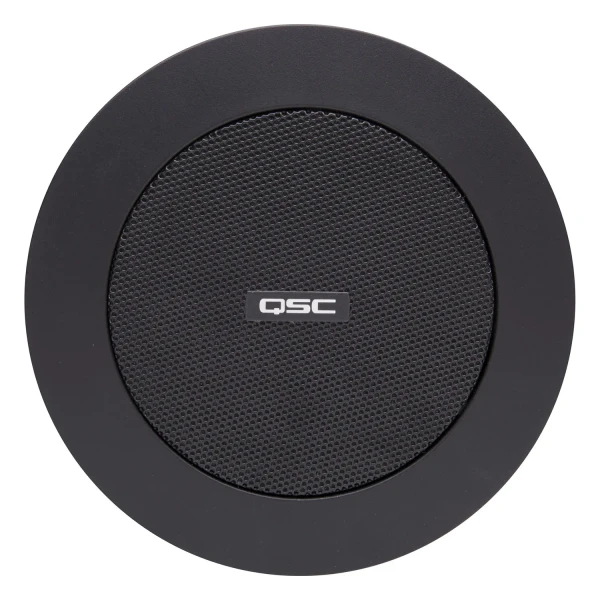

QSC AD-C.SAT-BK 2.75 Inch Small-Format Passive Ceiling Satellite Loudspeakers (Black, Pair)

QSC

QSC AD-C.SAT-BK 2.75 Inch Small-Format Passive Ceiling Satellite Loudspeakers (Black, Pair)
$248.00
Part Number:
QSC-AD-C.SAT-BK
Condition:
New
Availability:
3-5 Days
1:
2.75 Inch Full-Range Woofer
2:
Aluminum Dome Dust Cap
3:
25W at 16 Ohms
4:
Snap-Fit Magnetic Grill
5:
Free USA Shipping
6:
QSC Factory Warranty
8:
Ships with the Latest Firmware
9:
Save 5% w/Check or Wire Transfer
10:
International Shipping - Call
11:
QSC Certified

The QSC AD-C.SAT-BK 2.75-Inch Small-Format Passive Ceiling Satellite Loudspeakers (Black, Pair) are compact, passive ceiling loudspeakers designed to deliver clear background music and consistent tonal performance in commercial audio installations. Part of the QSC AcousticDesign Series, these speakers can be paired with compatible subwoofers in the AD Series SUB/SAT line.

The AcousticDesign Series is engineered for installation versatility and reliable operation across a variety of commercial environments.

The AD-C.SAT satellite loudspeakers provide refined depth and clarity, even at lower listening levels.

The SUB/SAT product line supports mix-and-match configurations, allowing compatible satellites to be paired with subwoofers to suit different installation requirements.

Intrinsic Correction voicings are available through supported Q-SYS platforms and CXD-Q Series amplifiers to help optimize system performance and simplify installation.

Each pair includes C-rings, Euroblock connectors, cut-out templates, and magnetic grilles.

READ MORE

QSC AD-C.SAT-BK Features

  • Compact 2.75-inch passive ceiling satellite loudspeakers for background music applications
  • Consistent tonal characteristics across the QSC AcousticDesign Series
  • Mix-and-match compatibility with subwoofers in the AD Series SUB/SAT line
  • 16-ohm design with locking 2-pole Euroblock-style connectors and a snap-fit magnetic grille
Q-SYS Level 1 Certified Expertise at HDTV Supply

QSC Certified Expertise

Knowledgeable Support for QSC Products

HDTV Supply has QSC Level 1 certified expertise. Our team has completed QSC Level 1 Training, demonstrating foundational knowledge of the QSC platform, including system design, hardware and software, programming, and troubleshooting.

This training helps us provide knowledgeable product guidance when customers are selecting and deploying Q-SYS solutions. When you purchase Q-SYS products from HDTV Supply, you are working with a team that understands the Q-SYS platform and can help you make informed product and system decisions.

Why Buy QSC AD-C.SAT-BK from HDTV Supply?

Shop HDTV Supply for QSC AcousticDesign Series loudspeakers and audio solutions for commercial installations. Contact our team for product guidance and assistance with your system requirements.

Shop HDTV Supply or call 833-WOLFPACK.

Ask a Question

Have a question about the QSC AD-C.SAT-BK ceiling satellite loudspeakers? Contact our team for assistance with product compatibility, specifications, or your installation requirements.

Phone: 833-WOLFPACK

Contact HDTV Supply

QSC AD-C.SAT-BK Specifications

Speaker
Model AD-C.SAT-BK
Speaker Type Passive ceiling satellite loudspeaker
Included Speakers Pair (2 speakers per product title)
Speaker Configuration Full-range
Power Handling 25 W
Impedance 16 ohms
Enclosure Type Open-back
Drivers
Full-Range Driver 1 × 2.75-inch (6.99 cm) paper-cone driver per speaker
Performance
Frequency Range 120 Hz–20 kHz
Maximum SPL, Peak 103 dB
Maximum SPL, Continuous 97 dB
Sensitivity 83 dB
Coverage Angle 170° conical
Directivity Index 4.4 dB
Directivity Factor (Q) 2.75
Connectivity
Inputs/Outputs 2 × 2-pole block speaker input/thru connections
Physical and Environmental
Certifications CE, RoHS, UL
Environmental Resistance IP34 dust and water resistance
Operating Temperature -4°F to 122°F (-20°C to 50°C)
Color Black, as indicated by the AD-C.SAT-BK model number and product title; supplied source specifications list white, so confirm the finish before ordering.
Mounting In-ceiling; 2 mounting points listed
Cutout Depth 3 inches (76.3 mm)
Cutout Size 4.5 × 4.5 inches (11.4 × 11.4 cm)
Construction Materials ABS, steel
Dimensions 5.9 × 3.3 inches (149.86 × 83.82 mm)
Weight 1.3 lb (0.6 kg) per speaker

QSC AD-C.SAT-BK Manuals and Documentation

A product-specific manual URL was not included in the supplied information. For the correct installation guide and technical documentation, please consult the QSC website or contact HDTV Supply.

Visit Q-SYS Documentation

Questions & Answers

The QSC AD-C.SAT-BK is a compact, passive 2.75-inch ceiling satellite loudspeaker designed for background music and distributed audio installations.

It is a passive loudspeaker and requires a compatible external amplifier.

The supplied specifications list power handling at 25 watts per speaker. Confirm amplifier matching with the system designer or QSC documentation.

The listed nominal impedance is 16 ohms.

The supplied frequency range is 120 Hz to 20 kHz.

Yes. The supplied product description identifies the AD Series SUB/SAT line as mix-and-match capable. Confirm compatibility and system configuration with QSC documentation.

It is designed for in-ceiling installation in distributed audio and background music systems.

The listed connection type is a 2-pole block speaker input/thru connection. The product description also identifies Euroblock connectors as included accessories.

The supplied specifications list a 170-degree conical coverage angle.

The supplied product description lists a pair of C-rings, Euroblock connectors, cut-out templates, and magnetic grilles.

Key benefits include a compact ceiling-mounted design, 2.75-inch full-range driver, 16-ohm impedance, and compatibility with the QSC AD Series SUB/SAT product line.

The AD-C.SAT-BK is passive and needs an external amplifier compatible with its 16-ohm impedance and power requirements. Consult QSC documentation or a qualified system designer to select the appropriate amplifier.

Yes. The supplied product description specifically identifies background music applications as an intended use.

The supplied specifications list a 4.5 × 4.5-inch (11.4 × 11.4 cm) cutout and a 3-inch (76.3 mm) cutout depth. Verify these measurements against the current QSC installation guide before cutting the ceiling.

You can inquire about the QSC AD-C.SAT-BK through HDTV Supply. Visit HDTV Supply or call 833-WOLFPACK for assistance with availability and ordering.

QSC AD-C.SAT-BK Warranty

Please contact HDTV Supply or consult the applicable QSC warranty documentation to confirm the warranty coverage for this product.

For assistance, call 833-WOLFPACK.
