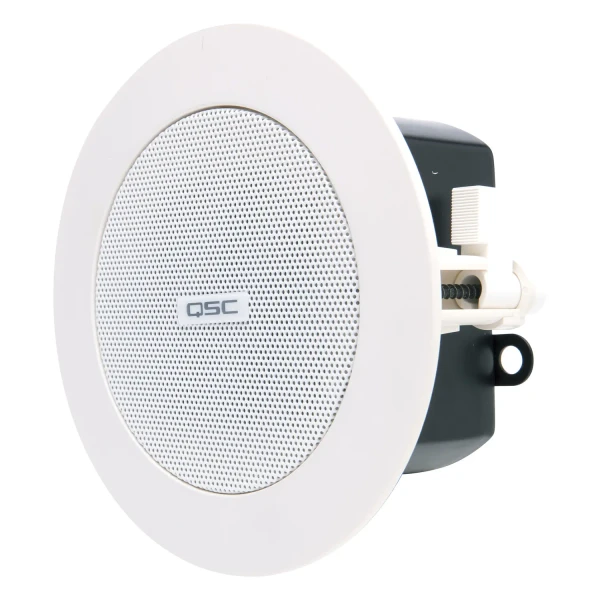

QSC AD-C.SAT-WH 2.75 Inch Small-Format Passive Ceiling Satellite Loudspeakers (White, Pair)

QSC

QSC AD-C.SAT-WH 2.75 Inch Small-Format Passive Ceiling Satellite Loudspeakers (White, Pair)
$248.00
Part Number:
QSC-AD-C.SAT-WH
Condition:
New
Availability:
3-5 Days
1:
2.75 Inch Full-Range Woofer
2:
Aluminum Dome Dust Cap
3:
25W at 16 Ohms
4:
Snap-Fit Magnetic Grill
5:
Free USA Shipping
6:
QSC Factory Warranty
8:
Ships with the Latest Firmware
9:
Save 5% w/Check or Wire Transfer
10:
International Shipping - Call
11:
QSC Certified

The QSC AD-C.SAT-WH 2.75-Inch Small-Format Passive Ceiling Satellite Loudspeakers (White, Pair) are compact, full-range ceiling speakers designed for background music applications that require clear, consistent sound and reliable performance at lower listening levels.

Part of QSC's AcousticDesign Series, these satellite speakers support flexible SUB/SAT configurations and can be paired with compatible subwoofers in the AcousticDesign SUB/SAT line. Their compact design, magnetic grilles, and blind-mount installation system make them suitable for integrated commercial audio installations.

QSC AD-C.SAT-WH Features

  • Compact 2.75-inch full-range satellite loudspeakers designed for clear background audio.
  • 16-ohm impedance supports flexible system configurations with compatible equipment.
  • Mix-and-match capability with compatible AcousticDesign SUB/SAT subwoofers.
  • Magnetic grilles, locking 2-pole Euroblock connectors, and blind-mount ceiling installation.
Q-SYS Level 1 Certified Expertise at HDTV Supply

QSC Certified Expertise

Knowledgeable Support for QSC Products

HDTV Supply has QSC Level 1 certified expertise. Our team has completed QSC Level 1 Training, demonstrating foundational knowledge of the QSC platform, including system design, hardware and software, programming, and troubleshooting.

This training helps us provide knowledgeable product guidance when customers are selecting and deploying Q-SYS solutions. When you purchase Q-SYS products from HDTV Supply, you are working with a team that understands the Q-SYS platform and can help you make informed product and system decisions.

Why Buy the QSC AD-C.SAT-WH from HDTV Supply?

HDTV Supply offers QSC audio solutions for commercial and professional installations. Contact our team for assistance with product selection and system compatibility.

Ask a Question

Have questions about the QSC AD-C.SAT-WH 2.75-Inch Small-Format Passive Ceiling Satellite Loudspeakers? Contact our team for product information and assistance with your audio installation.

Call: 833-WOLFPACK

Contact HDTV Supply

QSC AD-C.SAT-WH Specifications

Speaker
Model AD-C.SAT-WH
Package Quantity Pair (2 speakers)
Active/Passive Passive
Speaker Configuration Full-range
Power Handling 25 W
Impedance 16 Ohms
Enclosure Type Open-back
Drivers
Full-Range Driver 1 × 2.75-inch (6.99 cm) paper cone per speaker
Performance
Frequency Range 120 Hz–20 kHz
Maximum SPL 103 dB peak; 97 dB continuous
Sensitivity 83 dB
Coverage Angle 170° conical
Directivity Index 4.4 dB
Directivity/Q Factor 2.75
Connectivity
Inputs/Outputs 2 × block 2-pole speaker input/thru connections
Physical and Environmental
Certifications CE, RoHS, UL
Environmental Resistance IP34 dust/water resistance
Operating Temperature -4°F to 122°F (-20°C to 50°C)
Color White
Mounting In-ceiling, 2 mounting points
Cutout Depth 3 inches (76.3 mm)
Cutout Size 4.5 × 4.5 inches (11.4 × 11.4 cm)
Construction Materials ABS, steel
Dimensions 5.9 × 3.3 inches (149.86 × 83.82 mm)
Weight 1.3 lb (0.6 kg) per speaker

QSC AD-C.SAT-WH Manuals and Documentation

Questions & Answers

The QSC AD-C.SAT-WH is a pair of compact, passive 2.75-inch ceiling satellite loudspeakers designed for background music and installed audio systems.

These are passive speakers and require a compatible external amplifier.

Each speaker uses one 2.75-inch (6.99 cm) paper-cone full-range driver.

The supplied specifications list a power handling rating of 25 W per product specification. Confirm the manufacturer's rating and recommended amplifier requirements when designing the system.

The supplied specifications list a nominal impedance of 16 ohms.

The supplied specifications list a frequency range of 120 Hz to 20 kHz.

Yes. The product description states that the AD-C.SAT series can be paired with compatible subwoofers in the AcousticDesign SUB/SAT line. Confirm system compatibility before installation.

The supplied specifications list two block 2-pole speaker input/thru connections. The product description also mentions Euroblock connectors in the package.

Yes. They are designed for in-ceiling mounting and feature a blind-mount system, according to the supplied product information.

The supplied description lists a pair of C-rings, Euroblock connectors, cut-out templates, and magnetic grilles.

These speakers offer a compact design, 16-ohm impedance, magnetic grilles, and compatibility with suitable AcousticDesign SUB/SAT systems.

Yes. The product description identifies them as suitable for background music applications that require clear sound at lower listening levels.

A compatible external amplifier is required. Match the amplifier to the speakers' impedance and verified power rating, and consult the manufacturer documentation for recommended system configuration.

The product description states that Intrinsic Correction voicings are available through compatible MP-M Series mixers and Q-SYS platforms, including CXD-Q Series amplifiers. Confirm support for the specific system configuration.

Contact HDTV Supply at 833-WOLFPACK for assistance with ordering, availability, and product questions about the QSC AD-C.SAT-WH loudspeaker pair.

QSC AD-C.SAT-WH Warranty

Please contact HDTV Supply or consult QSC's official warranty documentation to confirm the applicable warranty coverage for this product.
