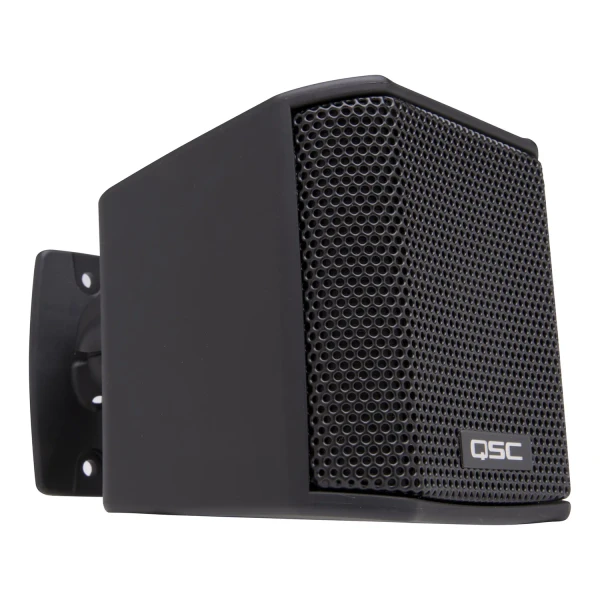

QSC AD-S.SAT-BK 2.75-Inch AcousticDesign Satellite Surface Loudspeaker (Black)
The QSC AD-S.SAT-BK AcousticDesign 2.75-Inch Satellite Surface Loudspeaker is designed to deliver depth and clarity for commercial background music and installed audio applications. It can be paired with compatible AcousticDesign Series SUB/SAT subwoofers or used as a standalone loudspeaker with an appropriate external high-pass filter.
Featuring a compact sealed enclosure and a 2.75-inch paper-cone driver with an inverted aluminum dust cap, this satellite loudspeaker provides extended high-frequency presence. Its X-Mount Mini bracket offers flexible wall and ceiling mounting options.
Features
- Compact 2.75-inch AcousticDesign satellite loudspeaker for commercial background music.
- Designed to pair with compatible AcousticDesign Series SUB/SAT subwoofers.
- Can operate as a standalone loudspeaker with an appropriate external high-pass filter.
- 16-ohm operation with the transformer bypassed.
- Effective frequency range of 150 Hz to 20 kHz.
- Intrinsic Correction voicings available through compatible MP-M Series mixers and Q-SYS platforms, including CXD-Q Series amplifiers.
- X-Mount Mini bracket rotates across four 90-degree axes for flexible wall or ceiling mounting.
- Includes an X-Mount Mini bracket and two Euroblock plugs.
QSC Certified Expertise
Knowledgeable Support for QSC Products
HDTV Supply has QSC Level 1 certified expertise. Our team has completed QSC Level 1 Training, demonstrating foundational knowledge of the QSC platform, including system design, hardware and software, programming, and troubleshooting.
This training helps us provide knowledgeable product guidance when customers are selecting and deploying Q-SYS solutions. When you purchase Q-SYS products from HDTV Supply, you are working with a team that understands the Q-SYS platform and can help you make informed product and system decisions.
Shop the QSC AD-S.SAT-BK at HDTV Supply for a compact satellite loudspeaker solution for installed audio systems. Contact our team for help with compatibility and product selection.
Ask a Question
Have questions about the QSC AD-S.SAT-BK? Contact HDTV Supply for assistance with specifications, compatible subwoofers, mounting options, and system integration.
QSC AD-S.SAT-BK Specifications
| Speaker | |
|---|---|
| Model | AD-S.SAT-BK |
| Speaker Type | Passive, full-range satellite loudspeaker |
| Number of Included Speakers | 1 |
| Power Handling | 25 W |
| Recommended Amplifier Power | 25 W per channel |
| Impedance | 16 ohms with transformer bypassed |
| Enclosure Type | Sealed |
| Drivers and Performance | |
| Driver | 2.75-inch driver; supplied product description identifies a paper-cone woofer with an inverted aluminum dust cap. Verify driver construction against the manufacturer's datasheet. |
| Frequency Range | 150 Hz–20 kHz |
| Maximum SPL (Continuous) | 97 dB |
| Maximum SPL (Peak) | 100 dB |
| Sensitivity | 82 dB |
| Coverage Angle | 155° conical |
| Directivity Index | 6 dB |
| Directivity Factor (Q) | 4 |
| Connectivity | |
| Inputs / Outputs | 2 locking 2-pole Euroblock speaker connections |
| Maximum Wire Gauge | 12 AWG / 2 mm (as supplied; verify against manufacturer documentation) |
| Physical and Environmental | |
| Color | Black |
| Construction Material | ABS enclosure, aluminum grille (as supplied) |
| Ingress Protection | IP34 (as supplied; verify installation requirements) |
| Operating Temperature | -4°F to 122°F (-20°C to 50°C) |
| Certifications | CE, RoHS |
| Mounting | Rear bracket mounting point; X-Mount Mini bracket included |
| Dimensions | 5.4 × 3.6 × 3.5 in (13.72 × 9.14 × 8.89 cm), as supplied |
| Product Weight | 0.9 lb (408 g) |
| Packaging Information | |
| Package Weight | 2.33 lb |
| Box Dimensions (L × W × H) | 12.6 × 6.5 × 5.2 in |
QSC AD-S.SAT-BK Manuals and Resources
Q/A
Q1: What is the QSC AD-S.SAT-BK?
The QSC AD-S.SAT-BK is a compact 2.75-inch AcousticDesign Series satellite surface loudspeaker designed for commercial background music and installed audio applications.
Q2: Can the AD-S.SAT-BK be paired with a subwoofer?
Yes. It is designed to work with compatible AcousticDesign Series SUB/SAT subwoofers.
Q3: Can this satellite loudspeaker be used on its own?
Yes. The supplied product description states that it can be used as a standalone loudspeaker with an appropriate external high-pass filter.
Q4: What is the impedance of the AD-S.SAT-BK?
The supplied specifications list 16 ohms when the transformer is bypassed.
Q5: What is its frequency range?
The supplied specifications list an effective frequency range of 150 Hz to 20 kHz.
Q6: What is the maximum SPL?
The supplied specifications list 97 dB continuous SPL and 100 dB peak SPL.
Q7: What mounting bracket is included?
The supplied product description identifies an X-Mount Mini bracket, which supports different wall or ceiling mounting orientations.
Q8: What connections does the loudspeaker use?
The supplied specifications identify locking 2-pole Euroblock speaker connections and state that two Euroblock plugs are included.
Q9: What color is the AD-S.SAT-BK?
The BK model designation identifies the black version of the loudspeaker.
Q10: What accessories are included?
The supplied description lists an X-Mount Mini bracket and two Euroblock plugs.
Q11: What is the QSC AD-S.SAT-BK best used for?
It is intended for commercial background music and installed sound systems where a compact satellite loudspeaker is appropriate.
Q12: Does the AD-S.SAT-BK need a subwoofer?
It can be paired with a compatible AcousticDesign Series subwoofer for additional low-frequency support. The supplied description also allows standalone use with an appropriate external high-pass filter.
Q13: Can the AD-S.SAT-BK be mounted on a wall or ceiling?
The included X-Mount Mini bracket supports flexible wall or ceiling mounting orientations. Follow the manufacturer's mounting instructions and confirm that the mounting surface is suitable.
Q14: Does the AD-S.SAT-BK support QSC Intrinsic Correction voicings?
The supplied product information identifies Intrinsic Correction voicings through compatible MP-M Series mixers and the Q-SYS platform, including CXD-Q Series amplifiers. Confirm compatibility with your specific equipment.
