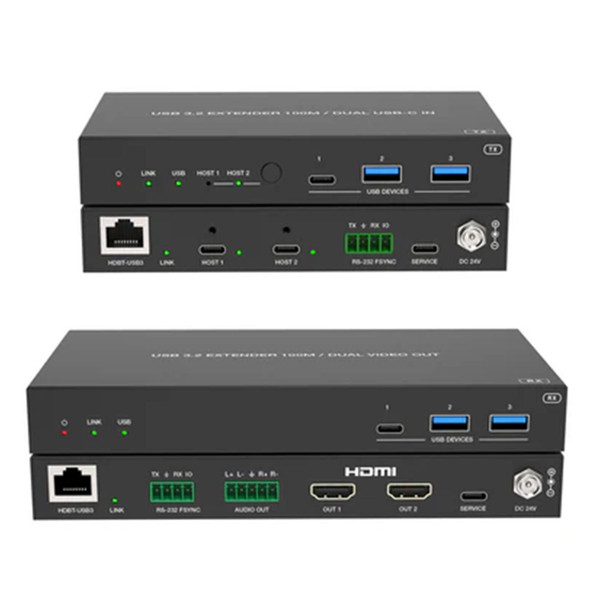

This DVDO Xtend-2USBC-2HDMI-100 2-Host USB-C & USB 3.2 Gen 1 100m Extender over HDBaseT with 2 HDMI Outputs is a 2-host HDBaseT extender that can transmit USB 3.2 Gen 1 or USB 2.0 signals up to 328ft/100m via a single CAT6a cable and display them on two HDMI displays.
The transmitter includes 2 selectable (auto or manual switching) USB-C Host ports and 1 USB-C + 2 USB-A Device ports.
The receiver includes 2 HDMI outputs, 1 USB-C + 2 USB-A Device ports and a balanced / unbalanced analog audio output.
The two HDMI outputs can be either mirrored outputs or they can display different content using screen extend (from one host at a time).
DVDO-Xtend-2USBC-2HDMI-100 supports RS-232 pass-through and bi-directional 24V PoC.
DVDO Xtend-2USBC-2HDMI-100 2-Host USB-C & USB 3.2 Gen 1 100m Extender over HDBaseT with 2 HDMI Outputs Features:
- Extension of USB 3.2 Gen 1 up to 100m/328ft via CAT6a cable
- USB 3.2 Gen 1 connectivity with data transfer rate up to 5Gbps
- Backwards compatible with USB 2.0 and 1.1
- Hardware acceleration for isochronous and bulk transfer
- Built-in DisplayLink technology for video over USB on dual HDMI outputs, with resolutions up to 4K@60Hz
- Tx supports auto and manual switching selectable via switch button or API commands
- Rx supports audio de-embedding to balanced / unbalanced analog output
- Firmware upgrade via USB-C service port
- FSYNC GPIO pass-through for industrial camera use
- RS-232 pass-through and API control
- Bi-directional 24V PoC
Why not buy this DVDO Xtend-2USBC-2HDMI-100 2-Host USB-C & USB 3.2 Gen 1 100m Extender over HDBaseT with 2 HDMI Outputs today?
DVDO-Xtend-2USBC-2HDMI-100 User Manual
DVDO-Xtend-2USBC-2HDMI-100 Datasheet
HDTV Supply partners with DVDO to sell and support all DVDO products
Why not buy this DVDO Xtend-2USBC-2HDMI-100 2-Host USB-C & USB 3.2 Gen 1 100m Extender over HDBaseT with 2 HDMI Outputs today?
What maximum USB speed and distance does this extender support over CAT6a?
A: It supports USB 3.2 Gen 1 (up to 5 Gbps) extension up to 100 m / 328 ft over a single CAT6a cable.
Can the device carry USB 2.0 devices as well as USB 3.2 Gen 1?
A: Yes — it is backwards compatible with USB 2.0 and USB 1.1.
Can the two HDMI outputs show different content (extended desktop) or are they always mirrored?
A: They can be either mirrored or used for screen extend so they may display different content from one host at a time.
Are control and firmware updates supported, and how are they accessed?
A: Yes — the unit supports RS-232 pass-through and API control, and firmware upgrades via the USB‑C SERVICE port.
Do I need a special type of Ethernet cable to meet the manufacturer's recommendation?
A: The manual recommends using CAT6A F/FTP 23AWG cable and a direct interconnection method without cross‑connecting.
What USB device power levels are indicated for the ports?
A: The downlink USB‑C device ports provide up to 5V/1A and the downlink USB‑A ports provide up to 5V/1.5A per the panel descriptions.
