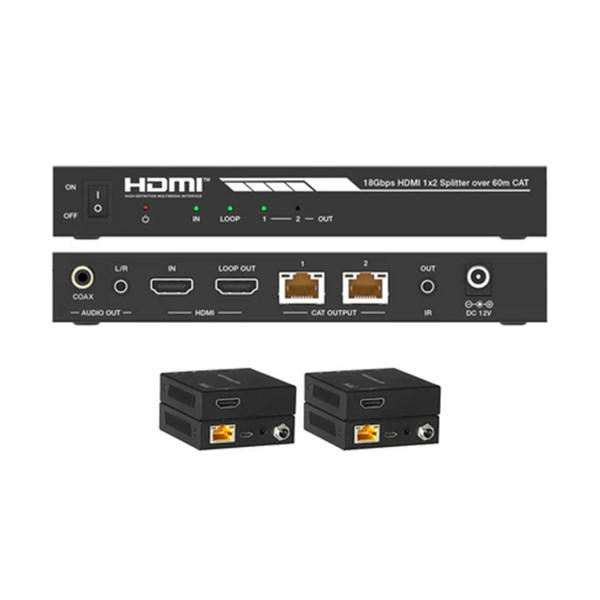

This DVDO Splitter-12-CAT 4K 1x2 HDMI Splitter with CAT Outputs is an 18Gbps 1x2 HDMI splitter that can distribute a single HDMI source signal to any 2 display devices, with supported video resolutions up to 4K2K@50/60Hz 4:4:4.
The splitter has 1 HDMI loop output in addition to the 2 Cat outputs and comes with 2 Cat receivers.
The HDMI signal transmission distance can be extended up to 115ft/35m at the resolution of 4K2K@60Hz, or 164ft/50m at 4K2K@30Hz, or 197ft/60m at 1080p@60Hz via a single Cat6/6a/7 cable.
DVDO-Splitter-12-CAT supports one-way IR control signal pass-through, audio extract function and advanced EDID management.
DVDO Splitter-12-CAT 4K 1x2 HDMI Splitter with CAT Outputs Features:
- Includes 1x2 splitter and 2 Cat receivers
- HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant
- 18Gbps video bandwidth
- Supports video resolutions up to 4K2K@50/60Hz 4:4:4
- HDR, HDR10+, HLG, Dolby Vision
- Up to 7.1CH HD audio pass-through
- Digital and analog audio de-embedded outputs
- Extend the signal transmission distance up to 115ft/35m at the resolution of 4K2K@60Hz, 164ft/50m at 4K2K@30Hz, 197ft/60m at 1080P@60Hz via a single Cat6/6a/7 cable
- 1 HDMI input, 1 HDMI loop output and 2 Cat outputs
- 20-60Hz IR control source equipment from Rx side
- Advanced EDID management
- One-way PoC function (only from transmitter to receiver)
Why not buy this DVDO Splitter-12-CAT 4K 1x2 HDMI Splitter with CAT Outputs today?
DVDO-Splitter-12-CAT User Manual
DVDO-Splitter-12-CAT Datasheet
HDTV Supply partners with DVDO to sell and support all DVDO products
Why not buy this DVDO Splitter-12-CAT 4K 1x2 HDMI Splitter with CAT Outputs today?
Does the product support HDCP and which versions?
A: Yes — it is HDCP 2.2 and HDCP 1.x compliant.
Can the transmitter power the CAT receivers over the CAT cable?
A: Yes — the manual notes the transmitter can power the receiver via a CAT cable (one-way PoC from transmitter to receiver).
Does the splitter provide audio de‑embedding and what outputs are available?
A: Yes — it provides digital and analog de-embedded audio with a coaxial RCA and L/R 3.5mm analog output.
Are there remote/serial control options for status and settings?
A: Yes — the device offers a SERVICE (micro USB) serial port and supports ASCII commands for querying status and configuring outputs and EDID.
Do I need surge protection for this splitter?
A: The manual recommends using surge protection to protect the unit's sensitive components from electrical spikes and extend equipment life.
