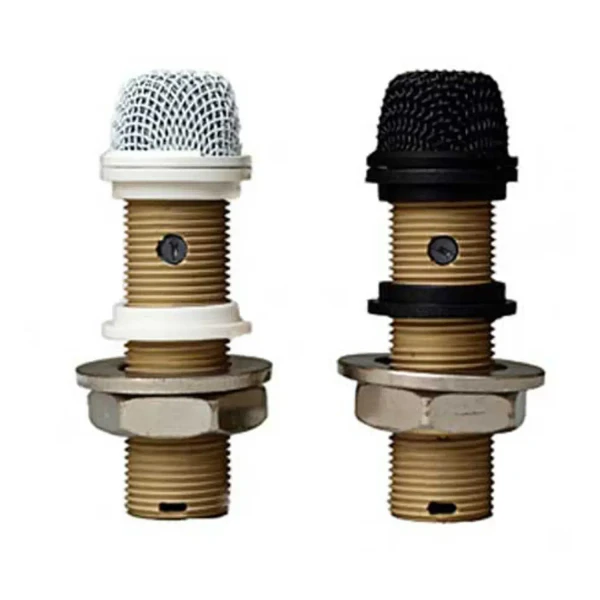

This CAD Audio 220VP Variable Polar Pattern Condenser Boundary Button Microphone, 90Hz to 17KHz Frequency Response, 125Ohms Impedance, White is an inconspicuous, continuously-variable polar pattern, button-style, condenser boundary microphone designed for surface installation.
Special attention has been given to design to resist interference from cell phones, two-way communication and other RF devices.
The integral 80Hz, 12dB/octave high-pass filter removes unwanted low-frequency energy to improve intelligibility.
The all metal, threaded body and shock-absorbing bushings make for easy installation in surfaces up to 3" thick.
When mounted on a hard surface, it will take advantage of the "boundary effect" signal-to-noise ratio increase.
It is terminated with a standard 3-pin XLRM-type connector recessed in the body of the microphone.
It features a continuously-variable polar pattern so it can shorten the list of products an audio system designer needs to consider when boundary condenser microphones are specified.
The installer can precisely tailor the polar pattern for the best performance depending upon the application or environment.
CAD Audio 220VP Variable Polar Pattern Condenser Boundary Button Microphone, 90Hz to 17KHz Frequency Response, 125Ohms Impedance, White Features:
- Capture crystal-clear audio with this versatile boundary microphone, perfect for meetings.
- Experience superior sound quality thanks to the continuously variable polar pattern control.
- This condenser microphone offers excellent sensitivity for detailed voice reproduction.
- Effortlessly connect this durable boundary mic to your system using its standard XLR output.
- Enjoy reliable performance with a wide frequency response, ideal for professional audio.
- Designed for demanding environments, its robust construction ensures lasting durability
Why not buy this CAD Audio 220VP Variable Polar Pattern Condenser Boundary Button Microphone, 90Hz to 17KHz Frequency Response, 125Ohms Impedance, White form HDTV Supply today?
CAD Audio 220VP Variable Polar Pattern Condenser Boundary Button Microphone, 90Hz to 17KHz Frequency Response, 125Ohms Impedance, White Specifications:
- Microphone
- Operating Principal: Permanently-Biased Condenser
- Polar Pattern: Continuously Variable
- Performance
- Frequency Response: 90 Hz - 17 kHz
- Sensitivity: -32 dBV / 25 mV at 1 Pa
- Impedance: 125 Ohms
- Max SPL: 120 dB
- Self Noise: 24 dBA
- Power
- Power Requirements: P12, P24, P48, 4 mA
- Connectivity
- Connector: 3-Pin XLRM-Type
- Technical Specifications
- Polarity: Positive pressure on diaphragm corresponds to positive voltage on pin 2 relative to pin 3 at XLR3M-type connector
- Finish: Durable Matte Black Urethane
- RF Immunity: Meets or exceeds EN55103-2, E1, E2, E3 and E4
- Certificate: RoHS Compliant
- Physical
- Dimensions (L x Dia): 3.35 x 0.78" / 8.5 x 1.98 cm
- Weight: 3.9 oz / 110.56 g
Why not buy this CAD Audio 220VP Variable Polar Pattern Condenser Boundary Button Microphone, 90Hz to 17KHz Frequency Response, 125Ohms Impedance, White form HDTV Supply today?
What is the 220VP and what is it designed for?
A: The CAD Audio 220VP Variable Polar Pattern Condenser Boundary Button Microphone is a variable-polar-pattern condenser boundary microphone. The product is specified for continuously variable polar pattern and is intended to address the audio requirements described for this model.
The product page describes this model specifically around these capabilities, so it should be specified according to the application rather than treated as a generic audio device.
What type of audio device is the 220VP?
A: The CAD Audio 220VP Variable Polar Pattern Condenser Boundary Button Microphone uses the design described as a variable-polar-pattern condenser boundary microphone. Its product-specific configuration includes 90 Hz to 17 kHz frequency response, which defines how it captures, transmits, monitors, or routes audio.
This configuration is intended to provide the signal behavior expected from the model in its stated professional audio use.
What are the main audio or pickup characteristics of the 220VP?
A: The key signal characteristics include 125 ohms impedance. These characteristics determine how the product handles the intended sound source or monitoring workflow.
Using the appropriate pickup or signal configuration helps maintain consistent audio capture and makes the product easier to match to the surrounding system.
What frequency or operating range does the 220VP support?
A: The operating specification listed for the CAD Audio 220VP Variable Polar Pattern Condenser Boundary Button Microphone includes 90 Hz to 17 kHz frequency response. Users should follow the stated operating range for the intended system configuration.
Where a wireless frequency band is listed, the system should be operated in accordance with applicable local frequency regulations and the compatible transmitter/receiver configuration.
What controls or signal-management features are provided?
A: The product includes white button-style surface-mount design. These controls or operating features help the user configure the microphone or audio system for the application.
These features allow the user to adapt the unit to the source, room, performance, or installation requirements without changing the basic product architecture.
What connectivity or accessories are included with the 220VP?
A: The CAD Audio 220VP Variable Polar Pattern Condenser Boundary Button Microphone is supplied with or provides white button-style surface-mount design. The exact connection method and included accessories depend on this model configuration.
Using the supplied or specified accessories helps preserve compatibility and ensures the product is connected as intended by the manufacturer.
What applications is the 220VP suited for?
A: The CAD Audio 220VP Variable Polar Pattern Condenser Boundary Button Microphone is suited to the applications described for this model, including studio, live sound, or fixed installation. Its design focuses on the requirements identified for this specific product.
The combination of the product construction and stated features makes it appropriate for the professional audio environments identified for the model.
How does the 220VP support reliable operation?
A: Reliable operation is supported by features such as 90 Hz to 17 kHz frequency response. For wireless models, correct frequency coordination and receiver/transmitter setup should be followed; for wired models, appropriate signal and power connections should be used.
Correct setup, suitable cabling, and proper frequency coordination where applicable are important for dependable day-to-day performance.
What should users consider when integrating the 220VP?
A: When integrating the CAD Audio 220VP Variable Polar Pattern Condenser Boundary Button Microphone, users should match the product pickup pattern, frequency range, connection type, and included accessories to the rest of the audio chain. The listed specifications should be used as the reference for system design.
Before installation, verify the connector type, power requirements, wireless band where applicable, and the receiving equipment input requirements.
What are the key technical features to consider when specifying the 220VP?
A: Key specification points include continuously variable polar pattern, 90 Hz to 17 kHz frequency response, 125 ohms impedance, white button-style surface-mount design. These details are the most relevant when comparing the model with other audio products or selecting it for a particular installation.
Together, these specifications define the intended operating characteristics of the model and provide the technical basis for selecting it for a project.
