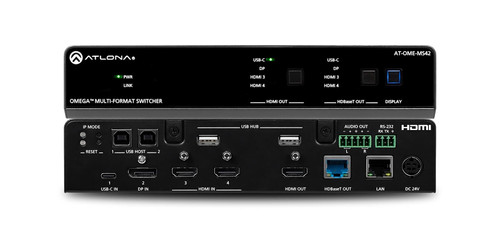

This Atlona AT-OME-MS42-HDBT 4x2 Matrix Switcher With USB Hub & HDBaseT Input is a 4×2 matrix switcher with USB-C, HDBaseT, and HDMI inputs, plus HDMI and HDBaseT outputs. Part of the Omega™ Series of integration products for modern AV communications and collaboration, the OME-MS42-HDBT is HDCP 2.2 compliant and features HDBaseT extension for video up to 4K/60 4:2:0, plus embedded audio, control, Ethernet, and USB over distances up to 330 feet (100 meters).
The local HDMI and USB-C inputs, and HDMI output support 4K HDR and 4K/60 4:4:4 at data rates up to 18 Gbps. Additionally, 4K downscaling to 1080p @ 60, 30, or 24 Hz is available for the HDMI output when connected to an HD sink. The integrated USB extension addresses the challenge of connecting between USB devices at remote locations, and is ideal for software video conferencing and touch or interactive displays.
The OME-MS42-HDBT features switching for up to four host PCs through USB 2.0 type B and USB-C ports, and remotely over HDBaseT. A built-in USB 2.0 hub provides connectivity for two peripheral devices such as camera, microphone, speakerphone, or keyboard and mouse.
Automatic Display Control: The OME-MS42-HDBT can provide control to a display through TCP/IP, RS-232, or CEC*, without the need for a separate control system. This simplifies system design and integration while reducing costs. With automatic display control, the OME-MS42-HDBT can trigger a display to power on automatically whenever a laptop or other device is connected to the OME-MS42-HDBT. At the end of the presentation, when the presenter disconnects the laptop, the OME-MS42-HDBT forces the display to power off.
Ease of presenter interaction with the system, and the savings incurred by automatic display shutdown provide a significant return on investment. The OME-MS42-HDBT display control capability can also be triggered by an external control system.
AV and USB Host Switching: When the HDMI and HDBaseT outputs are mirrored, the OME-MS42-HDBT can automatically select an AV input source based on detection of the 5 volt hot plug detect (HPD) signal, as well as active video. This ensures reliable auto-switching operation for all video sources, including DVRs, DisplayPort / Mini DisplayPort adapters, and other devices that always maintain the HPD line at the 5 volt “high” state but may not be delivering active video.
Additionally, the OME-MS42-HDBT provides switching for USB host sources. Up to four USB hosts can be connected through the USB-C and two USB type B ports, as well as a remote USB host connection over HDBaseT from an Omega Series transmitter. Switching for USB hosts can be manual or automatic. Auto-switching for USB host sources can be independent, based on USB signal presence, or set to follow AV input switching.
Atlona AT-OME-MS42-HDBT 4x2 Matrix Switcher With USB Hub & HDBaseT Input Feature:
- 4×2 AV matrix switcher with USB-C®, HDBaseTTM, and HDMI® inputs
- USB-C input for AV, USB data, and device charging (up to 60 watts)
- HDBaseT and HDMI outputs with selectable AV switching modes
- USB 2.0 interfacing and extension up to 330 feet (100 meters)
- 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling (local ports)
- Selectable 4K to 1080p downscaling
- 4×2 AV matrix switcher with USB-C, HDBaseT, and HDMI inputs
- Multi-channel audio compliant
- USB-C input for AV, USB data, and device charging (up to 60 watts)
- HDBaseT and HDMI outputs with selectable AV switching modes
- EDID management
- Video, audio, power, USB data, control, and Ethernet over category cable utilizing HDBaseT technology
Atlona AT-OME-MS42-HDBT 4x2 Matrix Switcher With USB Hub & HDBaseT Input Specifications:
| Video | |
|---|---|
| Signal | Input – HDMI, USB-C, HDBaseT Output – HDMI, HDBaseT |
| HDCP | 1.4 / 2.2 |
| Pixel Clock | 300 MHz |
| UHD/HD/SD | 4096×2160@60(3)/50/30/25/24 Hz 3840×2160@60(3)/50/30/25/24 Hz 1080p@60/59.9/50/30/29.97/25/24/23.98 Hz 1080i@30/29.97/25 Hz 720p@60/59.94/50 Hz 576p@50 Hz 576i@25 Hz 480p@60/59.96 Hz 480i@30 Hz |
| VESA | 2560×1600, 2048×1536, 1920×1200, 1680×1050, 1600×1200, 1440×900, 1400×1050, 1280×1024, 1280×800, 1366×768, 1360×768, 1152×864, 1024×768, 800×600, 640×480 |
| VESA 21:9 | 2560×1080 @ 30 Hz 4:4:4 2560×1080 @ 60 Hz 4:4:4 3440×1440 @ 30 Hz 4:4:4 3440×1440 @ 50 Hz 4:4:4 3840×1600 @ 30 Hz 4:4:4 |
| USB-C | Up to 4K/UHD @ 60 Hz |
| Color Space | YUV, RGB |
| Chroma Subsampling | 4:4:4, 4:2:2, 4:2:0 |
| Color Depth | 8-bit, 10-bit, 12-bit |
| HDR | HDR10, Hybrid-Log Gamma (HLG), Dolby® Vision™ @ up to 60 Hz (HDMI & USB-C inputs only) |
| Audio | |
| HDMI / HDBaseT Pass-Through | PCM 2.0, LPCM 5.1, LPCM 7.1, Dolby® Digital, Dolby Digital Plus™, Dolby TrueHD, Dolby Atmos®, DTS® Digital Surround™, DTS-HD Master Audio™, DTS:X® |
| Bit Depth | Up to 24 bits |
| Analog Audio Format | Stereo 2-Channel |
| Balanced Output | +4 dBu nominal gain, +20 dB headroom |
| Frequency Response | 20 Hz to 20 kHz, ±0.5 dB |
| THD+N | < 0.004% (20 Hz to 20 kHz) |
| SNR | > 105 dB at 1 kHz |
| Sample Rate | 32 kHz–192 kHz |
| USB | |
| Signal | 2.0 |
| Maximum Data Rate | Local 480 Mbps; HDBaseT 120 Mbps |
| USB-C | Audio, Video, data, and up to 60W charging |
| Internal Hubs | 1 hub via USB-B; 2 hubs via USB-C |
| Resolution / Distance | |
| HDMI IN/OUT | 4K: 15 ft / 5 m 1080p: 30 ft / 10 m |
| CAT5e | 4K: 295 ft / 90 m 1080p: 330 ft / 100 m |
| CAT6/6a/7 | 4K: 330 ft / 100 m 1080p: 330 ft / 100 m |
| Ethernet | |
| Port | 1 x RJ45 |
| Standards | HTTPS, Telnet, mDNS |
| Speeds | 10/100/1000 Mbps |
| Addressing | DHCP, Static |
| RS-232 | |
| Port | 1 x 3-pin captive screw (TX, RX, GND) |
| Use | Control & configuration; bidirectional pass-through over HDBaseT |
| Baud Rates | 2400–115200 |
| Data Flow | Bidirectional |
| CEC | |
| Port | HDMI Type A, 19-pin |
| Triggering | IP, RS-232, web server |
| Buttons & Indicators | |
| Buttons | HDMI OUT, HDBaseT OUT; IP MODE, RESET |
| Indicators | PWR, HDBT IN, HDBT OUT (green) HDMI OUT (red) HDBT IN, USB-C IN, HDMI 3, HDMI 4 (green) DISPLAY (blue/red) |
| Connectors | |
| HDMI IN | 2 × Type A, 19-pin |
| HDBaseT IN | 1 × RJ45 |
| USB-C IN | 1 × USB-C, 24-pin (AV input) |
| HDMI OUT | 1 × Type A |
| HDBaseT OUT | 1 × RJ45 |
| USB HUB | 2 × USB-A |
| USB HOST | 2 × USB-B |
| AUDIO OUT | 5-pin balanced/unbalanced |
| RS-232 | 1 × 3-pin |
| LAN | 1 × RJ45 (1000Base-T) |
| DC 24V | 1 × 4-pin |
| Environmental | |
| Operating Temp | +32 to +122 °F / 0 to +50 °C |
| Storage Temp | -4 to +140 °F / -20 to +60 °C |
| Operating Humidity | 20% to 90%, non-condensing |
| Max Altitude | 2000 m |
| Power | |
| Consumption | Unit: 8.6 W Full load: 104 W |
| BTU/h | Unit: 29.3 Full load: 354.8 |
| External Power Supply | Input: 100–240 V AC Output: 24V / 6.25A DC |
| Dimensions (H × W × D) | |
| Unit | 1.73 × 8.64 × 10 in / 44 × 219.5 × 254 mm |
| Power Supply | 1.60 × 2.60 × 6.20 in / 40 × 66 × 157 mm |
| Weight | |
| Device | 3.46 lb / 1.57 kg |
| Certification | |
| Device | CE, FCC |
| Power Supply | CE, FCC, cULus, RoHS |
| Compliance | |
| NDAA-889 | Yes |
| TAA | Yes |
Atlona AT-OME-MS42-HDBT 4x2 Matrix Switcher With USB Hub & HDBaseT Input Manuals:
Atlona AT-OME-MS42-HDBT User Manual
Atlona AT-OME-MS42-HDBT Datasheet
