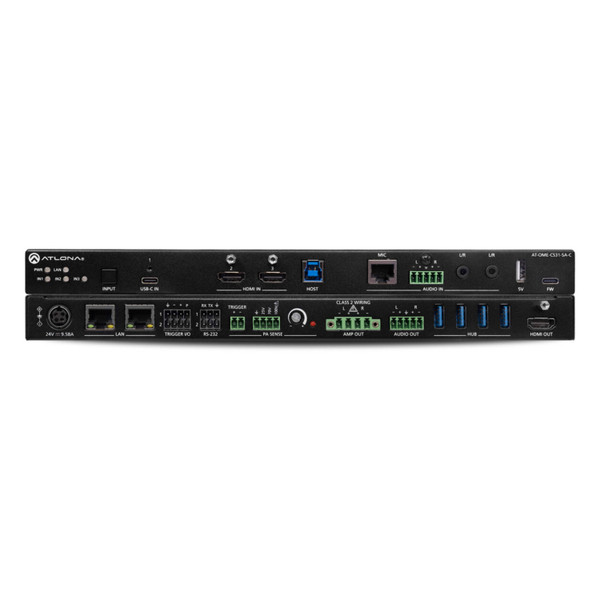

This Atlona AT-OME-CS31-SA-C 3-Input USB-C & HDMI Switcher, Mixer Amplifier & USB Hub is an Omega™ Series AV presentation and collaboration system featuring AV switching, USB routing, audio mixing, amplification, and control making it ideal for modern classroom and meeting environments.
AV Switching: The OME-CS31-SA-C includes 3×1 switching between one USB-C input, two HDMI inputs, and one HDMI output. The USB-C input supports AV, data, and device powering up to 60 watts over a single connection, reducing cable clutter.
USB Routing: The system features a four port USB hub for connecting cameras, speakerphones, interactive displays, and other devices as well the ability to switch them between two host devices. Making OME-CS31-SA-C ideal for use with popular video conferencing and UC (unified communications) platforms.
Automation and Control: The OME-CS31-SA-C can provide control to a display through TCP/IP, RS-232, or CEC*, without the need for a separate control system. With automatic display control, the switcher can trigger a display to power on automatically whenever a laptop or other device is connected. At the end of the presentation, when the presenter disconnects, the OME-CS31-SA-C forces the display to power off. Alternatively, the switcher can trigger based on occupancy with the Atlona AT-OCS-900N or another sensor connected to its digital I/O.
Atlona AT-OME-CS31-SA-C 3-Input USB-C & HDMI Switcher, Mixer Amplifier & USB Hub Feature:
- 1 USB-C® and 2 HDMI® inputs, 1 HDMI output
- USB routing between 2 hosts and 4 peripherals
- 2 x 25 watts @ 4/8 ohms amplifier
- Powerful digital signal processing for audio mixing, AEC, and more
- Duck program audio when signal detected on balanced input
- Mute audio with PA sense or contact closure
- Automatic display control via activity or occupancy
- Also available: AT-OME-CS31-SA with 3 HDMI inputs and AT-OME-CS31-SA-HDBT with 1 HDBaseT™ and 2 HDMI inputs
- 3×1 AV switcher with one USB-C input, two HDMI inputs, and one HDMI output
- USB-C input delivers up to 60 watts of charging for laptops and mobile devices
- Integrated USB 3.0 hub with two host ports and four peripheral ports
- 2 x 25 watts @ 4/8 ohms amplifier (stereo or dual mono) or 1 x 50 watts @ 4/8 ohms (bridged)
- One balanced stereo line level input and two unbalanced stereo line level inputs on 3.5 mm connections
- Balanced stereo line level output allows the mixed signal to be passed to an assistive listening system or separate amplifier
- Two RS-232 ports for control of the switcher or peripheral devices
- Two digital I/O ports for automated control from occupancy sensors or other third party devices
- 5V USB charging port for powering external devices such as a Bluetooth® receiver
- Energy Star® qualified for power efficiency and cost savings
- Automatic display control changes display power state via CEC, IP, or RS-232 based on active or standby mode of the switcher or status of an AT-OCS-900N network-enabled occupancy sensor or other sensors connected to the digital I/O ports
- Auto-switching selects active input when sources are connected or if there is a change in source power status
- Manages EDID communications with the source through the connected display’s EDID or internally stored EDID
- HDCP 2.2 compliant
- 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling – HDMI inputs only
- Supports HDR10, HLG, and Dolby® Vision™ HDR formats – HDMI inputs only
- Intuitive GUI-based configuration using integrated web server
- Front panel LED indicators provide status for power, input selection, and LAN
- Low profile enclosure for mounting behind a display or under a desk or table
- Included accessories – 2 meter locking USB-C cable, captive-screw mating connectors, surface mount brackets, power supply
Atlona AT-OME-CS31-SA-C 3-Input USB-C & HDMI Switcher, Mixer Amplifier & USB Hub Specifications:
| Video | |
|---|---|
| Signal | Input – HDMI Output – HDMI / HDBaseT |
| Copy Protection | HDCP 2.2 |
| Pixel Clock | 600 MHz |
| UHD/HD/SD |
4096×2160 (DCI) @ 24/25/30/50/60 Hz 3840×2160 (UHD) @ 24/25/30/50/60 Hz 1920×1080p @ 23.97/24/25/29.97/30/50/60 Hz 1920×1080i @ 50/60 Hz 1280×720p @ 30/50/60 Hz 720×576p @ 50 Hz 720×576i @ 25/50 Hz 720×480p @ 60 Hz 640×480p @ 60 Hz |
| VESA |
2560×1600 @ 60 Hz (RB) 2048×1536 @ 60 Hz 2048×1200 @ 60 Hz 2048×1080 @ 60 Hz 1920×1200 @ 60 Hz (RB) 1920×1080 @ 60 Hz (RB) 1680×1050 @ 60 Hz 1600×1200 @ 60 Hz 1600×900 @ 60 Hz 1440×900 @ 60 Hz 1400×1050 @ 60 Hz 1366×768 @ 60 Hz 1360×768 @ 60 Hz 1280×1024 @ 60 Hz 1280×800 @ 60 Hz 1280×768 @ 60 Hz 1280×720 @ 60 Hz 1024×768 @ 60 Hz 800×600 @ 60 Hz 640×480i @ 29.97/30 Hz |
| Color Space | YUV, RGB |
| Chroma Subsampling | 4:4:4, 4:2:2, 4:2:0 |
| Color Depth | 8-bit, 10-bit, 12-bit |
| HDR | Up to 4K HDR10 @ 60 Hz, 4K HLG @ 60 Hz, 4K Dolby Vision @ 60 Hz |
| Audio | |
| HDMI / HDBaseT Pass-Through |
PCM 2.0 LPCM 5.1 / 7.1 Dolby Digital Dolby Digital Plus Dolby TrueHD Dolby Atmos DTS Digital Surround DTS-HD Master Audio DTS:X |
| Bit Depth | Up to 24 bits |
| Analog Audio |
Stereo 2-Channel Balanced Output: +4 dBu nominal, +19 dB headroom Frequency Response: 20 Hz – 20 kHz ±0.5 dB THD+N: < 0.006% (20 Hz–20 kHz) SNR: >105 dB @ 1 kHz, 0 dBFS, unweighted |
| Sample Rate | 32, 44.1, 48, 88.2, 96, 176.4, 192 kHz |
| Ethernet | |
| Port | 1 × RJ45 |
| Protocols | HTTP, Telnet |
| Speeds | 10/100 Mbps |
| Addressing | DHCP, Static (front panel, IP, RS-232, web server) |
| RS-232 | |
| Port | 5 × 5-pin captive screw |
| Use | Unit and external device control |
| Baud Rates | 2400–115200 |
| Data Flow | Bidirectional |
| IR | |
| Ports | 5 × 5-pin captive screw |
| Use | Pass-through control (source ↔ sink) |
| Frequency Range | 30–60 kHz |
| CEC | |
| Ports | 1 × HDMI OUT (Type A) 4 × RJ45 (HDBaseT OUT) |
| Triggering | Through IP, RS-232, web server |
| Resolution / Distance | |
| HDMI IN/OUT | 4K: 15 ft / 5 m 1080p: 30 ft / 10 m |
| CAT5e/6 | 4K: 230 ft / 70 m 1080p: 330 ft / 100 m |
| CAT6a/7 | 4K: 330 ft / 100 m 1080p: 330 ft / 100 m |
| Buttons & Indicators | |
| Buttons | POWER, EDID (2 × momentary tact-type) |
| Indicators | HDMI IN/OUT, HDBaseT 1–4, LOCK, INT, LEARN (9 × blue LEDs) |
| Connectors | |
| HDMI IN | 1 × Type A |
| HDMI OUT | 1 × Type A |
| HDBaseT OUT | 4 × RJ45 |
| LAN | 1 × RJ45 |
| AUDIO OUT | 1 × 5-pin captive screw |
| RS-232 / IR | 5 × 5-pin captive screw |
| FW | 1 × USB-C |
| DC 48V | 1 × 2-pin captive screw |
| Environmental | |
| Operating Temperature | 32–122°F (0–50°C) |
| Storage Temperature | -4–140°F (-20–60°C) |
| Humidity | 20%–90%, non-condensing |
| Power | |
| Consumption (with 4 PoE) | 71.5 W |
| Idle (no PoE) | 11.5 W |
| BTU/h | 39.2 |
| Power Supply | 100–240 V AC, 50/60 Hz Output: 48 V / 2.08 A DC |
| Dimensions | |
| Unit | 1.73 × 8.64 × 10 in (44 × 219.5 × 254 mm) |
| Power Supply | 1.3 × 2.24 × 5.35 in (33 × 57 × 136 mm) |
| Weight | |
| Device | 3.75 lb (1.7 kg) |
| Certification | |
| Device | CE, RoHS, FCC |
| Power Supply | CE, FCC, UL, CUL, TUV-GS, CB, PSE, CCC |
| Compliance | |
| NDAA-899 | Yes |
