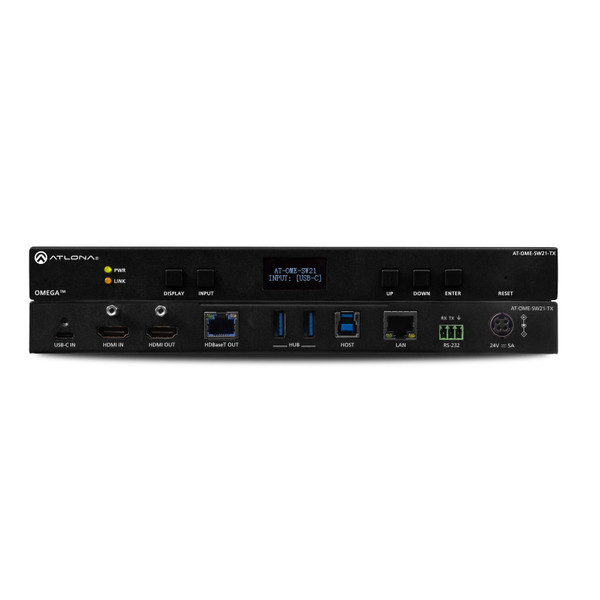

Atlona AT-OME-SW21-TX HDBaseT Transmitter With USB-C

Atlona

Atlona AT-OME-SW21-TX HDBaseT Transmitter With USB-C
$1,250.00
Part Number:
AT-OME-SW21-TX
UPC:
846352007706
Condition:
New
Availability:
In Stock
1:
Two-Input Switcher
2:
USB-C Input For AV
3:
Mirrored HDBaseT & HDMI Outputs
4:
Integrated USB 3.2 Gen 1 Hub
5:
Switch Between USB Host Sources
6:
Free USA Shipping
7:
3-Year Atlona Warranty

This Atlona AT-OME-SW21-TX HDBaseT Transmitter With USB-C is a compact, versatile switcher and HDBaseT transmitter with USB-C and HDMI inputs. It sends video up to 4K/60 4:2:0, plus embedded audio, control, and USB 2.0 over distances up to 330 feet (100 meters). Part of the Omega™ Series of integration products for modern AV communications and collaboration, the OME-SW21-TX features mirrored HDMI and HDBaseT outputs and is HDCP 2.3 compliant. With a matching HDBaseT receiver, the integrated USB extension addresses the challenge of connecting between USB devices at remote locations, and is ideal for software video conferencing and interactive touch displays.

The OME-SW21-TX includes a USB hub which supports USB 3.2 Gen 1 up to 5 Gbps, and USB 2.0 up to 480 Mbps for local devices and 120 Mbps over HDBaseT. Host switching is provided with USB type B and USB-C interfaces, plus two USB type A interfaces for peripherals as well as integrating with USB 3.2 Gen 1 extenders. Both inputs and the local HDMI output support 4K HDR and 4K/60 4:4:4 at HDMI data rates up to 18 Gbps. Additionally, 4K downscaling to 1080p is available for the HDMI output when connected to an HD sink. The OME-SW21-TX is ideal for use with Omega Series receivers, switchers with HDBaseT inputs, or even as a standalone AV system unit.

Atlona AT-OME-SW21-TX HDBaseT Transmitter With USB-C Feature:

  • Two-input switcher and HDBaseT transmitter with USB-C and HDMI inputs
    • Provides flexible BYOD capability without the need for adapters
    • Ideal for conference rooms, huddle spaces, and collaboration environments
  • USB-C input for AV, USB data, and device charging (up to 60 watts)*
    • Compatible with laptops and tablets supporting USB-C AV output
    • Enables single-cable connectivity for video, data, and collaboration
    • * Device charging up to 60 watts available with optional AT-PS-245-D4 power supply
  • Mirrored HDBaseT and HDMI outputs
    • Provides simultaneous local HDMI output and long-distance HDBaseT transmission
    • Supports flexible AV system designs with local display and remote receiver integration
  • Video, audio, power, USB data, control, and Ethernet over HDBaseT
    • Transmits 4K/UHD video up to 330 feet (100 meters) with CAT6/6a/7 cable, or 295 feet (90 meters) with CAT5e cable
    • Supports USB 2.0 extension up to 120 Mbps over HDBaseT
    • Built-in USB hub supports USB 2.0 data rates up to 480 Mbps locally
  • Integrated USB 3.2 Gen 1 hub
    • USB-C and USB type B interfaces for host PC connectivity
    • Two USB type A ports for peripherals such as camera, microphone, speakerphone, or touch display
    • Supports simultaneous USB 3.2 Gen 1 up to 5 Gbps and USB 2.0 hub connections
    • Ideal for software-based video conferencing and USB extender integration
  • USB host switching capability
    • Supports two USB hosts via USB-C and USB type B ports
    • USB switching can follow AV input selection or operate independently
  • 4K/UHD @ 60 Hz capability with HDR support
    • Local HDMI and USB-C ports support 4K/UHD @ 60 Hz with 4:4:4 chroma sampling
    • HDBaseT output supports 4K/UHD @ 60 Hz with 4:2:0 chroma subsampling
    • Compatible with HDR10, Dolby Vision, and HLG formats
  • HDCP 2.3 compliant with backward compatibility
    • Supports latest High-bandwidth Digital Content Protection specification
    • Backward-compatible with HDCP 1.4 sources
    • HDCP compliance can be disengaged via Velocity Device Manager, control system, or web GUI
  • Selectable 4K to 1080p downscaling for HDMI output
    • Integrated video processing for down-converting 4K/UHD to 1080p
    • Downscaling bypass mode supports pass-through up to 4K/60 4:4:4 and 4K HDR
    • Ideal for systems using 1080p displays
  • Remote or local powering options
    • Receives IEEE 802.3af PoE from compatible Atlona receiver or switcher over HDBaseT
    • Optional AT-PS-245-D4 power supply enables 60 watt USB-C charging and remote receiver powering
    • Allows installation at tables or remote locations without local AC power
  • Automatic display control over HDBaseT
    • Automatically controls display power based on video presence or occupancy sensor activity
    • Control via IP, RS-232, or CEC
    • Includes adjustable projector lamp cooldown mode
    • Embedded display drivers available through Velocity system
  • Automatic input selection
    • Uses hot plug detect and video detection technology
    • Switches automatically when new source is connected or power status changes
  • Multi-channel audio compliant
    • Passes through PCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS Digital Surround, DTS-HD Master Audio, and DTS:X
    • Supports multi-channel audio from HDMI and USB-C inputs
  • EDID and HDCP management
    • Manages EDID communication via display EDID or internal EDID settings
    • Automatically reports HDCP compliance to source devices
    • Blocks protected content to non-compliant displays with visual confirmation screen
  • Intuitive GUI-based configuration
    • Integrated web server for menu-based configuration of network, input switching, signal processing, display control, EDID, and HDCP settings
    • Enables fast setup and troubleshooting from PC or mobile device
  • TCP/IP and RS-232 control
    • Compatible with Atlona Velocity control platform and third-party systems
    • Flexible integration for professional AV environments
  • Centralized management with Velocity Device Manager
    • Network-based configuration and firmware management for Atlona devices
    • Supports enterprise-wide AV system administration
  • Field-updatable firmware
    • Firmware updates supported via web GUI or Velocity Device Manager
  • Front panel LEDs and LCD display
    • LED indicators show power and HDBaseT link status
    • LCD displays IP address, input signal status, firmware version, and communication settings
    • Enables quick monitoring and configuration without accessing web interface
  • Low-profile enclosure for discreet installation
    • 1.02 inch high design for installation below tables or inside furniture
  • Included accessories
    • Surface mounting hardware and 2 meter USB-C male-to-male cable (USB 3.2 Gen 1)

Why not buy this Atlona AT-OME-SW21-TX HDBaseT Transmitter With USB-C from HDTV Supply today?

Atlona AT-OME-SW21-TX HDBaseT Transmitter With USB-C Specifications:

  • Video signal compatibility
    • Inputs: DisplayPort Alternate Mode over USB-C and HDMI
    • Outputs: HDBaseT and HDMI
    • Supports HDCP 1.4, 2.2, and 2.3 copy protection
    • Pixel clock up to 600 MHz, 300 MHz over HDBaseT
  • Supported UHD, HD, and SD resolutions
    • 4096×2160 (DCI) @ 60/50/30/25/24 Hz
    • 3840×2160 (UHD) @ 60/50/30/25/24 Hz
    • 2560×1440 @ 30 Hz
    • 1920×1080p @ 60/59.94/50/30/29.97/25/24/23.98 Hz
    • 1920×1080i @ 30/29.97/25 Hz
    • 1280×720p @ 60/59.94/50/30 Hz
    • 720×576i/p @ 50 Hz and 720×480i/p @ 60 Hz
  • VESA resolution support (60 Hz)
    • 2560×1600, 2048×1536, 1920×1200, 1680×1050
    • 1600×1200, 1440×900, 1400×1050, 1280×1024
    • 1280×800, 1366×768, 1360×768, 1152×864
    • 1024×768, 800×600, 640×480
  • Ultra-wide 21:9 VESA formats
    • 2560×1080 @ 30 Hz and 60 Hz 4:4:4
    • 3440×1440 @ 30 Hz and 50 Hz 4:4:4
    • 3840×1600 @ 30 Hz 4:4:4
  • Integrated scaler functionality
    • Input: 4K @ 24/30/60 Hz
    • Output: 1080p @ 24/30/60 Hz
    • Selectable 4K to 1080p downscaling
  • Chroma subsampling and color depth
    • Supports 4:4:4, 4:2:2, and 4:2:0 chroma subsampling
    • Color depth: 8-bit, 10-bit, and 12-bit
    • HDR formats up to 4K HDR10, HLG, and Dolby Vision at 60 Hz
  • Audio pass-through formats
    • PCM 2.0, LPCM 5.1, LPCM 7.1
    • Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos
    • DTS Digital Surround, DTS-HD Master Audio, DTS:X
    • Maximum bit rate: 24 Mbits/s
    • Sample rates: 32 kHz to 192 kHz
  • USB connectivity
    • USB 3.2 Gen 1 up to 5 Gbps and USB 2.0 up to 480 Mbps
    • Hosts: 1 USB 3.0 Type-C and 1 USB 3.0 Type-B
    • Internal USB hub with 2 USB Type-A ports
  • Rear panel connectors
    • 1 USB Type-C, 24-pin female
    • 2 HDMI Type A, 19-pin female
    • 1 HDBaseT output, RJ45
    • 1 USB Type-B host port
    • 2 USB Type-A hub ports
  • Indicators and front panel controls
    • Power LED indicator, green
    • HDBaseT link LED indicator, yellow
    • Buttons: Display, Input, Up, Down, Enter
    • Reset: 5 momentary tact-type buttons and 1 recessed reset button
  • Transmission distance
    • USB-C: 6.6 feet (2 meters) for 4K and 1080p
    • HDMI in/out: 15 feet (5 meters) at 4K, 30 feet (10 meters) at 1080p
    • CAT5e: 295 feet (90 meters) at 4K, 330 feet (100 meters) at 1080p
    • CAT6/6a/7: 330 feet (100 meters) at 4K and 1080p
  • Power requirements
    • Powered via PoE from connected receiver or optional 24V 5A power supply
    • Power consumption and BTU/h: TBD
  • Environmental specifications
    • Operating temperature: 32 to 104°F (0 to 40°C)
    • Storage temperature: -4 to 140°F (-20 to 60°C)
    • Humidity: 20% to 90% non-condensing
  • Physical specifications
    • Dimensions: 0.98 × 5.91 × 9.84 inches (25 × 150.2 × 250 mm)
    • Weight: 1.65 pounds (0.75 kg)
  • Certifications and compliance
    • CE and FCC certified
    • NDAA-899 compliant
