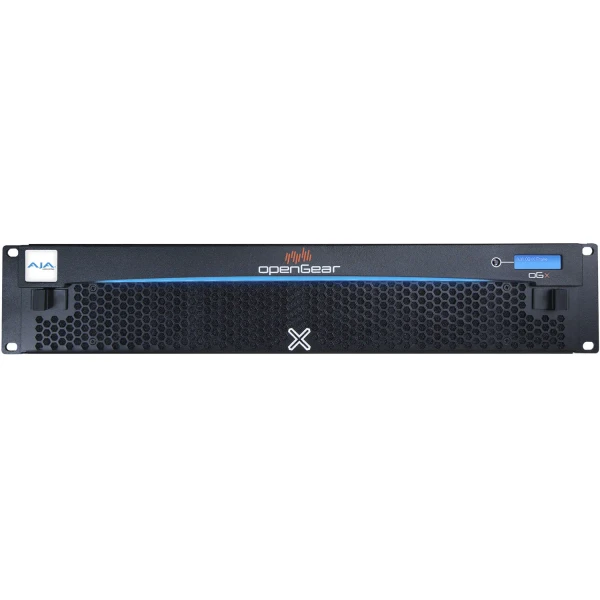

This AJA OG-X-FR openGear-Compatible 2RU Rackframe is a 2RU high openGear frame which is compatible with any openGear card and offers Dashboard support for the latest AJA Dashboard compatible openGear cards.
The frame has a 20-slot capacity with excellent cooling capabilities for high-density applications and compatibility with advanced openGear connectivity options for supported cards.
READ MORE
AJA HDBNC-2RX-12G 12G/6G-SDI Dual Coax HD-BNC KUMO 6464-12G Receiver Module Features:
- 2RU frame with capacity for up to 20 openGear cards
- 600 watt power supply with integral cooling, optional 2nd power supply
- Front LCD display for name, IP address and fault identification
- FrameGlow customized identification and alarming
- Support for analog, digital, video, audio, SDI and IP modules in the same frame
- Removable front door and air filter for easy fan servicing and maintenance
- Standard DashBoard control system for setup, control and monitoring
- Includes preinstalled standard network card (MFC-8322-S)
Why not buy this AJA OG-X-FR openGear-Compatible 2RU Rackframe from HDTV Supply today?
AJA HDBNC-2RX-12G 12G/6G-SDI Dual Coax HD-BNC KUMO 6464-12G Receiver Module Specifications:
- Frame Controller and Fans
- Total Power: 50W maximum
- +12V Rail: 4A (48W maximum)
- -7.5V Rail: 0.2A (1.5W maximum)
- GFC-8322
- Total Power: 3.9W maximum
- +12V Rail: 0.2A (2.4W maximum)
- -7.5V Rail: 0.2A (1.5W maximum)
- Reference Inputs
- Number of Inputs: 2 looping
- Level: 1Vpp nominal
- Signal: Analog video sync (Blackburst or tri-level), or AES/EBU DARS
- Impedance: 75 ohms terminating
- Return Loss: >30 dB to 30 MHz
- Maximum DC on REF Input: ±1V
- Card Slots
- 20 Slots
- Total Power Available: 500W
- Maximum Card Power
- High Density (Split) Rear Module: 15W per card, accommodates two openGear cards and requires two slots in the frame chassis
- Standard Rear Module: 30W per card, accommodates one openGear card and requires two slots in the frame chassis
- Standard Rear Module with Integrated Cooling: 45W per card
- Double Wide Rear Module: 60W per card
- Double Wide Rear Module with Integrated Cooling: 75W for a single card
- Multi-slot Assembly with Integrated Cooling: 90W, receiving power from two or more midplane connectors
- Size (W x D x H)
- 2RU - 19.0" x 16.82" x 3.5" (483 x 427 x 90 mm)
- Power
- Total Output: Combined outputs not to exceed 500W
- Input: 6.3A (650W)
- Output 1: 12V, 41.6A, 500W maximum
- Output 2: -7.5V, 5A, 37.5W maximum
- Environment
- Safe Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Operating Relative Humidity: <90% noncondensing
