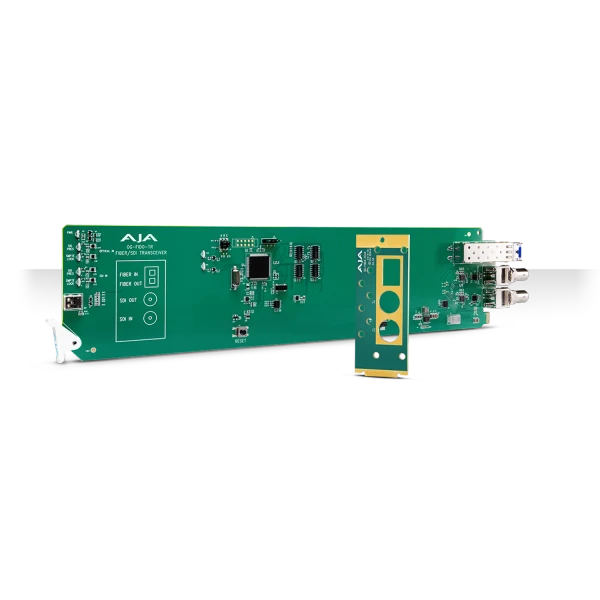

This AJA OG-FiDO-TR openGear 1-Channel 3G-SDI/LC Single Mode LC Fiber Transceiver is a state of the art, openGear compatible 3G-SDI/Fiber transceiver. Both 3G-SDI to Fiber and Fiber to 3G-SDI conversions are supported.
openGear cards offer unmatched flexibility and cost efficiency for 3G-SDI to Fiber conversion, allowing for long cable runs up to 10 km (32,808 ft) for single mode.
Designed for use in high density openGear 2RU frames including AJA’s OG-X-FR frame, new DashBoard software support on Windows, macOS and Linux offers remote control and monitoring of the openGear architecture and provides convenient and industry standard configuration, monitoring and control options over a PC or local network.
READ MORE
AJA OG-FiDO-TR openGear 1-Channel 3G-SDI/LC Single Mode LC Fiber Transceiver Features:
- Video Formats: 150 Mbps - 3 Gbps, format agnostic
- Inputs: 1x 3G-SDI BNC; 1x Single Mode LC Fiber
- Outputs: 1x 3G-SDI BNC; 1x Single Mode LC Fiber
- Supports pass-through of SDI metadata, including HDR
- Monitor via openGear DashBoard
- Input Present and Input SMPTE Lock LEDs
- Automatic detection and reclocking
- 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
- Nominal Wavelength: 1260-1620 nm
- Power: 2.5 watts
- Hot swap capable
- Compatible with OG-X-FR, OG-3-FR and DFR-8321 openGear frames
Why not buy this AJA OG-FiDO-TR openGear 1-Channel 3G-SDI/LC Single Mode LC Fiber Transceiver from HDTV Supply today?
AJA OG-FiDO-TR openGear 1-Channel 3G-SDI/LC Single Mode LC Fiber Transceiver Specifications:
- Video Formats
- 150 Mbps - 3 Gbps, format agnostic
- Video Input Digital
- 1-channel independent 3G-SDI BNC Input, SMPTE-259/292/424
- 1-channel Single Mode LC Fiber Input, SMPTE-297
- Nominal Wavelength: 1260-1620 nm
- Optical Sensitivity: -18 dBm (Max)
- Overload Power: -3 dBm (Min)
- Video Output Digital
- 1-channel independent 3G-SDI BNC Output, SMPTE-259/292/424
- 1-channel Single Mode LC Fiber Output, SMPTE-297
- Nominal Wavelength: 1310 nm
- Optical Power: -5 dBm (Min), 0 dBm (Max)
- Extinction Ratio: 7.5 dB (Typ)
- Reclocking
- 270 Mbps
- 1.483 Gbps
- 1.485 Gbps
- 2.966 Gbps
- 2.970 Gbps
- Auto Select
- All other rates are passed through and not reclocked
- User Interface
- openGear DashBoard network control software via Windows, macOS, or Linux
- Size
- openGear standard form factor, front slot and rear card
- Two slots required for each card
- Weight
- 0.5 lb (0.3 kg)
- Power
- openGear frame compatible, 2.5 watts max per card
- Environment
- Safe Operating Temperature: 0 to 40°C (32 to 104°F)
- Safe Storage Temperature (Power OFF): -40 to 60°C (-40 to 140°F)
- Operating Relative Humidity: 10-90% noncondensing
- Operating Altitude: <3,000 meters (<10,000 feet)
