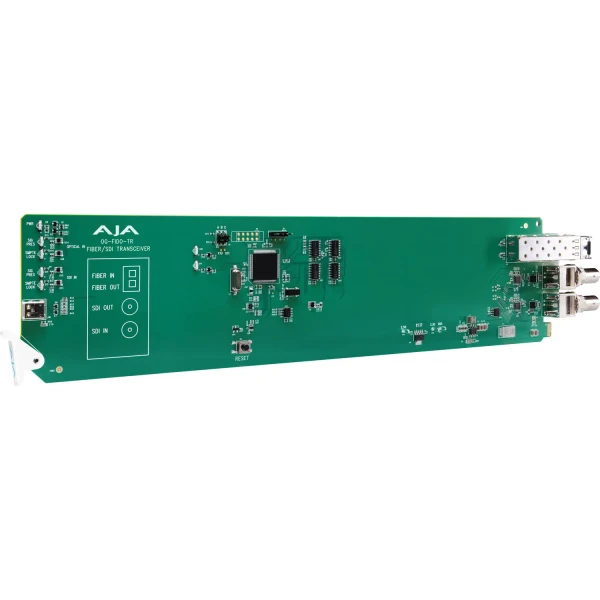

This AJA OG-FiDO-TR-MM openGear 1-Channel 3G-SDI/LC Multi-Mode LC Fiber Transceiver offers unmatched flexibility and cost efficiency for 3G-SDI Fiber conversion, allowing for cable runs up to 700 m (2296 ft) for OM4 and 300 m (984 ft) for OM3 for Multi-Mode fiber optic cables - useful for eliminating ground loop problems.
AJA OG-FiDO-TR-MM openGear 1-Channel 3G-SDI/LC Multi-Mode LC Fiber Transceiver Features:
- Video Formats: 150 Mbps - 3 Gbps, format agnostic
- Inputs: 1x3G-SDI BNC; 1x Multi-Mode LC Fiber
- Outputs: 1x 3G-SDI BNC; 1xl Multi-Mode LC Fiber
- Supports pass-through of SDI metadata, including HDR
- Monitor via openGear DashBoard
- Input Present and Input SMPTE Lock LEDs
- Automatic detection and reclocking
- 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
- Nominal Wavelength: 850 nm
- Power: 2.5 watts
- Hot swap capable
- Compatible with OG-X-FR, OG-3-FR and DFR-8321 openGear frames
Why not buy this AJA OG-FiDO-TR-MM openGear 1-Channel 3G-SDI/LC Multi-Mode LC Fiber Transceiver from HDTV Supply today?
AJA OG-FiDO-TR-MM openGear 1-Channel 3G-SDI/LC Multi-Mode LC Fiber Transceiver Specifications:
- Video Formats: 150 Mbps - 3 Gbps, format agnostic
- Video Input Digital
- 1-channel independent 3G-SDI BNC Input, SMPTE-259/292/424
- 1-channel Multi-Mode LC Fiber Input, SMPTE-297
- Nominal Wavelength: 850 nm
- Optical Sensitivity: 0dBm (Min), -15dBm (Max)
- Video Output Digital
- 1-channel independent 3G-SDI BNC Output, SMPTE-259/292/424
- 1-channel Multi-Mode LC Fiber Output, SMPTE-297
- Nominal Wavelength: 850 nm
- Optical Power: -7dBm (Min), -2dBm (Max)
- Extinction Ratio: 7.5dB (Typ)
- Reclocking:
- 270 Mbps
- 1.483 Gbps
- 1.485 Gbps
- 2.966 Gbps
- 2.970 Gbps
- Auto Select
- All other rates are passed through and not reclocked
- User Interface: openGear DashBoard network control software via Windows, macOS, or Linux
- Size:
- openGear standard form factor, front slot and rear card
- Two slots required for each card
- Weight: 0.5 lb (0.3 kg)
- Power: openGear frame compatible, 2.5 watts max per card
- Environment
- Safe Operating Temperature: 0 to 40 C (32 to 104 F)
- Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
- Operating Relative Humidity: 10-90% noncondensing
- Operating Altitude: <3,000 meters (<10,000 feet)
