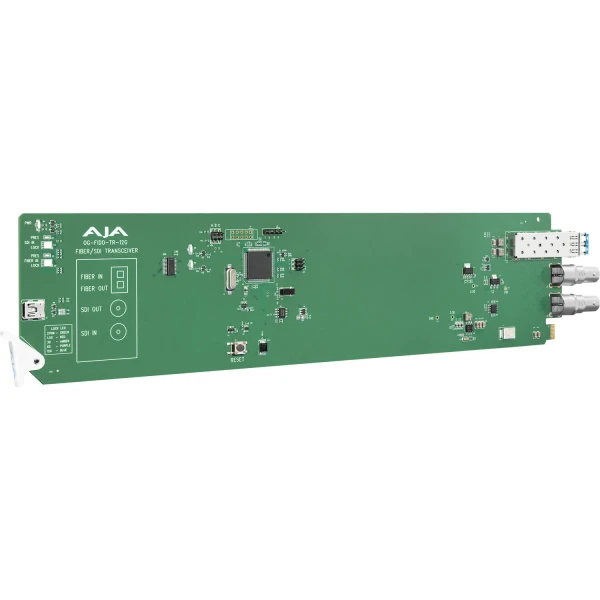

This AJA OG-FiDO-TR-12G openGear 12G-SDI/LC Single Mode LC Fiber Transceiver is a state of the art, openGear compatible 12G-SDI/Fiber transceiver. Both 12G-SDI to Fiber and Fiber to 12G-SDI conversions are supported.
openGear cards offer unmatched flexibility and cost efficiency for 12G-SDI-Fiber conversion, allowing for long cable runs up to 10 km (32,808 ft) for single mode.
AJA openGear products are designed for use in high density openGear 2RU frames including AJA’s OG-X-FR frame, with industry standard DashBoard software support on Windows, macOS and Linux, offering remote control and monitoring over a PC or local network.
READ MORE
AJA OG-FiDO-TR-12G openGear 12G-SDI/LC Single Mode LC Fiber Transceiver Features:
- Video Formats: 270 Mbps - 12 Gbps, format agnostic
- Inputs: 1x 12G-SDI BNC; 1x Single-Mode LC Fiber Connectors
- Outputs: 1x 12G-SDI BNC; 1x Single-Mode LC Fiber Connectors
- Monitor via openGear DashBoard
- Support for HDR - High Dynamic Range video
- Supports pass-through of SDI metadata, including HDR
- Input Present and Input SMPTE Lock LEDs
- Automatic detection and reclocking
- 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps - Auto Select
- Nominal Wavelength; Tx: 1310 nm (typ), Rx :1260-1620 nm
- Power: 3 watts Max
- Hot-swappable
- Remote Ethernet Monitor through Ross DashBoard software
- Appropriate Fiber SFP included
- Rear I/O card included
- Two slots required for each card
- Compatible with OG-X-FR, OG-3-FR, and DFR-8321 openGear frames
- Five year warranty
Why not buy this AJA OG-FiDO-TR-12G openGear 12G-SDI/LC Single Mode LC Fiber Transceiver from HDTV Supply today?
AJA OG-FiDO-TR-12G openGear 12G-SDI/LC Single Mode LC Fiber Transceiver Specifications:
- Video Formats
- 270 Mbps - 12 Gbps, format agnostic
- Video Input Digital
- 1-channel independent 12G-SDI BNC connector, SMPTE 259/292/424/2081/2082
- 1-channel independent 12G-SDI Single Mode LC Fiber connector, SMPTE 297/259/292/424/2081/2082
- Nominal Wavelength: Rx 1260 nm (Min), 1620 nm (Max)
- Optical Sensitivity: -10 dBm (Max) for 6 Gbps & 12 Gbps, -14 dBm (Max) for 270 Mbps, 1.5 Gbps & 3 Gbps
- Overload Power: -2 dBm (Min)
- Video Output Digital
- 1-channel independent 12G-SDI BNC connector, SMPTE-259/292/424/2081/2082
- 1-channel independent 12G-SDI Single Mode LC Fiber connector, SMPTE-297/259/292/424/2081/2082
- Nominal Wavelength: Tx 1260 nm (Min), 1310 nm (Typ), 1360 nm (Max)
- Optical Power: -5 dBm (Min), 2 dBm (Max)
- Extinction Ratio: 3.5 dB (Min)
- Reclocking
- 270 Mbps
- 1.483 Gbps
- 1.485 Gbps
- 2.967 Gbps
- 2.970 Gbps
- 5.934 Gbps
- 5.940 Gbps
- 11.868 Gbps
- 11.880 Gbps
- Auto Select
- All other rates are passed through and not reclocked
- User Interface
- openGear DashBoard network control software via Windows, macOS, or Linux
- Size (W x D x H)
- openGear standard form factor, front slot and rear card
- Two slots required for each card
- Weight
- 0.5 lb (0.3 kg)
- Power
- openGear frame compatible, 3.0 watts max per card
- Environment
- Safe Operating Temperature: 0 to 40°C (32 to 104°F)
- Safe Storage Temperature (Power OFF): -40 to 60°C (-40 to 140°F)
- Operating Relative Humidity: 10-90% noncondensing
- Operating Altitude: <3,000 meters (<10,000 feet)
