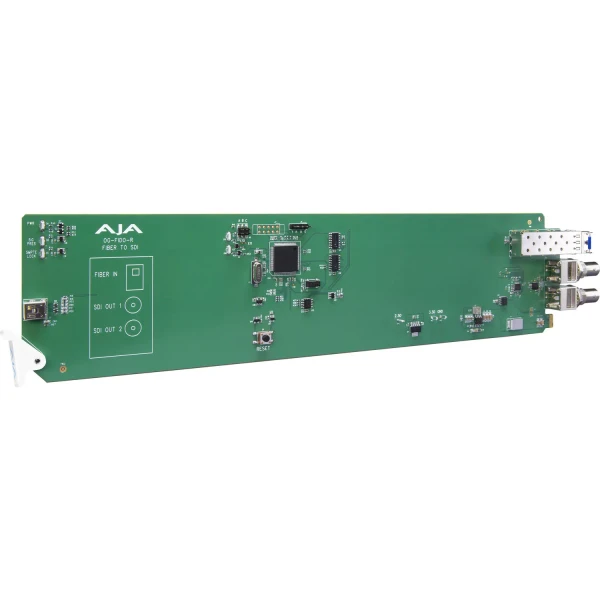

This AJA OG-FiDO-R openGear 1-Channel Single Mode LC Fiber to 3G-SDI Receiver is a state of the art, openGear compatible Fiber to 3G-SDI converter, enabling 3G-SDI signals to be extended up to 10 km (32,808 ft) over standard single mode fiber optic cable.
The fiber input is reclocked with best in class input jitter tolerance.
Designed for use in high density openGear 2RU frames including AJA’s OG-X-FR frame, DashBoard software support on Windows, macOS and Linux offers remote control and monitoring of the openGear architecture and provides convenient and industry standard configuration, monitoring and control options over a PC or local network.
READ MORE
AJA OG-FiDO-R openGear 1-Channel Single Mode LC Fiber to 3G-SDI Receiver Features:
- Video Formats: 150 Mbps - 3 Gbps, format agnostic
- Input: 1x Single Mode LC Fiber
- Outputs: 2x 3G-SDI BNC (Mirrored)
- Supports pass-through of SDI metadata, including HDR
- Monitor via openGear DashBoard
- Input Present and Input SMPTE Lock LEDs
- Automatic detection and reclocking
- 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
- Nominal Wavelength: 1260-1620 nm
- Power: 2.5 watts
- Hot swap capable
- Compatible with OG-X-FR, OG-3-FR and DFR-8321 openGear frames
Why not buy this AJA OG-FiDO-R openGear 1-Channel Single Mode LC Fiber to 3G-SDI Receiver from HDTV Supply today?
AJA OG-FiDO-R openGear 1-Channel Single Mode LC Fiber to 3G-SDI Receiver Specifications:
- Video Formats: 150 Mbps - 3 Gbps, format agnostic
- Video Input Digital
- 1-channel Single Mode LC Fiber Input, SMPTE-297
- Nominal Wavelength: 1260 - 1620 nm
- Optical Sensitivity: -18dBm (Max)
- Overload Power: -3dBm (Min)
- Video Output Digital
- 1-channel Dual matching 3G-SDI BNC Output, SMPTE-259/292/424
- Reclocking:
- 270 Mbps
- 1.483 Gbps
- 1.485 Gbps
- 2.966 Gbps
- 2.970 Gbps
- Auto Select
- All other rates are passed through and not reclocked
- User Interface: openGear DashBoard network control software via Windows, macOS, or Linux
- Size:
- openGear standard form factor, front slot and rear card
- Two slots required for each card
- Weight: 0.5 lb (0.3 kg)
- Power: openGear frame compatible, 2.5 watts max per card
- Environment
- Safe Operating Temperature: 0 to 40 C (32 to 104 F)
- Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
- Operating Relative Humidity: 10-90% noncondensing
- Operating Altitude: <3,000 meters (<10,000 feet)
