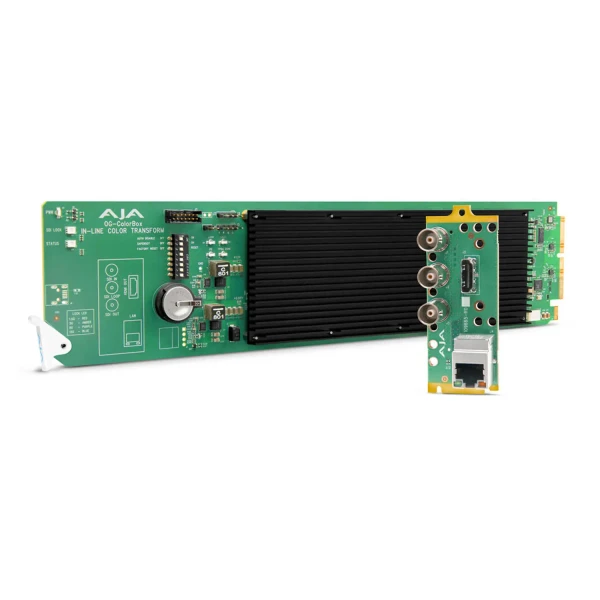

This AJA ColorBox In-line HDR/SDR Algorithmic & LUT Color Transforms is a high performance color management openGear card specifically designed to meet the color conversion and color correction needs of broadcast, live events, and on-set applications.
Supporting HDR, SDR, and Wide Color Gamut (WCG) signals, it utilizes 12G-SDI for single wire 4K/UltraHD up to 4:2:2 10-bit 60p or 4:4:4 12-bit 30p, with a unique color processing pipeline, and down-conversion.
The OG-ColorBox’s ultra-low latency, less than 1/2 of a video line, makes it ideal for color managed workflows for live productions.
Built around a 33-point 3D LUT processor with tetrahedral interpolation, the AJA Color Pipeline provides additional 4x 1D LUTs and 2x 3x3 matrices that are each individually configurable or can be converted to Proc Amps or RGB Color Correctors.
All of the color processing options can be easily managed via the web user interface, which can be accessed directly from a wired Ethernet connection.
OG-ColorBox also includes processing pipelines from NBCU LUTs and ACES.
Additionally, OG-ColorBox offers licensable upgrade options for advanced color managed workflows, including the Colorfront Engine, BBC HLG LUTs, and ORION-CONVERT.
ORION-CONVERT’s unique real time floating point math approach to color transformations produces higher precision results to get “access to the colors between the colors.”
This enables pixel perfect color transforms and round-tripping where maintaining color fidelity is paramount.
The ACES Pipeline includes support for ACES Metadata File (AMF).
Internal AMF processing is built on the OpenColorIO (OCIO) from the Academy Software Foundation and supports configurable input and output transforms.
The OG-ColorBox is an officially ACES logoed device ensuring end-to-end ACES compliance.
OG-ColorBox can overlay information onto the image, including helpful user definable text fields, user loaded images such as graphic elements and frame lines, and more.
OG-ColorBox also offers a sophisticated 4K test pattern generator and frame store, bringing useful tools to your workflow, including capturing up to a 4K image as a 16-bit .tiff file for the highest quality reference stills.
These captures can be saved locally on OG-ColorBox or onto third party connected computers, which can simultaneously be running applications like Pomfort’s Livegrade Pro/Studio, Assimilate Live Looks, and QTAKE Video Assist software.
AJA HDBNC-2RX-12G 12G/6G-SDI Dual Coax HD-BNC FS4 Receiver Module Features:
- openGear compatible card
- 12-bit 4:4:4 12G-SDI I/O for up to 4K/UltraHD HDR/WCG 30p
- 10-bit 4:2:2 12G-SDI I/O for up to 4K/UltraHD HDR/WCG 60p
- 12-bit 4:4:4 HDMI 2.0 output for up to 4K/UltraHD HDR/WCG 30p
- 10-bit 4:2:2 HDMI 2.0 output for up to 4K/UltraHD HDR/WCG 60p
- Ultra-low latency, less than ½ a video line
- Extensive AJA Color Pipeline built around the 33pt. 3D LUT processor with tetrahedral interpolation
- 7x nodes plus Overlay
- 1x 3D LUT processor, user configurable as 3D LUT or Dynamic
- 4x 1D LUT processors, user configurable as 1D LUT, Dynamic, or Color Corrector
- 2x 3x3 Matrix processors, user configurable as 3x3 Matrix, Dynamic, or ProcAmp
- Supports industry standard file types, no conversion to proprietary format required
- Configurable Color Space, Range, and Transfer Characteristic
- Full frame LUT processing
- 7x nodes plus Overlay
- Six Color Processing Pipelines
- AJA Color
- Colorfront (Licensable option)
- ORION-CONVERT (Licensable option)
- BBC HLG LUT (Licensable option)
- NBCU LUTs
- ACES
- Down-convert 4K to 2K or UltraHD to HD via SDI and/or HDMI outputs
- 4K/2K Crop for HDMI output
- Video Preview in web user interface for confidence monitoring
- Built-in Frame Store
- Up to 4K/UltraHD frame capture and recall
- Capture pre or post processed images
- Test Pattern up to 4K/UltraHD, 14 test patterns built-in
- Overlay information on output
- User Text
- User Overlay
- Input and Output signal information
- Pipeline Configuration
- Overlay can be captured with image for future reference
- Onboard library for file management
- 16x 1D LUTs
- 16x 3D LUTs
- 16x 3x3 Matrices
- 16x Images
- 16x Overlays
- 16x AMFs
- Preset Management, 10 per Pipeline plus Startup Preset
- HDR signaling metadata management
- ANC metadata pass-through
- Embedded audio pass-through, SDI 16-ch, and HDMI 8-ch
- Support for ARRI Alexa 35's Wireless Video Optimized LogC4 (WVO)
- Extensive API for third party control integrations
- Embedded web server for remote control
- IP configuration and monitoring through Ross DashBoard software
- Power: 19 watts
- Hot-swappable
- Rear I/O card included
- Two slots required for each card
- Compatible with OG-X-FR and OG-3-FR openGear frames
- Redundant power supply option available on openGear frames
- Five year warranty
Why not buy this AJA OG-ColorBox openGear In-line HDR/SDR Algorithmic & LUT Color Transforms from HDTV Supply today?
- HDR/WCG Real-Time Processor:
- HDR to HDR, HDR to SDR, and SDR to HDR Conversion
- Supports BT.709 and BT.2020 Colorimetry
- Real-Time HDR Workflow Processing for Broadcast, Production, OTT, and Postproduction Applications
- Supported Video Formats:
- 4K: 4096 x 2160p
- UltraHD: 3840 x 2160p
- 2K: 2048 x 1080p
- HD: 1920 x 1080p / 1080i
- HD: 1280 x 720p
- Color Processing Engine:
- 12-Bit RGB Processing Pipeline
- Six Integrated Color Pipelines:
- AJA Color
- Colorfront
- ORION-CONVERT
- BBC HLG LUTs
- NBCU LUTs
- ACES
- Supports 1D LUTs, 3D LUTs, Color Matrices, and Dynamic LUT Processing
- Tetrahedral 3D LUT Interpolation
- Configurable Color Space, Range, and Transfer Characteristics
- ARRI Alexa 35 Wireless Video Optimized LogC4 (WVO) Decoder Support
- AJA Color Pipeline:
- Seven Processing Nodes Plus Overlay
- Supports Custom:
- .CUBE
- .SPI3D
- .3DL
- .SPI1D
- .CLF
- .CTF
- .SPIMTX
- Stores:
- 16 x 3D LUTs
- 16 x 1D LUTs
- 16 x 3x3 Matrices
- Dynamic LUT Processing:
- Real-Time LUT Updates from Third-Party Software
- Compatible with:
- Pomfort Livegrade Pro & Studio
- Assimilate Live Looks & Live Assist
- QTAKE Video Assist
- Colorfront Pipeline:
- Human Perception-Based Processing
- Color Volume Remapping
- TV Mode, Live Mode, and Dolby Vision Preview Mode
- Supports SDR, HDR, HLG, PQ, ARRI, Sony, Panasonic, RED, and Canon Log Formats
- Advanced Highlight, Exposure, Gamma, Gain, Saturation, and Tint Controls
- ORION-CONVERT Pipeline:
- Floating Point Color Conversion Engine
- Display-Light and Scene-Light Modes
- Configurable HDR Peak Nits and SDR/HDR Reference Points
- HDR, SDR, and HLG Conversion Workflows
- BBC HLG LUTs Pipeline:
- ITU-R BT.2408 Dynamic Range Mapping
- Extensive SDR, HDR, HLG, PQ, and S-Log3 Conversion Presets
- Integrated RGB Color Correction and ProcAmp Controls
- NBCU LUTs Pipeline:
- NBCUniversal HDR Conversion LUTs
- SDR to HLG, SDR to PQ, HLG to SDR, and PQ to SDR Conversions
- RGB Color Correction and ProcAmp Controls
- ACES Pipeline:
- ACES v1.3 Implementation
- OpenColorIO (OCIO) Based Processing
- ACES Metadata File (AMF) Support
- Stores up to 16 AMF Files
- SDI Video I/O:
- Input: 1 x 12G-SDI BNC
- Outputs: 2 x 12G-SDI BNC
- Supports 12G, 6G, 3G, and 1.5G-SDI Standards
- YCbCr 4:2:2 / 4:4:4 and RGB 4:4:4
- 10-Bit and 12-Bit Video Processing
- Supports 4K, UltraHD, 2K, and HD Frame Rates up to 60 fps
- HDMI Output:
- 1 x HDMI 2.0b Type-A Output
- HDR InfoFrame Generation
- YCbCr 4:2:2 and RGB 4:4:4 Support
- 8, 10, and 12-Bit Color Depth
- 4K, UltraHD, 2K, and HD Output Formats
- 4K/2K Crop to UltraHD or HD
- Video Processing Features:
- Ultra-Low Processing Delay
- Motion Adaptive Deinterlacing
- Proc Amp Controls
- Color Correction
- Video Legalizer
- Hardware 10-Bit Down Conversion
- Independent SDI and HDMI Down Conversion
- 4K to HD and UltraHD to HD Conversion
- Frame Store:
- Capture and Recall Images up to 4K/UltraHD Resolution
- Supports TIFF, PNG, and JPEG Formats
- Stores Up to 16 Images
- Test Pattern Generator:
- 14 Built-In SDR and HDR Test Patterns
- 10-Bit and 12-Bit Processing
- Overlay & Ancillary Data:
- User Text Overlay
- PNG Overlay Images up to 4096 x 2160
- Stores Up to 16 Overlay Files
- Passes Through Embedded ANC Data
- Displays VPID, Timecode, and Closed Caption Information
- Audio Support:
- Audio Input: SDI Embedded Audio, 24-Bit, 16-Channel
- Audio Output:
- SDI Embedded Audio, 24-Bit, 16-Channel
- HDMI Embedded Audio, 24-Bit, 8-Channel
- Network & Control:
- 1 x RJ45 Gigabit Ethernet Port
- Embedded Web Server
- REST API Support
- Web User Interface
- openGear DashBoard Support for Windows, macOS, and Linux
- DIP Switch Configuration
- Presets:
- 10 Presets Per Processing Mode
- Startup Preset Support
- Physical:
- openGear Standard Card Form Factor
- Requires Two openGear Slots
- Weight: 0.7 lb (0.3 kg)
- Power:
- Compatible with openGear Frames
- Maximum Power Consumption: 19W Per Card
- Environmental:
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Storage Temperature: -40°F to 140°F (-40°C to 60°C)
- Operating Humidity: 10% to 90% Non-Condensing
- Operating Altitude: Up to 10,000 ft (3,000 m)
