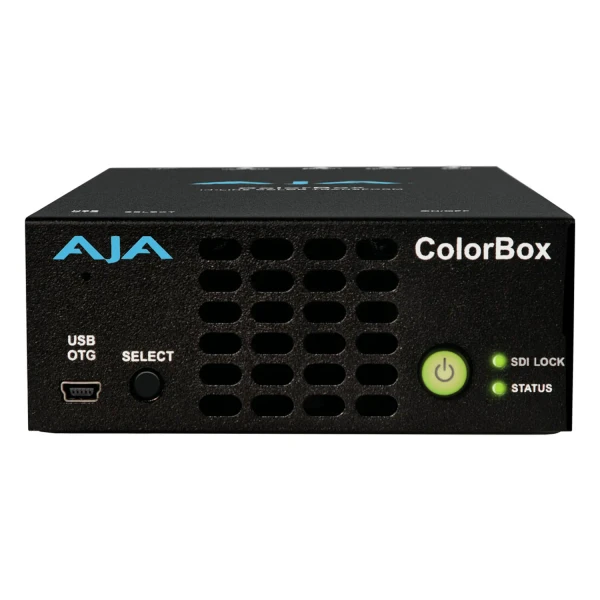

This AJA ColorBox In-line HDR/SDR Algorithmic & LUT Color Transforms is a high performance color management device specifically designed to meet the color conversion and color correction needs of broadcast, live events, and on-set applications.
Supporting HDR, SDR, and Wide Color Gamut (WCG) signals, it utilizes 12G-SDI for single wire 4K/UltraHD up to 4:2:2 10-bit 60p or 4:4:4 12-bit 30p, with a unique color processing pipeline, and down-conversion.
The ColorBox’s ultra-low latency, less than ½ of a video line, makes it ideal for color managed workflows for live productions.
Built around a 33-point 3D LUT processor with tetrahedral interpolation, the AJA Color Pipeline provides additional 4x 1D LUTs and 2x 3x3 matrices that are each individually configurable or can be converted to Proc Amps or RGB Color Correctors.
All of the color processing options can be easily managed via the web user interface, which can be accessed directly from a wired Ethernet connection.
ColorBox also includes processing pipelines from Colorfront, NBCU LUTs, and ACES.
Additionally, ColorBox offers licensable upgrade options for advanced color managed workflows, including the Colorfront Engine, BBC HLG LUTs, and ORION-CONVERT.
ORION-CONVERT’s unique real time floating point math approach to color transformations produces higher precision results to get “access to the colors between the colors.”
This enables pixel perfect color transforms and round-tripping where maintaining color fidelity is paramount.
The ACES Pipeline includes support for ACES Metadata File (AMF).
Internal AMF processing is built on the OpenColorIO (OCIO) from the Academy Software Foundation and supports configurable input and output transforms.
ColorBox is an officially ACES logoed device ensuring end-to-end ACES compliance.
ColorBox can overlay information onto the image, including helpful user definable text fields, user loaded images such as graphic elements and frame lines, and more.
ColorBox also offers a sophisticated 4K test pattern generator and frame store, bringing valuable tools to your workflow, including capturing up to a 4K image as a 16-bit .tiff file for the highest quality reference stills.
These captures can be saved locally on ColorBox or onto third party connected computers, which can simultaneously be running applications like Pomfort’s Livegrade Pro/Studio, Assimilate Live Looks, and QTAKE Video Assist software.
AJA HDBNC-2RX-12G 12G/6G-SDI Dual Coax HD-BNC FS4 Receiver Module Features:
- 12-bit 4:4:4 12G-SDI I/O for up to 4K/UltraHD HDR/WCG 30p
- 10-bit 4:2:2 12G-SDI I/O for up to 4K/UltraHD HDR/WCG 60p
- 12-bit 4:4:4 HDMI 2.0 output for up to 4K/UltraHD HDR/WCG 30p
- 10-bit 4:2:2 HDMI 2.0 output for up to 4K/UltraHD HDR/WCG 60p
- Ultra-low latency, less than ½ a video line
- Extensive AJA Color Pipeline built around the 33-point 3D LUT processor with tetrahedral interpolation
- 7x nodes plus Overlay
- 1x 3D LUT processor, user configurable as 3D LUT or Dynamic
- 4x 1D LUT processors, user configurable as 1D LUT, Dynamic, or Color Corrector
- 2x 3x3 Matrix processors, user configurable as 3x3 Matrix, Dynamic, or ProcAmp
- Supports industry standard file types, no conversion to proprietary format required
- Configurable Color Space, Range, and Transfer Characteristic
- Full frame LUT processing
- 7x nodes plus Overlay
- Six Color Processing Pipelines
- AJA Color
- Colorfront (Free and Licensable option)
- ORION-CONVERT (Licensable option)
- BBC HLG LUT (Licensable option)
- NBCU LUTs
- ACES
- Down-convert 4K to 2K or UltraHD to HD via SDI and/or HDMI outputs
- 4K/2K Crop for HDMI output
- Video Preview in web user interface for confidence monitoring
- Built-in Frame Store
- Up to 4K/UltraHD frame capture and recall
- Capture pre or post-processed images
- Test Pattern up to 4K/UltraHD, 14 test patterns built-in
- Overlay information on output
- User Text
- User Overlay
- Input and Output signal information
- Pipeline Configuration
- Overlay can be captured with image for future reference
- Onboard library for file management
- 16x 1D LUTs
- 16x 3D LUTs
- 16x 3x3 Matrices
- 16x Images
- 16x Overlays
- 16x AMFs
- Preset Management, 10 per Pipeline plus Startup Preset
- HDR signaling metadata management
- ANC metadata pass-through
- Embedded audio pass-through, SDI 16-Ch and HDMI 8-Ch
- Support for ARRI Alexa 35's Wireless Video Optimized LogC4 (WVO)
- Compact; 4 units can fit in just 1RU
- Ultra quiet fan operation suitable for on-set environments
- Lightweight, 1.0 lb (0.5 kg)
- Robust locking 4-pin mini-XLR power connector, DC power
- On/Off button so you can save power when not in use
- Select button used to bypass video processing
- Extensive API for third party control integrations
- Embedded web server for remote control
- Configure IP Address via USB port and supplied AJA eMini-Setup software for Windows and macOS
Why not buy this AJA HDBNC-2TX-12G 12G/6G-SDI Dual Coax HD-BNC FS4 Transmitter Module from HDTV Supply today?
- HDR/WCG Real-Time Processor:
- HDR Conversions:
- HDR to HDR
- HDR to SDR
- SDR to HDR
- Colorimetry:
- BT.709
- BT.2020
- HDR Conversions:
- Video Formats:
- 4K: 4096 x 2160p
- UltraHD: 3840 x 2160p
- 2K: 2048 x 1080p
- HD: 1920 x 1080p
- HD: 1920 x 1080i
- HD: 1280 x 720p
- Color Processing Pipeline:
- Processes in 12-Bit RGB
- 6 Processing Pipelines:
- AJA Color
- Colorfront
- ORION-CONVERT
- BBC HLG LUTs
- NBCU LUTs
- ACES
- 7 Processing Nodes Plus Overlay in AJA Color
- Tetrahedral 3D LUT Interpolation
- ARRI Alexa 35 Wireless Video Optimized LogC4 (WVO) Decoder
- Supports Custom 1D LUTs, 3D LUTs, Matrices, CLF, CTF, AMF Files
- Dynamic LUT Processing:
- Real-Time LUT Updates from Third-Party Applications
- Full Frame LUT Processing
- Compatible with:
- Pomfort Livegrade Pro & Studio
- Assimilate Live Looks & Live Assist
- QTAKE Video Assist
- Video Input & Output (SDI):
- Inputs:
- 1 x 12G-SDI Input (BNC)
- Outputs:
- 2 x 12G-SDI Outputs (BNC)
- Formats Supported:
- 12G-SDI
- 6G-SDI
- 3G-SDI (Level A/B)
- 1.5G-SDI
- Color Support:
- YCbCr 4:2:2 / 4:4:4
- RGB 4:4:4
- 10-Bit and 12-Bit
- Inputs:
- Video Output (HDMI):
- 1 x HDMI Type-A (HDMI 2.0b)
- HDR InfoFrame Generation
- YCbCr 4:2:2
- RGB 4:4:4
- 8, 10, or 12-Bit Color Depth
- Supports 4K, UltraHD, 2K, and HD Output
- 4K/2K Crop to UltraHD or HD
- Video Processing:
- Video Delay Less Than 0.5 Video Line
- Motion Adaptive Deinterlacer
- Proc Amp Controls
- Color Corrector
- Legalizer
- Hardware 10-Bit Down-Conversion
- Independent SDI and HDMI Down-Conversion
- 4K to 2K or UltraHD to HD Conversion
- Frame Store:
- Capture and Recall up to 4K/UltraHD 16-Bit TIFF
- Supports TIFF, PNG, and JPEG Formats
- Stores 16 Images in Nonvolatile Memory
- Test Pattern Generator:
- 10-Bit and 12-Bit Processing
- 14 Built-In Test Patterns
- Supports SDR and HDR Test Patterns
- Ancillary Data:
- Pass-Through of Embedded ANC Packets
- Supports Camera Ancillary Data
- Timecode and Closed Caption Detection
- Overlay Features:
- User Text Overlay
- PNG Overlay Image Recall up to 4096 x 2160
- Stores 16 Overlay Images
- Audio:
- Digital Audio Input: SDI Embedded Audio, 24-Bit, 16-Channel
- Digital Audio Output:
- SDI Embedded Audio, 24-Bit, 16-Channel
- HDMI Embedded Audio, 24-Bit, 8-Channel
- Network Interface:
- 1 x RJ45 Gigabit Ethernet (10/100/1000)
- Embedded Web Server
- REST API Interface
- WiFi Control via Supported USB WiFi Adapters
- USB Interface:
- 1 x Mini-USB for IP Configuration via AJA eMini-Setup
- Presets:
- 10 Pipeline Presets Per Mode
- Startup Preset Support
- Physical:
- Dimensions (W x D x H): 4.10 x 7.54 x 1.66" (104.1 x 191.6 x 42.1 mm)
- Weight: 1 lb (0.5 kg)
- Power:
- 10 to 18 VDC Regulated Input
- 4-Pin Mini-XLR Connector
- 16W Typical (3G-SDI)
- 21W Typical (12G-SDI)
- 25W Maximum
- Included 60W Universal AC Adapter (100-240VAC, 50/60Hz)
- Environmental:
- Operating Temperature: 32°F to 122°F (0°C to 50°C)
- Storage Temperature: -40°F to 140°F (-40°C to 60°C)
- Operating Relative Humidity: 10% to 90%, Non-Condensing
- Operating Altitude: Less Than 10,000 ft (3,000 m)
