This AJA ColorBox In-line HDR/SDR Algorithmic & LUT Color Transforms is an openGear broadcast quality utility frame sync that packs the production-proven reliability of AJA’s leading FS frame sync technology into an openGear card, supporting frame synchronization of untimed 3G-SDI, HD, and SD video signals at an affordable price.
This combination frame synchronizer and converter offers incredible versatility and connectivity in a sleek 1RU frame for all your 4K/UltraHD and 2K/HD/SD conversion needs.
OG-FS-Mini offers a wide range of connectivity for both video and audio, including optional SFPs for single link 12G-SDI connectivity.
For HDR workflows, the OG-FS-Mini supports automatic or configurable HDR metadata generation for the SDI output VPID and HDMI output HDR Infoframe.
In Four Channel Mode, OG-FS-Mini can do the work of four separate devices in 2K/HD/SD or combine all processors and channels for maximum flexibility for 4K/UltraHD productivity in Single Channel Mode.
READ MORE
AJA HDBNC-2RX-12G 12G/6G-SDI Dual Coax HD-BNC OG-FS-Mini Receiver Module Features:
- openGear compatible card
- Utility frame sync function times input signals to an external reference
- Supports bi-level and tri-level references
- High quality 10-bit video processing
- Low latency processing, nominal video delay of 1 frame
- Loss of Input management: Freeze, Black, or Mute
- Synchronizes 3G, HD and SD video formats
- Simultaneous SDI and HDMI outputs
- 16-channel embedded SDI audio I/O
- 8-channel HDMI output audio
- 2x 3-pin terminal block connectors for analog audio output
- Utility frame rate conversion, supports 3:2 pulldown
- Up, down, cross conversion between 3G, HD and SD video formats
- AFD input detection, down-convert control
- Remote configuration through Ross DashBoard software
- Rear I/O card included
- Compatible with OG-X-FR, OG-3FR and DFR-8321 openGear frames
- Five year warranty

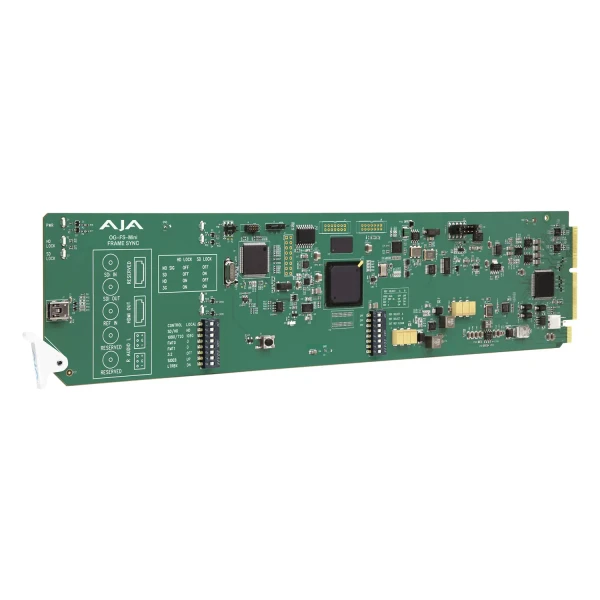

Why not buy this AJA OG-FS-Mini 3G-SDI Frame Synchronizer from HDTV Supply today?
- Video Formats
- (HD) 1920x1080p
- (HD) 1920x1080PsF
- (HD) 1920x1080i
- (HD) 1280x720p
- (SD) 625i
- (SD) 525i
- YCbCr, 4:2:2, 10-bit
- Video Input Digital
- 1x 3G-SDI, 1x BNC
- 3G/HD/SD, SMPTE-259/292/372/424
- Single Link 3G-SDI Level A, SMPTE-425-1
- (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30
- (HD) 1920x1080i 50, 59.94, 60
- (HD) 1280x720p 50, 59.94, 60
- (SD) 625i 50
- (SD) 525i 59.94
- Video Output Digital
- 1x 3G-SDI output, 1x BNC
- 3G/HD/SD, SMPTE-259/292/424
- Single Link 3G-SDI Level A, SMPTE-425-1
- (HD) 1080p 23.98 (for 23.98 video inputs)
- (HD) 1080p 24 (for 24 video inputs)
- (HD) 1080p 25 (for 50 video inputs)
- (HD) 1080p 29.97 (for 59.94 video inputs)
- (HD) 1080p 30 (for 60 video inputs)
- (HD) 1080p 50 (for 50 video inputs)
- (HD) 1080p 59.94 (for 23.98, 59.94 video inputs)
- (HD) 1080p 60 (for 24, 30 or 60 video inputs)
- (HD) 1080PsF 23.98 (for 23.98 video inputs)
- (HD) 1080PsF 24 (for 24 video inputs)
- (HD) 1080PsF 25 (for 50 video inputs)
- (HD) 1080PsF 29.97 (for 59.94 video inputs)
- (HD) 1080PsF 30 (for 30 or 60 video inputs)
- (HD) 1080i 59.94 (for 23.98 or 59.94 video inputs)
- (HD) 1080i 60 (for 24, 30, or 60 video inputs)
- (HD) 1080i 50 (for 25 or 50 video inputs)
- (HD) 720p 50 (for 50 video inputs)
- (HD) 720p 59.94 (for 23.98, 59.94 video inputs)
- (HD) 720p 60 (for 24, 30, or 60 video inputs)
- (SD) 625i 50 (for 25 or 50 fps video inputs)
- (SD) 525i 59.94 (for 23.98 or 59.94 video inputs)
- Monitor Output Digital
- 1x HDMI standard Type A connector
- HD/SD
- Color Space: YCbCr or RGB
- Bit Depth: 8 or 10-bit
- RGB Range: SMPTE or Full Range
- Video Processing
- Frame rate conversion/film cadence removal/insertion (3:2)
- Loss of input management: Freeze, Black, or Mute
- AFD input detection, down-convert control
- Nominal video delay HD/SD, 1 frame
- Up-Conversion
- Hardware 10-bit
- 4x3 Pillar: results in a 4x3 image at center screen with black sidebars
- 14x9 Pillar: results in a 4x3 image zoomed slightly to fill a 14x9 image with black side bars
- Full Screen: results in a 4x3 image stretched horizontally to fill a 16x9 screen
- Letterbox to Full: results in image zoomed to fill fullscreen
- Wide Zoom: results in a combination of zoom and horizontal stretch to fill a 16x9 screen; this setting will introduce a small aspect ratio change
- Down-Conversion
- Hardware 10-bit
- Crop: image is cropped to fit new screen size
- Anamorphic: HD image is converted to full-screen SD with a 16x9 aspect ratio
- 14x9: image is reduced slightly with aspect ratio preserved, black is added top and bottom, and the left and right sides are cropped
- Auto AFD: automatically selects the best down-convert mode based on the input video's Active Format Description (AFD) code
- Letterbox: image is reduced with black top and bottom added to image area with the aspect ratio preserved
- Cross-Conversion
- Hardware 10-bit
- 1080i to 720p
- 720p to 1080i
- 720p to 1080PsF
- Aspect Ratio Conversion for SD to SD
- Letterbox: transforms SD anamorphic material to a letterboxed image
- H Crop: produces a horizontally stretched effect on the image; transforms anamorphic SD to full frame
- SD Pillarbox: produces an image in the center of the screen with black borders on the left and right sides and an anamorphized image in the center
- V Crop: transforms SD letterbox material to an anamorphic image
- 14x9: anamorphic to 14x9 conversion
- Audio Input Digital
- 48 kHz sample rate
- 1x SDI embedded input
- 16-channels, 24-bit (20-bit SD), SMPTE-272/299
- Audio Output Digital
- 48 kHz sample rate
- 1x SDI embedded output
- 16-channels, 24-bit (20-bit SD), SMPTE-272/299
- Audio I/O
- 16-channel embedded SDI audio input
- 16-channel embedded SDI audio output
- 8-channel HDMI audio output
- Balanced analog audio outputs, 2x 3-Pin terminal block connectors
- Ancillary Data
- Supports pass-through of PCM embedded audio
- Supports pass-through of non-PCM audio when source is in time with the selected reference (SDI In or Ext Ref). Non-PCM audio is not supported during frame sync operation.
- All other ANC data is not passed
- Reference Input
- Supported reference video inputs include:
- 1080i tri-level sync
- 1080p tri-level sync
- 720p tri-level sync
- 625i Color Black
- 525i Color Black
- 75-ohm terminating
- Genlock
- Lock to External Reference
- Lock to SDI input
- Free run
- HDCP
- The OG-FS-Mini does not encode the HDMI output with HDCP encryption.
- By definition, HD-SDI inputs to the OG-FS-Mini are unencrypted.
- The HDMI specification requires HDMI monitors to support unencrypted inputs.
- User Interface
- External DIP switch
- openGear DashBoard network control software via Windows, macOS, or Linux
- Size
- openGear standard form factor, front slot and rear card
- Two slots required for each card
- Weight
- 0.5 lb (0.3 kg)
- Power
- openGear frame compatible
- 7.0 watts max per card
- Environment
- Safe Operating Temperature: 0 to 40 C (32 to 104 F)
- Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
- Operating Relative Humidity: 10-90% noncondensing
- Operating Altitude: <3,000 meters (<10,000 feet)
