This AJA ColorBox In-line HDR/SDR Algorithmic & LUT Color Transforms is a comprehensive array of tools for the effective analysis of up to 4x 4K/UltraHD signals, utilizing both 12G-SDI and NDI connectivity.
Analyze HLG, PQ, Rec.2020, Rec.709, and native camera Log color spaces – from 8K/UltraHD2/4K/UltraHD/2K/HD content in a powerful, real time, 1RU device.
Developed in partnership with Colorfront, the AJA HDR Image Analyzer 12G supports a wealth of inputs from camera Log formats to SDR (Rec. 709), PQ (ST 2084), and HLG and offers Wide Color Gamut (WCG) support for BT.2020 alongside traditional BT.709 and P3, with Dolby Vision dynamic metadata inspection and analysis for advanced HDR mastering and QC applications.
AJA hardware prowess ensures high reliability and performance, with 4x 12G-SDI inputs, dual 10 GigE, and DisplayPort connections.
Specifically designed to be used wherever high performance color analysis is needed, the 1RU form factor excels in a range of environments, providing the confidence you need for consistent and predictable HDR production and mastering.
AJA HDBNC-2RX-12G 12G/6G-SDI Dual Coax HD-BNC FS4 Receiver Module Features:
- HDR Waveform, Histogram, and Vectorscope Monitoring
- Multi-channel signal analysis of up to 4x 4K/UltraHD HDR/WCG simultaneously via 4x 12G-SDI inputs
- Single channel signal analysis of 8K/UltraHD2 HDR/WCG
- Mix and match SDI and NDI signal monitoring and analysis
- UltraHD UI for high resolution picture display including PQ support for HDR capable displays via integrated DisplayPort
- Configurable layouts allow you to put the tool you need in the window you need it
- Support for display referred SDR (Rec.709), HDR ST 2084/PQ, and HLG analysis
- Support for scene referred ARRI, Canon, Panasonic, RED and Sony camera color spaces
- Dolby Vision dynamic metadata inspection and presentation
- Precision CIE graph, vectorscope, waveform, and histogram support
- False color mode to easily spot out of gamut/out of brightness pixels
- NIT levels and audio phase metering
- Line mode to focus a region of interest onto a single horizontal or vertical line
- File base error logging with timecode
- Scope LUT applies a 3D LUT to signal being analysed
- Display LUT applies a 3D LUT to only the monitoring display

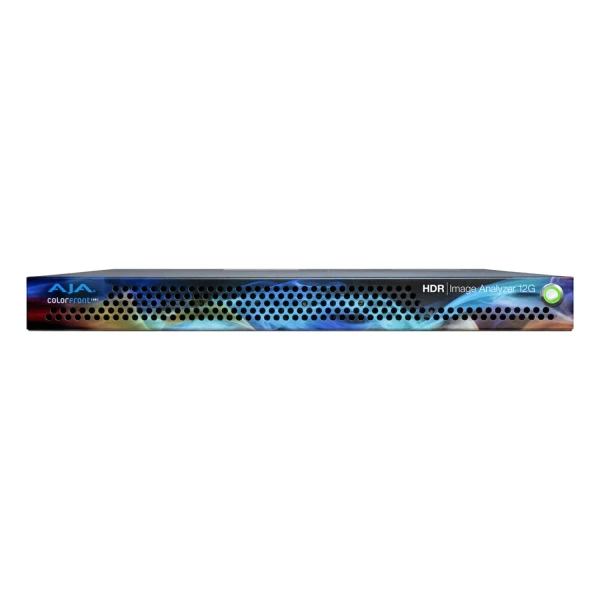

Why not buy this AJA HDR Image Analyzer 12G Multi-Channel HDR Waveform, Histogram & Vectorscope Monitoring from HDTV Supply today?
- Overview:
- Log, SDR, and HDR Image Analysis Tool
- Multi-Channel HDR Waveform Monitoring
- Histogram and Vectorscope Analysis
- Designed for High-Resolution SDI and NDI Signal Monitoring
- Supported Video Formats:
- 8K: 8192 x 4320p up to 60fps
- UltraHD2: 7680 x 4320p up to 60fps
- 4K DCI: 4096 x 2160p up to 60fps
- UltraHD: 3840 x 2160p up to 60fps
- 2K: 2048 x 1080p up to 60fps
- 2K PsF Formats
- HD 1080p and 1080PsF
- HD 720p
- Supported Video Codec:
- NDI SpeedHQ (High Bandwidth)
- Audio Codec Support:
- NDI Uncompressed Float Audio
- SDI PCM Audio
- SDI Video Inputs:
- 4 x 12G-SDI BNC Inputs
- Supports SMPTE:
- 259
- 292
- 296
- 424
- 425
- 2036
- 2081
- 2082
- 8-Bit, 10-Bit, and 12-Bit Processing
- NDI Video Inputs:
- 2 x 10 Gigabit Ethernet RJ45 Ports
- Supports Up to 4 Simultaneous NDI Streams
- Bandwidth Per Channel: Approximately 105 to 250 Mbps
- UYVY 4:2:2 (8-Bit and 10-Bit)
- UYVA 4:2:2 (8-Bit and 10-Bit)
- Video Input Configuration:
- SDI Inputs Operate as Input-Only Connections
- 8K/UltraHD2 Requires All Four 12G-SDI Inputs
- 4K/UltraHD Supports Single-Link 12G-SDI or Quad-Link 3G-SDI
- 2K and HD Support Multi-Channel Monitoring
- NDI Inputs Support 4K, UltraHD, 2K, and HD Sources
- Interlaced NDI Formats Not Supported
- Audio Input Support:
- 16-Channel Embedded SDI Audio per Input
- 24-Bit Audio Resolution
- 48 kHz Sample Rate
- 16-Channel NDI Audio per Connection
- Uncompressed Floating Point Audio
- Display Outputs:
- 4 x DisplayPort Outputs
- Supports Resolutions up to UltraHD 60p
- HDR10 / PQ Monitoring Support
- Network & Remote Control:
- 2 x RJ45 10 Gigabit Ethernet Ports
- Embedded Web Server
- Remote Desktop Protocol (RDP) Support
- Physical Specifications:
- Rack Size: 1RU
- Dimensions (W x D x H): 17.2 x 16.9 x 1.7" (436.88 x 429.26 x 43.18 mm)
- Weight (Server Only): 18 lb (8.2 kg)
- Weight (Boxed): 28 lb (12.7 kg)
- Power Requirements:
- 100 to 240 VAC, 50/60 Hz
- Dual Redundant Power Supplies
- Typical Power Consumption: 190W
- Maximum Power Consumption: 245W
- Environmental:
- Operating Temperature: 41°F to 95°F (5°C to 35°C)
- Storage Temperature: -40°F to 140°F (-40°C to 60°C)
- Operating Humidity: 8% to 90% Non-Condensing
- Non-Operating Humidity: 5% to 95% Non-Condensing
