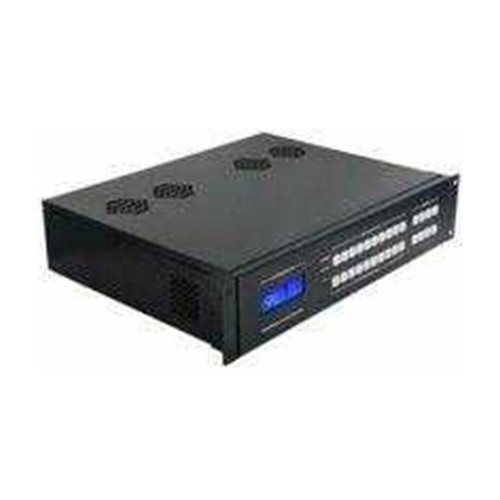

HDTV Supplys WolfPack™ 4x9 HDMI Matrix Switcher with Video Wall is an integrated HDMI video and HDMI audio modular HDMI chassis. The 16-slot chassis back plane allows various technologies, like HDMI, to be converted and switched eliminating external converters. The 4x9 HDMI Matrix Switcher with Video Wall allows any input to be routed to any output, or the same input to be routed to all outputs, or any combination using HDMI input and HDMI output cards or other cards of different or mixed technologies. There are 5-additional HDMI slots for field expansion.
NOTE: This product has been discontinued. See the above SIMILAR Tab for equivalent products or, if not there, call us at 833-WOLFPACK (833-965-3722) right now to discuss your needs.
The core of the 4x9 HDMI Matrix Switcher with Video Wall consists of its highly configurable backplane that supports 16-slot seamless HDMI input or any seamless HDMI output cards in any Mix-N-Match quantity up to 16 total cards. It is 1080p/60 compliant. You can control the HDMI Matrix Switcher via a few simple button taps from the front panel buttons, a remote control, a WEB GUI Browser control or the RS-232 serial port. It can also be configured with multiple HDMI signals to be displayed on 2 or more TVs as a Video Wall.
What sets our 4x9 HDMI Matrix Switcher with Video Wall apart from others:
Modular card cage chassis has 16-HDMI card slots
Use 16 HDMI input or output cards in any quantity up to 16-cards - Mix-N-Match
Seamless 100ms (0.1 sec) Switching
3.5mm Audio in and output on each card
Chassis supports any 1080p input & output card in any slot
Comes with a Remote control
Splicing edge adjustment
Any combinations for the inputs and outputs
Color, brightness adjustment from the control software.
32-Programmable Preset Scenes To Choose From
Control via a remote control, Web Browser, RS232 & Front Buttons
Incorporates a Video Wall function
2 - Year WolfPackCare™ Advance Replace Warranty
Free Lifetime Telephone, CHAT, TEXT and Email Tech Support
Our 4x9 HDMI Matrix Switcher with Video Wall can support high-resolution HDMI sources routed to HDMI displays, monitors, projectors, etc. The EDID can be selected between 7-different modes or copied from the displays.
4x9 HDMI Matrix Switcher with Video Wall Configuration:
WolfPack 4x9 HDMI Matrix Switcher with Video Wall Features:
Seamless switching of 1080p HDMI input and HDMI output cards
Supports HDMI Video Wall installations
Adjustable HDMI output resolution on each card
3.5mm Audio in and output on each card
On Screen Display showing the HDMI input sources
Auto adapts to HDMI video resolutions as well as manually selection on the video cards
HDMI input resolutions: 480i@60Hz/576i@50Hz, 720@50Hz/720p@60Hz, 1080i@50Hz/1080i@60Hz and 1080p@24@25@30@50@60Hz
HDMI output resolutions: 480i@60Hz/576i@50Hz, 720@50Hz/720p@60Hz, 1080i@50Hz/1080i@60Hz and 1080p@24@25@30@50@60Hz
HDMI: Output range 800mVp-p
Flexible card type design supporting up to 16-seamless HDMI input or seamless HDMI output cards
Mix-N-Match many different types of cards in any slot
Advanced EDID management for rapid integration of sources and displays
Front-panel LCD display for status feedback
Front-panel push buttons for local switching
IP controlled via built-in web server and LAN
RS-232 Serial interface for remote control via an automated control system (not supplied)
Supports resolution exchanges with several resolutions
HDMI 1.3 and HDCP 1.3 compliant
Uses a dual control system
Control with a few button taps from the front panel buttons, a WEB GUI Browser control or the RS-232 serial port
The matrix has IR and a remote control
Seamless 100ms Switching
Adjustable outputs resolution
Corresponding 3.5mm Audio in and output.
Multiple control methods: TCP/IP, RS232 and IR control.
Modular designing, hot-plug
OSD mark on the input sources
TV Wall Function
Supports flexible inputs and outputs configurations
By having 1-port slide in cards the matrix is very reliable as in the unlikely even there is a loss of signal you just replace the card with a spare you have purchased or order another from us. The complete matrix does not have to be sent to us for a repair.
Why not buy this 4x9 HDMI Matrix Switcher with Video Wall today?
SwiftSwitch™ SEAMLESS SWITCHING: Our WolfPack Modular HDMI Matrix Router can be configured with instantaneous video switching which delivers full 1080p video powered by our WolfPack engine implemented at each output port. This high-performance engine processes HDMI signals by executing EDID hops and HDCP handshakes simultaneously at both the source input and the display outputs and scaling inputs for the best output resolution while setting the output clock timing and using a frame buffer to retain the input signal information for the fastest output.
The WolfPack Modular HDMI Matrix Router allows switching between inputs with a clean video cut (frame-to-frame switching with no glitches). The WolfPack Modular HDMI Matrix Routers advanced processor allows it to process live signals simultaneously which means it can seamlessly and instantly switch (~100ms) between HDMI inputs and outputs. Most non-seamless matrix switchers require a delay of several seconds before they can switch between devices but with this WolfPack family that wait time is completely eliminated.
Supports EDID Management: Ensure that even the most difficult display can receive audio and video with eight programmable memory presets loadable to any source connected to the matrix.
When one is designing an HDMI Matrix Switch the most important initial specification is the number of inputs and outputs you will need in your facility. The next, and often forgotten, is how the user wants to control those inputs and outputs. HDTV Supply has your back when you're buying one of our WolfPack Family of Modular Matrix Switchers as we have dozens of way to control the inputs and outputs and are shown at Controlling WolfPack Modular Matrix Systems, as well as below:
HDTV Supply has successfully installed our WolfPack, WolfPackLite and our other HDMI Matrix Switchers in Sports Bars, Restaurants, Bowling Alleys, Fitness Centers, Malls, Places of Worship, Data Centers, Gaming Rooms, Nail Salons, County Clubs, Casinos, Factories, Conference Rooms, Schools, Home Theaters or many other installations requiring HDMI matrix switching. The reason, we are told by the users, is the number of features we offer compared to other companies they looked at.
These modular HDMI matrix switchers can usually be integrated with many third party control systems using the RS232 port on the back of the matrix.
For experienced AV hardware and software professionals who want to write their own drivers for 3rd party control systems from:
...and we have created a simple and very easy to use RS232 script to write your own drivers.
EXAMPLE: If you want to switch input 8 to output 1, 8, 16, the RS232 command would be x1&8&16. and notice the command has a period (.) at the end of the string. The matrix even replies "OK" when the right command is received and "Failed" when receiving a wrong command. Here is the RS232 User Manual if you want to write your own drivers.
How to use the info:
END USER: If you are an end user and want to have a whole-house control system from any of the above 3rd party control houses but your budget can't support the price you were quoted, do the following:
Call us for a quote
Once you get our quote call a 3rd party control reseller or installer in your area and tell them "Here is the hardware I want to use, please give me a quote on writing the software and installing all of the hardware at my location." You usually can save $1,000s on larger systems.
CAVEAT: We are not certified by any of the above 3rd party control systems companies nor have the necessary hardware to verify, troubleshoot and support the 3rd party writing of the code. We do warranty, though, that the RS232 script in the above RS232 Users Manual has and will work to control the matrix directly.
Q: What are the HDCP options?
A: You can choose either to open or close the HDCP on the output card. A receiver that cannot support HDCP can also display the sources with HDCP.
Non-HDCP source to a HDCP compliant TV
HDCP source to a non-HDCP compliant TV
Q: What is you test procedure?
A: Our testing procedure is:
Assembling: Production line self-testing (Basic Functions)
Initial Testing: Includes every card, control software and front panel front buttons
24 Hours Aging: Gao Sheng Standard Aging Room
Final testing: All Functions
QC final Inspection: Sticker, serial number, etc
Packing: Pack and ship
Q: What are the dimensions of the chassis?
A: They are:
Any17: 2U - 17.32 x 15.74 x 3.86 inch (440 x 400 x 98mm) with a chassis weight of 27.6 lbs (12.5kg)
Q: Do you have any tips in the unlikely event the unit fails?
A: Turn it OFF and then disconnect the matrix from the AC power and all cables. Pull out each board from the rear and push back in. Plug all cables back in and turn it on.
Click Here for Product Warranty
Ask a Question
Questions & Answers
Ask a question about the 4x9 HDMI Matrix Switcher with Video Wall Processor or Call 833-WOLFPACK (833-965-3722)
1. Connect the control PC to the the matrix switcher either by LAN(IP) or the RS232. When using an IP control, click Connect. Sometimes the control software doesn't pop-up the connection info even if it's showing "Disconnect". It could be not really be connected so you will need to do the switching to test> If you hear a beep sound then it's connected. Otherwise it's not really connected.
2. Please make sure the outputs on the matrix switcher are connected to the TVs in order (Output 1 to TV1, Output 2 to TV2...). If you have 5 outputs, the output configuration should be 2x3. Please see below as the output to the TVs should be connected(Output1 to TV1, Output2 to TV2, Output4 to TV3, Output5 to TV4). More output cards can be output3 or output6.
