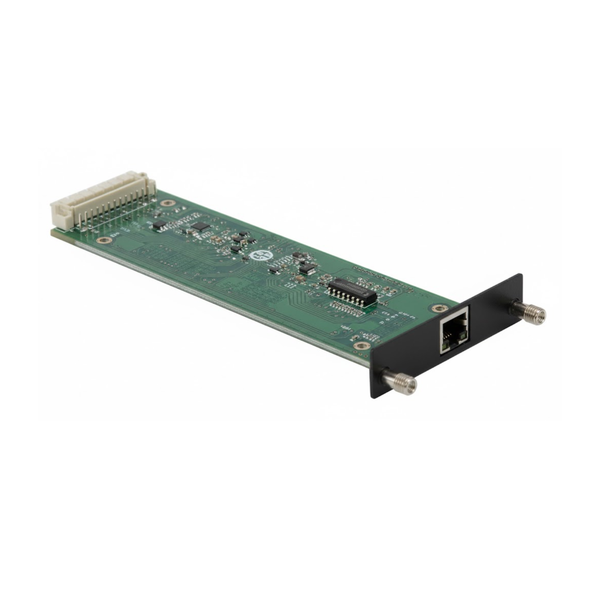

This WolfPack™ 4K/60 HDMI Output Card is a 4K/60 4:4:4 compliant, 1-port output card designed to work with our WolfPack Matrix Switchers. The 4K/60 HDMI Output Card provides HDR10 resolutions including 4K/60, 4k/30, 3D and up to 48-bit Deep Color at 1080p/60. The 4K/60 HDMI Output Card is used with the matrix for true plug-and- play cross-point switching from any HDMI input to any combination of HDMI outputs. The card has a 3.5mm connector for an de-embedded stereo audio output & when used with its companion 4K/60 HDMI Input Card with a similar 3.5mm input connector can send the stereo audio from that card through the matrix. This L/R audio de-embedder will allow the use of outboard audio amplifiers.The 4K/60 4:4:4 HDMI Output Card allows you to display video with separate audio coming from another audio source as it supports embedding the audio on the HDMI input cards 3.5mm audio connector & then de-embedding the audio on the HDMI output cards 3.5mm audio. By having 1-port slide in cards the matrix is very reliable as in the unlikely event there is a loss of signal you just replace the card with a spare you have purchased or order another from us. The matrix doesn't have to be sent to us for a repair.
This 4K/60 HDMI Output Card is used in our HDTV Supply line of 9x9, 18x18 & 36x36 modular matrix switchers that feature one-slot card cages using 9, 18 or 36 of these one-port HDMI Output cards depending upon your system needs. It supports 18.2 Gbps of data throughput & a 600 MHz TMDS Clock frequency which is the highest specified under the HDMI 2.0 standard.
4K/60 HDMI Output Card Features:
- Supports one (1) HDMI Output, version HDMI 2.0 and all past versions
- Supports 4K/60 4:4:4 resolutions @ 18GBPS
- Supports HDR10
- Also, supported resolutions: 4Kx2K@30 Hz 4:2:0, 1920x1200, 1080p 4:4:4 & 3D
- Supports 3.5mm de-embedded stereo audio
- No latency
- Controllable via the matrices front panel buttons, RS232, WEB GUI and iOS/Android App
- Closed Caption (CC) Pass-through
- High bandwidth up to 10.2 Gbps
- Built-in HDCP 2.2 internal management
- Built-in EDID & DDC management
- Supports Lip-Sync pass-through
- Supports up to 48-bit Deep Color & x.v color
- Supports 7.1 Atmos, Dolby Vision, Dolby Digital, True HD and DTS-HD audio
- Plug & play
Why not buy this 4K/60 HDMI Output Card today?
4K/60 HDMI Output Card Specs:
- Output: 1 - HDMI 2.2 (Female HDMI); T.M.D.S. 2.9 V/3.3 V and 75 ohm
- Output signal: DVI-D full digital or HDMI
- Gain: 0 dB
- Bandwidth: 18 Gbps
- Resolution range: Up to 4K/60, 1920 x 1200 or 1080P at 60Hz
- 3D: Yes
- HDCP: 2.2 management
- Switching speed: 200ns (Max.)
- Max. time-delay: 5ns (plus or minus 1ns)
- Crosstalk: <-50 dB at 5MHz
- DVI/HDMI standards: DVI 1.1/HDMI 2.0 and supports EDID and DDC
Why not buy this 4K/60 HDMI Output Card today?
Operation - EDID Setup for the 4K30 (HDMI & HDBaseT) Input Card
Operation - For All Available Cards DIP Switcher
Operation - POC DIP Switch on the HDBaseT Card
Operation - Tips for the HDbaseT products POC Function Set Up Steps
Specifications For All Modular Matrices Single Port Cards
Comparison Spreadsheet For All Modular Matrices Single Port Cards
Documents for the WolfPack 9x9, 18x18 & 36x36
EDID Learning Instruction for the Cards
Why not buy this 4K/60 HDMI Output Card today?
