HDTV Supplys WolfPackGold™ 1080p 60 Hz 32x40 HDMI Matrix Switcher is an integrated HDMI video and HDMI audio modular HDMI Matrix Switcher that allows any input to be routed to any output, or the same input to be routed to all outputs, or any combination using 8 - 4-port HDMI inputs and 10 - 4-port HDMI output cards. It is housed in a 48x48 chassis which allows you to grow in the field by adding new cards.

The core of the WolfPackGold 1080p 32x40 HDMI Matrix Switcher consists of a 1080p 48x48 Modular Matrix chassis (16U) and its highly configurable backplane that supports 12 - 4-port 1080p HDMI inputs and 12 - 4-port 1080p HDMI output cards. You can control the switch via its free iOS or Android apps, a 7" Color Touch Screen from the front panel, a WEB GUI control, or the 2-RS-232 / TCPIP ports on the back. Our Modular WolfPack Modular Matrix Systems have dual RS232 & LAN ports on the back of the chassis that can be used (1) as a back-up control if one malfunctions and (2) you can use the 2nd-RS232/LAN port to control the Matrix Switcher at the same time as the first. The matrix also has optional Control4, RTI, Crestron & Elan drivers.

By having 4-port slide in cards the matrix is exceptionally reliable as in the unlikely even there is a loss of signal you just replace the card with a spare you have purchased or order another from us. The complete matrix doesn't have to be sent to us for repair.

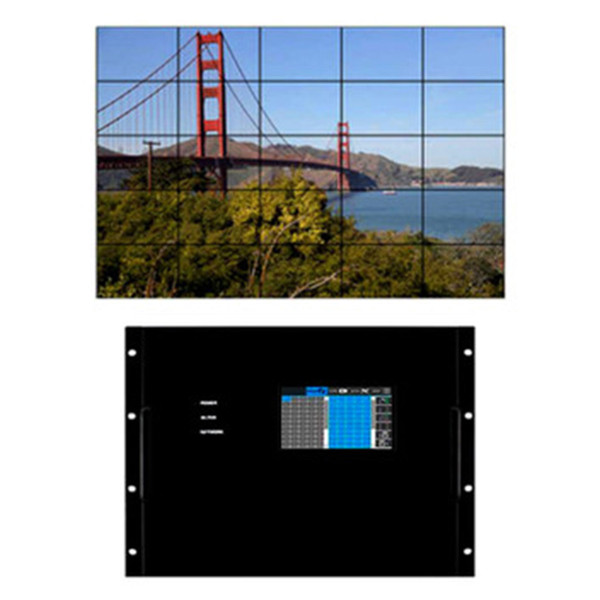

Internal Video Wall Processing: Not only is this product an HDMI matrix switch, but it is also designed to support multiple video wall configurations. Your tablet is used to create video walls and the number of video walls is only limited by the number of outputs that you have. It supports Drag-N-Drop Video Wall Processing & setups. To set up video walls all you need to use is a PC so you can then change the sources using a tablet. See the examples below:

Example 1: Create a 2x2 Video Wall using 4-TVs with either one large picture or 4-individual pictures at one, or multiple locations.

Example 2: Create a 3x3 Video Wall using 9-TVs with either one large picture or 9-individual pictures at one, or multiple places.

Example 3: Create a 4x4 Video Wall using 16-TVs with either one large picture or 16-individual pictures at one, or multiple places.

Example 4: Create a 5x5 Video Wall using 25-TVs with either one large picture or 25-individual pictures at one, or multiple places.

Separate Embedded Audio In and De-embedded Audio Out: The matrix allows you to display video with separate audio coming from another audio source as it supports embedding the audio on the input cards 3.5mm audio connector and then de-embedding the audio on the output cards 3.5mm audio.

Seamless Switching: Our WolfPackGold Modular HDMI Matrix Router can be configured with instantaneous video switching which delivers full 1080p video powered by our WolfPack engine implemented at each output port. It switches instantly taking only 100ms or 0.1 seconds. The Seamless Switching engine processes HDMI signals by executing EDID hops and HDCP handshakes simultaneously at both the source input and the display outputs and scaling inputs for the best output resolution while setting the output clock timing and using a frame buffer to retain the input signal information for the fastest output.

Hardware Scaling via DIP Switches on both in and out cards: The 8-pin DIP switch on the cards are for the up/down manual scaling of resolutions. Each HDMI card has an 8-pin DIP switch to select multiple resolution settings to conform to your HDMI source devices and the HDMI destination devices.

Reasons that set our WolfPackGold™ 1080p 32x40 HDMI Modular Matrix Switchers apart from others:

1. Supports up to 1080p 60 Hz
2. Built-in Video Wall processing
3. 4-Port 1080p 60 Hz cards are HDMI 1.4, DVI 1.1 & HDCP 1.4 compliant
4. 40 - Preset scenes that can be Saved and Recalled
5. Control via a free iPad App, Android App, Web Browser (WEB GUI), LAN, Dual RS232 & 7" Color Touchscreen
6. Seamless 100ms Fast Switching
7. No latency
8. Separate audio
9. Scaling on all cards
10. 2-Power Supplys if a problem occurs
11. 2-Year Advance Replace Warranty
12. Free Lifetime Telephone, CHAT, TEXT, and Email Tech Support

WolfPackGold™ 1080p 32x40 HDMI Matrix Switch Configuration:

• 1 - 48-card in and 48 card out card cage (16U)
• 8 - 4-port input cards = 32 HDMI inputs
• 10 - 4-port HDMI cards = 40-HDMI outputs

These Modular HDMI Matrix Routers support long haul transmission, maintain power reliability in the event of failure and offer the best flexible solutions for an AV system deployment. Our Modular HDMI Matrix Routers also can support high-resolution HDMI sources routed to HDMI displays, monitors, projectors, or audio receivers, etc. The EDID can be selected between different modes or copied from the attached displays.

WolfPackGold 1080p 32x40 HDMI Matrix Switcher Feature:

• 48 input and 48 outputs Card Cage Chassis (16U)
• 1080p 60 Hz HDMI Compliant
• HDMI 1.4 and HDCP 1.4 compliant
• Input HDMI cable distance: ~12 feet AWG24 HDMI high speed cables
• Output HDMI cable distance: ~50 feet AWG24 HDMI high speed cables
• Flexible card type design supporting 48-HDMI inputs and 48-HDMI outputs
• Advanced EDID management for rapid integration of sources and displays
• 7" Color Front-panel Touchscreen for local switching
• IP controlled via built-in web server and LAN
• RS-232 Serial interface for remote control via an automation control system
• Support resolutions with several resolutions can be chosen and used
• Hot-pluggable
• Uses a dual control system
• Control via Web / RS232 and Touchscreen & more (no remote control)
• Rack-mountable

The heart of the WolfPackGold 32x40 HDMI Matrix Switcher is the WolfPack chassis backplane which allows customization of the configuration for input and output cards to match every need of the system and application. The matrix supports hot plugs, and you can change the cards while the equipment is working.
