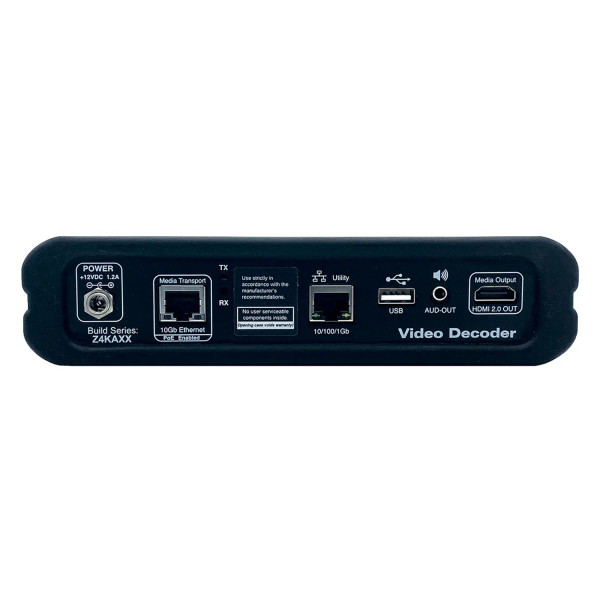

This ZeeVee Z4KDECC3 ZyPer4K Decoder Copper is an HDMI 2.0 Decoder that is part of the ZyPer4k product line. Video compatible with any ZyPer4K Encoder.
AC power supply is included but other cables are not.
ZeeVee Z4KDECC3 ZyPer4K Decoder Copper Features:
- Uncompressed 4K
- Multiview
- Video Wall
- HDMI 2.0
- HDCP 2.2
- AES Encryption
Why not buy this ZeeVee Z4KDECC3 ZyPer4K Decoder Copper from HDTV Supply today?
ZeeVee Z4KDECC3 ZyPer4K Decoder Copper Specifications:
- Video: HDMI 2.0 with HDCP pass-through: HDMI 2.0 type A
- Audio (Digital): Encoded audio formats and LPCM up to 8 channels: HDMI 2.0 type A
- Audio (Analog): Unbalanced 2-Channel Stereo (In or Out): 3.5mm stereo mini jack
- USB: Input/Output ports: 3.5mm mini jacks
- RS-232: Full Duplex up to 115.2 kbps: 9–pin D–sub
- Ethernet: 10 Gb for Video/Audio/Control with 1 Gb Utility: 10 Gb RJ45 port and 1 Gb RJ45 port
- Formats:
- Supports all major VESA resolutions and variations including full HDMI 2.0 support
- VGA: 640x480 (4:3)
- SXGA: 1280x1024 (5:4)
- 1080p/i: 1920x1080 (16:9)
- SVGA: 800x600 (4:3)
- WXGA: 1366x768 (16:9)
- QXGA: 2048x1536 (4:3)
- XGA: 1024x768 (4:3)
- SXGA+: 1440x1080 (4:3)
- Ultra HD: 3840x2160 (16:9)
- HDTV: 1280x720 (16:9)
- UXGA: 1600x1200 (4:3)
- 4K: 4096x2160 (17:9)
- Custom resolutions are supported at pixel clock rates up to 600 MHz
- Video Other: Color depth: 24 bit, 30 bit, 36 bit, 48 bit
- Video Wall and Multiview:
- Video Wall up to 15x15
- Multiview with up to 19 sources
- Signal Transmission Distance: Cat6a: 100m
- Copy Protection/Security:
- HDCP 2.2
- AES–128 Encryption
- Power Input (locking connector): 12V, 2A
- Power: Approximately 15 watts
- Temperature:
- Operating temperature: 32°F to 104°F (0°C to +40°C)
- Storage temperature: –4°F to +176°F (–20°C to +80°C)
- Humidity: Operating/Storage: 20% to 90% (Non–Condensing)
- Dimensions (L x W x H) / Weight:
- 5.7 in (144mm) x 2.5 in (175mm) x 1.7 in (43mm)
- Weight: 31 oz (880 g)
