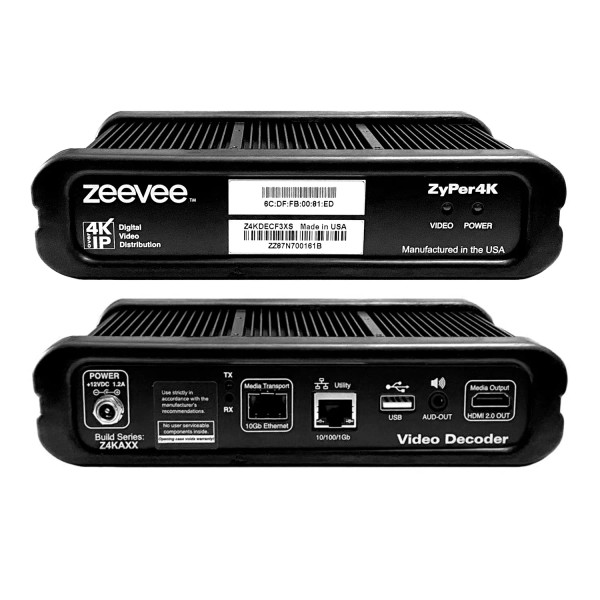

This ZeeVee Z4KDECF3XS ZyPer4K-XS Decoder Fiber is an HDMI 2.0 AVoIP Decoder that is part of the ZyPer4k product line.
It supports IP streaming over 10Gbit/fiber up to 4KP60 4:4:4 resolution with embedded audio and HDCP 2.3 encryption at zero−frame latency.
USB supported between ZyPer4K−XS/XR devices. Video compatible with any ZyPer4K AVoIP Encoder.
AC power supply is included but other cables are not.
ZeeVee Z4KDECF3XS ZyPer4K-XS Decoder Fiber Features:
- Uncompressed 4K
- Multiview
- Video Wall
- HDMI 2.0
- HDCP 2.2
- AES Encryption
- 802.1x compatible
Why not buy this ZeeVee Z4KDECF3XS ZyPer4K-XS Decoder Fiber from HDTV Supply today?
ZeeVee Z4KDECF3XS ZyPer4K-XS Decoder Fiber Specifications:
- Video: HDMI 2.0 with HDCP pass–through
- Audio (Digital): Encoded audio formats and linear PCM up to 8 channels
- Audio (Analog): Unbalanced Stereo (Output)
- USB: Single USB 2.0 (USB — A connector)
- Ethernet: 10 Gb for Video/Audio/Control with 1 Gb Utility
- Formats:
- Supports all major VESA resolutions and variations including full HDMI 2.0 support
- VGA: 640x480 (4:3)
- SXGA: 1280x1024 (5:4)
- 1080p/i: 1920x1080 (16:9)
- SVGA: 800x600 (4:3)
- WXGA: 1366x768 (16:9)
- QXGA: 2048x1536 (4:3)
- XGA: 1024x768 (4:3)
- SXGA+: 1440x1080 (4:3)
- Ultra HD: 3840x2160 (16:9)
- HDTV: 1280x720 (16:9)
- UXGA: 1600x1200 (4:3)
- 4K: 4096x2160 (17:9)
- Custom resolutions are supported at pixel clock rates up to 600 MHz
- Video Other: Color depth: 24 bit, 30 bit, 36 bit, 48 bit
- Video Wall and Multiview:
- Video Wall up to 15x15
- Multiview with up to 19 sources
- Product Dimension, Weight: 7.8 in (199mm) x 4.6 in (116mm) x 1.9 in (47mm), 30.0 oz (850g)
- Signal Transmission Distance: Multimode fiber optic line: 300m | single mode fiber optic line: 10km
- Copy Protection/Security:
- HDCP 2.2
- AES–128 Encryption
- 802.1X compatible
- Power Input (locking connector): 12V DC
- Power: Approximately 8 watts
- Temperature:
- Operating temperature: 32 F to 104 F (0 C to +40 C)
- Storage temperature: –4 F to +176 F (–20 C to +80 C)
- Humidity: Operating/Storage: 20% to 90% (Non–Condensing)
- Accessories:
- Z4KSFP10G85-3M: ZyPer4K, Fiber Optic Transceiver, SFP+ 10Gbps 850nm MMF 300m
- Z4KSFP10G31-10K: ZyPer4K, Fiber Optic Transceiver, SFP+ 10Gbps 1310nm SMF 10km
- Z4KPWRCTR12: ZyPer 12V Power Center for use with up to 8 ZyPer Encoder/Decoders (all models). 1 RU. Includes rack ears, 8 3–foot locking 12V DC power cables, AC power cord
- Z4KRACKXS: ZyPer4K–XS Rack Mount Kit. Holds up to 8 ZyPer4K–XS Encoders/Decoders in standard 6RU space. Includes rack assembly and 8 carrier units
- Z4KXSBP: ZyPer4K–XS Rack Mount Filler Plate Standard is used to cover unused slots in a ZyPer4K–XS Rack Mount Kit
- Z4KVESABRK: ZyPer4K VESA Bracket is a custom wall/desk/display mount bracket for ZyPer4K. Supports standard VESA parameters for mounting directly to rear of a display. 100x100, 100x200 and 200x200 VESA hole mounts are supported
