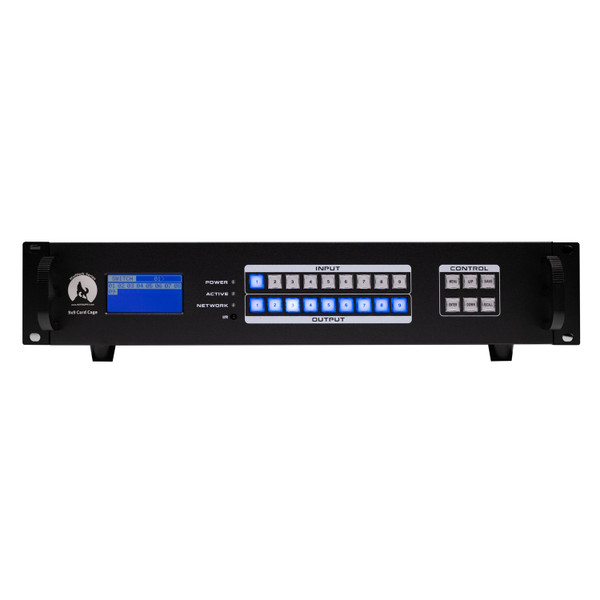

Build Your Own WolfPack Modular HDMI 2.0 Matrix Switcher with HDBaseT 3.0
The WolfPack Modular HDMI 2.0 Matrix Switcher with HDBaseT 3.0 is a fully configurable, build-your-own 4K video distribution system. Start with the modular chassis, then mix and match up to nine HDMI 2.0 input cards and up to nine HDBaseT 3.0 output cards to create any configuration — from a compact 2x8 up to a full 9x9 matrix. Because every input and output lives on its own hot-swappable card, you only pay for the ports you need today and can expand the system later by simply adding cards.
Designed for professional AV integrators, houses of worship, command-and-control rooms, sports bars, classrooms, casinos, and digital signage networks, this platform routes any 4K HDMI 2.0 source to any display and extends that signal over a single Cat6A/Cat7 cable using HDBaseT 3.0 — reaching remote displays up to 40 meters or 100 meters away, depending on the output card and receiver you choose.
Why Choose a Build-Your-Own Modular Matrix?
- Configure exactly what you need. Choose your input and output count instead of paying for a fixed port layout.
- Future-proof and expandable. Add cards as your installation grows — no need to replace the chassis.
- Two distance options. Select 40 m output cards for in-room and near-zone displays, or 100 m output cards for long cable runs across a building.
- Advanced signal handling. Higher-tier output cards add audio de-embedding and USB 2.0 transmission for KVM and interactive displays.
- One system, every room. Distribute multiple 4K sources to multiple displays from a single rack-mounted unit.
Key Features
- Modular chassis supporting up to 9 HDMI 2.0 input cards and 9 HDBaseT 3.0 output cards (up to a 9x9 matrix)
- 4K60 HDMI 2.0 video with HDCP 2.3 support
- HDBaseT 3.0 long-distance extension over a single Cat6A/Cat7 cable
- Two output card options: up to 40 m (4K60 4:2:0) or up to 100 m (4K60 4:4:4)
- PoC (Power over Cable) — receivers can be powered from the matrix, no local power supply required
- Bi-directional RS232 and IR control pass-through
- Audio de-embedding and USB 2.0 support on the 100 m output card
- Hot-swappable, rack-mountable design for easy service and expansion
- Any-input-to-any-output routing with flexible control (front panel, IR, RS-232, TCP/IP, web GUI)
Output Card Options
| Specification | Output Card 1 (40 m) | Output Card 2 (100 m) |
|---|---|---|
| HDBaseT version | HDBaseT (standard) | HDBaseT 3.0 |
| Max distance | Up to 40 m / 130 ft | Up to 100 m / 328 ft |
| Max resolution at distance | 4K60 4:2:0 | 4K60 4:4:4 |
| Cable type | Single Cat6/Cat7 | Cat6A / Cat7 |
| Control | RS232, bi-directional IR | Bi-directional IR / RS232 |
| Audio de-embedding | — | Yes |
| USB 2.0 transmission | — | Yes (synchronous) |
| PoC (Power over Cable) | Yes (powers receiver) | Yes (receiver needs no power) |
| Seamless switching | No | No |
| Receiver compatibility | Works with any WolfPack HDBaseT receiver | Pairs with HDBaseT 3.0 receiver |
HDBaseT 3.0 Receiver Options
Each HDBaseT output requires a matching receiver at the display location. Two receivers are available:
| Specification | Receiver 1 (40 m) | Receiver 2 (100 m) |
|---|---|---|
| Technology | HDBaseT 3.0 | HDBaseT 3.0 |
| Max distance | 40 m over Cat6A (4K60 4:4:4) | 100 m over Cat6A (4K60 4:4:4) |
| HDMI / HDCP | HDMI 2.0, HDCP 2.3 | HDMI 2.0, HDCP 2.3 |
| Control | Simultaneous RS232 + IR | Simultaneous RS232 + IR |
| PoC (Power over Cable) | Yes, with on/off power switch | Yes, with on/off power switch |
| TX / RX mode | DIP-switch selectable; HDMI loop-out in transmitter mode | DIP-switch selectable; HDMI loop-out in transmitter mode |
Note: Both receivers feature a DIP switch to select between transmitter and receiver mode. When set as a transmitter, the unit supports one HDMI loop-out, adding flexible deployment options.
How to Build Your WolfPack Matrix
- Choose your chassis — the modular frame is the foundation of your custom matrix.
- Add HDMI 2.0 input cards — one per source, up to nine.
- Add HDBaseT 3.0 output cards — choose the 40 m or 100 m card per display, up to nine.
- Pair each output with the matching receiver — Receiver 1 for 40 m runs, Receiver 2 for 100 m runs.
- Power on and route — send any input to any output instantly.
Not sure which configuration is right? Our AV specialists will help you spec the perfect build before you order.
Common Applications
Conference rooms and boardrooms, digital signage, sports bars and restaurants, houses of worship, classrooms and lecture halls, control rooms, casinos, retail environments, and any installation that distributes multiple 4K sources to multiple displays across distance.
Frequently Asked Questions
What is the WolfPack Modular HDMI 2.0 Matrix Switcher with HDBaseT 3.0?
It is a build-your-own, chassis-based 4K matrix switcher that accepts up to nine HDMI 2.0 input cards and up to nine HDBaseT 3.0 output cards, allowing you to configure any matrix size from 2x8 up to 9x9.
How far can the HDBaseT 3.0 outputs send 4K video?
It depends on the output card and receiver. The 40 m output card and Receiver 1 extend 4K60 video up to 40 meters (130 ft). The 100 m output card and Receiver 2 extend 4K60 4:4:4 video up to 100 meters (328 ft) over Cat6A or Cat7 cable.
What is the difference between the two output cards?
Output Card 1 supports up to 40 m at 4K60 4:2:0 with RS232 and bi-directional IR. Output Card 2 supports up to 100 m at 4K60 4:4:4 and adds audio de-embedding and USB 2.0 synchronous transmission, making it ideal for longer runs and interactive or KVM applications.
Do the HDBaseT receivers need their own power supply?
No. Both receivers support PoC (Power over Cable), so they can be powered directly from the matrix over the same cable that carries the video — no local power supply required.
Does this matrix support 4K and HDCP?
Yes. It supports HDMI 2.0 4K60 video and HDCP 2.3 throughout the signal path.
Can I expand the matrix after purchase?
Yes. Because the system is modular with hot-swappable cards, you can add input and output cards at any time without replacing the chassis.
What cable should I use?
Use Cat6A or Cat7 for best results, especially for the 100 m output card and receiver running 4K60 4:4:4.
Backed by WolfPack Support
Every WolfPack modular matrix switcher is backed by free lifetime technical support and a satisfaction guarantee. If you need help choosing the right combination of input cards, output cards, and receivers for your project, our AV experts are ready to assist.
