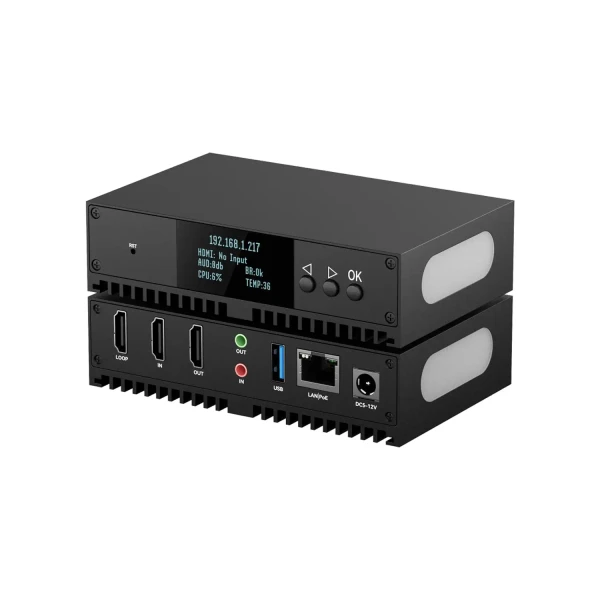

This HDTV Supply WolfPack 4K 30 HDMI to H.264 & H.265 Encoder is a new generation of 4K ultra HD, compact live encoder with a large, prominent Tally light.

It's robust, compact, and lightweight for the live streaming industry. A professional product for the application.

It is a cost-effective, easy-to-use, user-friendly codec with a tripod interface. The WolfPack 4K 30 HDMI to H.264 & H.265 Encoder supports USB Type-C chargers, WIFI, hotspots, and a range of innovative features.

It is a standalone live streaming device that does not require a computer.

It offers a flexible and economical solution for system integrators, streaming professionals, and OEM partners to stream high-quality video over the network.

This device comes with an HDMI zero-latency HDR video direct loopout. At the same time, it can independently stream to multiple CDNS simultaneously without a computer, with no frame loss, good image quality, and no impact on the computer gaming experience.

Supports HDCP 1.4/2.2, high bitrate, ultra-low latency, even better than USB capture cards.

The WolfPack 4K 30 HDMI to H.264 & H.265 Encoder is compact and can be easily mounted on any DSLR camera or display mount via a 1/4-20 inch spherical gimbal head or any standard tripod.

Live streaming anytime, anywhere. It can convert any existing signal source, such as a DSLR camera or PTZ camera, into a real-time, low-latency, high-quality IP video workflow that supports NDI.

The WolfPack 4K 30 HDMI to H.264 & H.265 Encoder can be locally recorded and stored while live streaming via a TF card, hard drive, USB flash drive, or NAS.

The front micro blue screen shows the current Settings and working status in real time.

The browser-based user interface allows you to set up and control the device using a computer, smartphone, or tablet via WIFI, hotspot, or local area network.

It supports a 100-meter PoE power supply and can also be powered by a USB Type-C charger or any regular DC power adapter with a voltage between 5V and 20V for DC to Type-C.

The device also has a DC output function that can provide up to 12W (12V/1A) DC power to power external devices such as PTZ cameras and displays.

In addition, its USB port can provide up to 5W (5V/1A) of power.

The all-in-one device is an encoderand be widely used in the IP-based video world.

Live video passthrough, with zero latency and HDR, best for gaming streaming, no need to worry about CPU load on your computer/console.
The encoder/decoder /NDI® comes in a small box, making it a versatile device
Standalone live streaming equipment, no need for a computer.
Hardware video encoders and decoders up to 4K30
Up to 4K60 and 1080p120Hz loop through
H.264 HP/MP/BP or H.265/HEVC MP encoding
4K HDMI input and HDMI ring out/output, supporting HDMI embedded audio
Supports HDCP 1.4/2.2
Auto-input detection Auto-resolution and format switching
Up to 50mbps bit rate, high bandwidth, for better video quality
Adaptive AAC audio for embedded audio and analog audio
Analog audio input and headphone output
Video recording and photo functionality in mp4/mov/ts format
Live video transfer to your computer, mobile phone, and iPad
Simple setup and configuration via the login-protected network interface
Full control via PC, smartphone, or iPad
Support HTTPS for secure network transmission across networks
Supports native vertical screen streaming and switching between landscape and vertical screen streaming
RTSP, SRT, RTMP(s) decoding up to 4K30
WYSIWYG OSD, text, Logo and seal image overlay, flexible and convenient
Use IP VISCA to control existing traditional PTZ cameras
In multi-camera shooting, the Tally light indicates PVW/PGM
The front end shows rich and clear work or important operational status at a glance
With standard camera tripod mounting
Supports live streaming platforms such as Bilibili, Huya, Weizan, Kuaishou, etc
Live streaming to multiple CDN platforms simultaneously with different RTMP, SRT, RTSP
Easy access via mDNS or hotspot, plug and play
Convenient and fast USB-C or PoE power supply
PoE with DC output to power other devices such as SLR, PTZ, etc.
Supports OEM/ODM

Why not buy this WolfPack 4K 30 HDMI to H.264 & H.265 Encoder today?

WolfPack 4K 30 HDMI to H.264 & H.265 Encoder Specifications

Power
- Input:
  - USB TYPE C up to 25W
  - DC adapter up to 20V 1A, 25W
  - PoE+ (802.3at), CAT5e and above
  - Power consumption: Up to approximately 10W (DC output excluded)
- Output: Up to 12V 1A DC with current limit
Video
- Video encoders: H.264 HP/MP/BP, H.265 MP
- Codec resolution*: 4K2160 P25/30, 1080 P25/30/50/60, 1080I 50/60, 720P 50/60 (for video input and output)
- Loopout passthrough*: up to 4K60, 1080p120Hz, HDR10 and Dolby
- HDCP: 1.4/2.2/2.3
- Frame rate (1080/720p): 24/25/30 FPS, 50/60 FPS
- Codec format: H.264/H.265
- Rate control: CBR/VBR
- Real-time preview: Web preview interface, HDMI loopthrough and output
- * Resolutions above 4K30 will automatically shrink for streaming
Network
- Local area network: 100/1000 MBPS gigabit
- WIFI: 802.11a/b/g/n/ac, dual-band
- Bluetooth: V5.0
- Web pages: http, https
Live
- Live input: RTSP/RTMP(S)/SRT
- Decoding: RTMP(S)/SRT/RTP/UDP/RTSP
- *SRT only for call mode
- Bit rate: Up to 50mbits/s, adjustable
- Video: mp4, mov, ts
- Rotation: 0/90/180/270° native vertical live
- Main stream: Up to 4K30
- Secondary streams: up to 720P
Audio
- Sampling: 32, 44.1, 48KHz
- Encoding mode: AAC, MP3, 16-bit
- Bit rate: 32-192 KBPS
- Channels: Dual channels, AGC
- Input: 0.7VRMS, 20Kohm
- Output: 16 ohm, 30mW
- Source: HDMI embedded, line input
Input/Output
- HDMI input: 1.4b/2.0b, RGB/YCbCr 444/422/420
- HDMI ring output: 2.0, up 4K60
- HDMI output: 1.4b, up to 4K30
Configuration
- Display: Dot matrix, COG
- Setup: Mobile phone, Pad, PC, RESTFUL
- OSD: Text, Logo, subtitles, timestamp - What you see is what you see
PTZ
- Interface: RS232/485/422 via USB dongle*
- Protocol: Pelco D/P, VISCA
Tally lights
- Tally: Automatic/manual
Software
- Firmware: Upgradable, Linux OS
Interfaces
- HDMI input: 1 x TYPE A, socket, 1.4b
- HDMI ring output: 1 x A type, socket (Mux), 1.4b
- HDMI output: 1 x A type, socket (Mux), 2.0
- Audio input: 1 x 3.5mm TRS jack
- Audio output: 1 x 3.5mm TRS jack
- Network: RJ45, Gigabit, PoE
- USB: 1 x USB, TYPE A
- Display: 1 RGB LED panel
Storage
- Interface: 1 x MicroSD/TF, USB: NAS
- Disk partition format: FAT32 up to 2T, exFAT
- * None of the storage media included
Physical Environment
- Size: 123 x 68 x 22mm
- Weight: 166g
- Color: Black aluminium
- Working temperature: 0°C - 45°C
- Storage temperature: -20°C to 60°C
- Tripod: 1/4 to 20 inches
Certification
- CE
- FCC
Accessories
- USB TYPE C PD charger
- USB TYPE C cable
- 1/4 "cold boot
- A Quick Start Guide
- *USB RS232/RS485/RS422 adapter
- * Ultra-thin USB hub
- * Accessories available, sold separately
- * All specifications are subject to change without notice.
- * Accessories may vary depending on product options.
- * The actual item may differ from what is shown in the catalogue.
